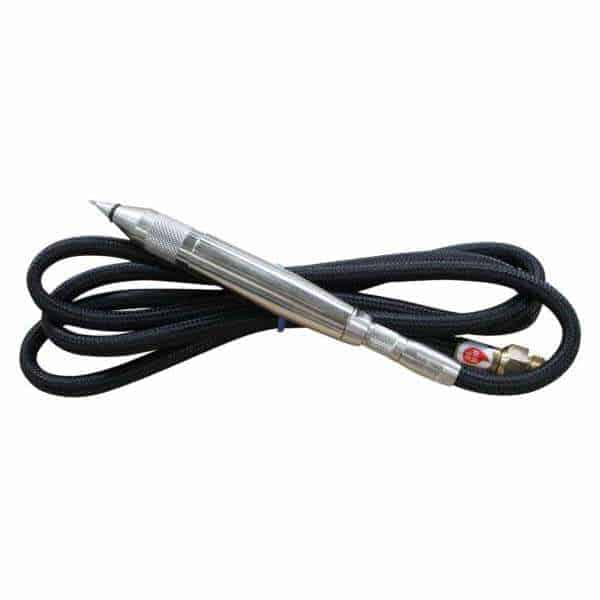

ZP209 – Air Engraving Stylus
The ZP209 Air Engraving Stylus is a precision pneumatic tool designed explicitly for detailed marking, etching, and engraving. Crafted with a lightweight, slim metal body, it’s ideal for fine work in tight spaces—perfect for technicians, artisans, and engineers who demand accuracy and control.
Key Specifications
-
Stroke Length: 1.2 mm
-
Blows Per Minute: 30,000 bpm
-
Net Weight: 0.24 kg (~0.53 lbs)
-
Length: 160 mm (~6.3 in)
-
Air Consumption: 0.05 m³/min (~1.8 CFM)
-
Operating Air Pressure: 90 psi (6.2 bar)
-
Air Inlet: ¼″ NPT/PT
-
Minimum Hose Size: 6.5 mm (~¼″)
-
Sound Pressure: 75 dB(A)
-
Vibration: 2.9 m/s²
Advantages & Benefits
-
Ultra-Fine Detailing – The fast 30,000 bpm and 1.2 mm stroke are perfect for delicate operations like engraving serial numbers, panel preparation, or surface personalization.
-
Exceptional Ergonomics – Compact length and low weight reduce operator fatigue and enhance handling precision.
-
Low Noise & Vibration – Designed with user comfort in mind—ideal for extended, detail-intensive tasks.
-
Low Air Demand – Efficient performance with modest air requirements, compatible with most shop-grade compressors.
-
Durably Built – Robust metal body ensures tool longevity in industrial settings.
Typical Applications
-
Mechanical Engraving – Marking serial numbers, barcodes, or part IDs on metal, plastic, or glass surfaces.
-
Surface Prep in Fabrication – Prepping welds and demarcating cut lines with pinpoint control.
-
Restoration & Repair — Precision removes coatings, adhesives, or paint from edges or engraved surfaces without causing damage.
Why Choose the ZP209?
The ZP209 stands out for its precision, comfort, and efficiency. With its fine stroke, minimal vibration, and lightweight design, it’s a top choice for professionals demanding controlled material removal and acceptable engraving performance without fatigue or excessive noise.
Lightweight, small diameter & metal body.
