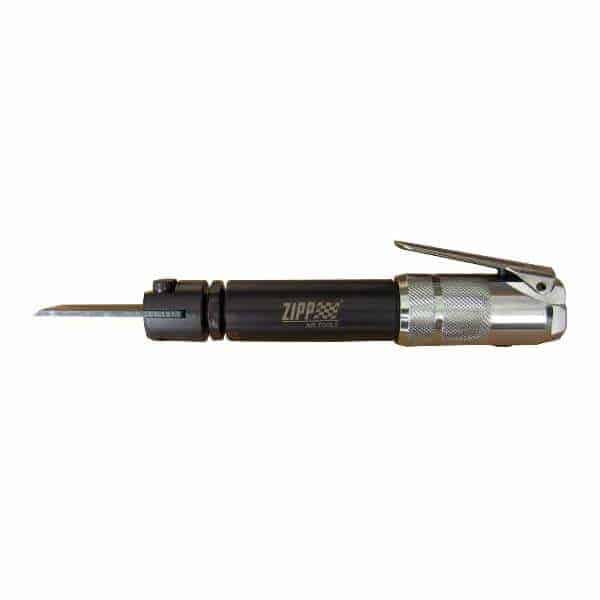

ZP232 – Air Scraper
The ZP232 Air Scraper is a precision pneumatic scraper designed to deliver high-impact, controlled surface removal ideal for automotive detailing, industrial maintenance, and sheet metal prep. Compact and ergonomic, it offers excellent control in tight or delicate work areas.
Key Specifications
-
Bore Diameter: ½ inch (12.7 mm)
-
Stroke Length: ¼ inch (6.3 mm)
-
Blows Per Minute: 4,800 bpm – fast and consistent scraping action
-
Operating Pressure: 90 psi (6.2 bar)
-
Average Air Consumption: 2.8 CFM (80 L/min)
-
Net Weight: 1.59 lbs (0.72 kg) – lightweight and easy to handle
-
Minimum Hose Size: ⅜ inch (10 mm)
-
Air Inlet: ¼-inch NPT/PT connection,
Advantages & Benefits
-
High Efficiency: 4,800 blows per minute makes quick work of adhesives, gaskets, paint, and small-scale surface buildup.
-
Precision & Control: The narrow bore and short stroke enable detailed scraping without damaging surrounding surfaces.
-
Reduced Fatigue: Lightweight design and smooth operation enhance user comfort during prolonged use.
-
Shop-Ready: Compatible with standard pneumatic supply lines, making it easy to integrate into existing tool setups.
Typical Applications
-
Automotive Bodywork – Removing gaskets, decals, adhesives, or paint residue from body panels.
-
Industrial Maintenance – Surface prep before welding, coating, or repair in machinery and metal structures.
-
Sheet Metal Fabrication – Cleaning up joints, edges, and small areas with precision without marring the surface.
Why Choose the ZP232?
Compact, powerful, and designed with precision in mind, the ZP232 Air Scraper excels in scenarios where controlled surface removal is essential. It’s the ideal tool when you need fast, clean, and accurate scraping performance in tough-to-reach or delicate areas.
Specification:
- Bore Diameter:1/2(12.7) inch(mm)
- Stroke Length: 1/4(6.3) inch(mm)
- Blows Per Min.: 4800 bpm
- Avg. Air Cons.: 2.8(80) cfm(l/min)
- Net Weight: 1.59(0.72) lbs(kgs)
- Min. Hose Size: 3/8(10) inch(mm)
- Air Inlet Size: 1/4 inch-NPT/PT

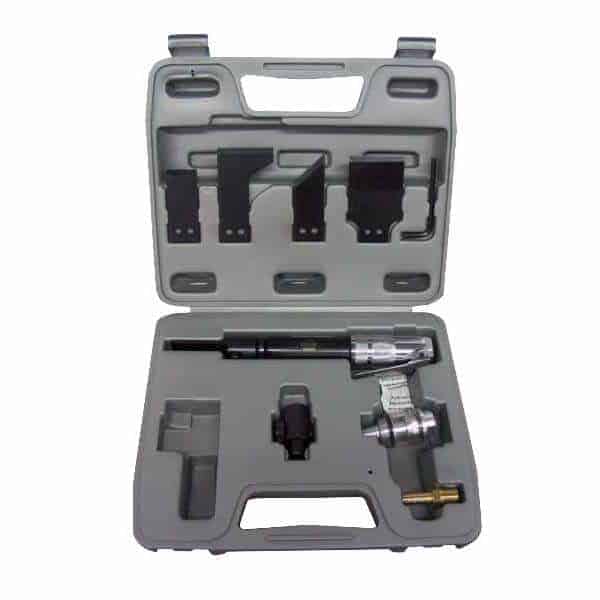

| ZP232K Air Scraper Kit | |
 |
| Model | Bore Diameter inch(mm) |
Piston Diameter inch(mm) |
Stroke Length inch(mm) |
Blows Per Min. bpm |
Avg. Air Cons. cfm(l/min) |
Net Weight lbs(kgs) |
Min. Hose Size inch(mm) |
Air Inlet Size inch-NPT/PT |
| ZAS132 | (18×14) | ─ | 15/16(24) | 2800 | 2.12(60) | 2.0(0.9) | 3/8(10) | 1/4 |
| ZCF-2 | ─ | 0.87(22) | 0.87(22) | 4000 | 8.8(250) | 2.56(1.16) | 3/8(10) | 1/4 |
| ZP232 | 1/2(12.7) | ─ | 1/4(6.3) | 4800 | 2.8(80) | 1.59(0.72) | 3/8(10) | 1/4 |
Specification(air pressure at 90psi, 6.2bar, 6.3kg/cm²)
