ZPD212 Micro Die Grinder

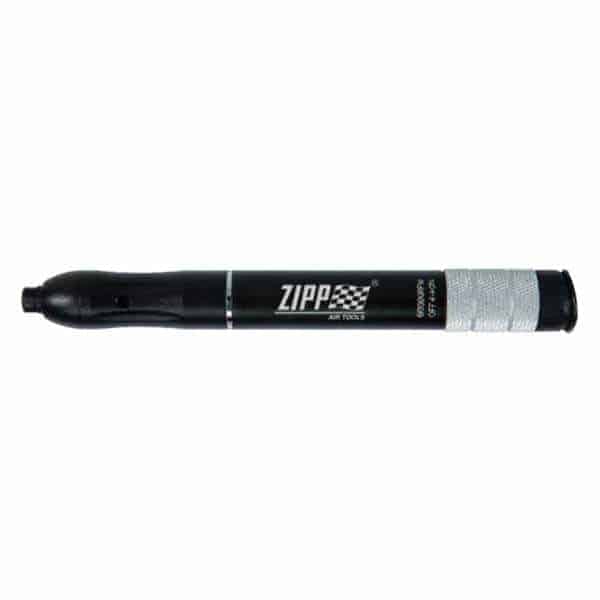

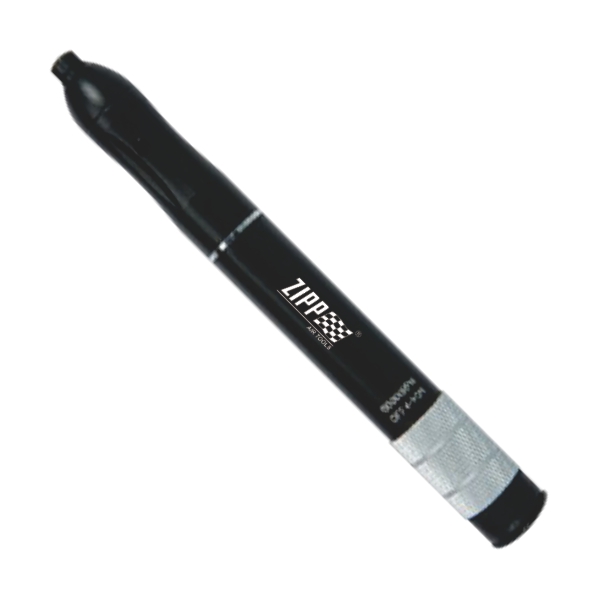

ZPD212 – Micro Die Grinder





The ZPD212 Micro Die Grinder is a high-speed, precision pneumatic tool engineered for delicate grinding, finishing, and polishing in compact spaces. With its lightweight and ergonomic design, it’s ideal for professionals in mold-making, jewelry, electronics, and general fabrication.





Specifications





• Free Speed: 60,000 RPM — delivers rapid surface material removal and fine finishing

• Collet Size: 1/8″ (3 mm) — accommodates small-diameter rotary bits for detailed work

• Air Inlet: ¼″ NPT/PT — standard setup for easy integration

• Operating Pressure: 6 kg/cm² (~90 psi)

• Air Consumption: 180 L/min (~6.3 CFM) — efficient air usage for consistent performance

• Net Weight: 0.24 kg (0.53 lbs) — feather-light for reduced operator fatigue

• Tool Diameter: 17 mm — slim profile allows easy handling in tight areas

• Overall Length: 140 mm — compact enough for precision work

• Hose Length: 1,500 mm — provides flexibility while working

• Exhaust System: Rear exhaust — keeps debris and airflow away from the user’s hand





Advantages & Benefits





• Ultra-High Speed — 60,000 RPM ensures a smooth and precise finish in minimal time.

• Compact & Lightweight — Exceptional maneuverability; ideal for intricate and prolonged tasks.

• Rear Exhaust Design — Redirects airflow for improved operator comfort and workspace cleanliness.

• Efficient Air Use — Optimized performance with moderate air demand, compatible with most compressor setups.





Applications





• Mold & Die Finishing — Perfect for exact contouring and detail work in confined areas.

• Jewelry & Model Crafting — Ideal for polishing and shaping small or delicate components.

• Electronics Work — Effective in tight panel finishing, component prep, and small-scale deburring.

• Precision Metalwork — An excellent tool for final touch-ups, cleaning, and adjusting components in tight assemblies.





Why Choose the ZPD212?





For professionals seeking a precision micro grinder with fast performance and minimal bulk, the ZPD212 Micro Die Grinder is a top-tier choice. Its ultra-lightweight design, exceptional RPM, and ergonomic layout make it invaluable for fine-detail tasks in restricted environments.

Specification:





• Free Speed: 60000 rpm
• Collet Size: 1/8(3) inch(mm)
• Air Inlet Size: 1/4 inch-NPT/PT
• Air Pressure: 6 kg(cm²)
• Air Cons.: 180 L/min
• Net Weight: 0.24 kg
• Tool Dimension: 17 mm
• Tool Length: 140 mm
• Hose Length: 1500 mm
• Exhaust System: Rear





Model	Free Speed rpm	Collet Size inch(mm)	Air Inlet Size inch-NPT/PT	Air Pressure kg(cm²)	Air Cons. l/min	Net Weight kg	Tool Dimension mm	Tool Length mm	Hose Length mm	Exhaust System
ZPD327	30000	1/4(6)	1/4	6	300	0.3	26.5	150	1500	Rear
ZPD212	60000	1/8(3)	1/4	6	180	0.24	17	140	1500	Rear
ZPD312	60000	3mm	1/4	6	180	0.24	18	125	1500	Rear
ZPD412	70000	1/8(3)	1/4	6	180	0.13	17	140	1500	Rear
ZPD322	22000	3mm	1/4	6	240	0.345	–	140	1500	Rear
ZPD323	22000	3mm	1/4	6	240	0.355	–	140	1500	Rear
