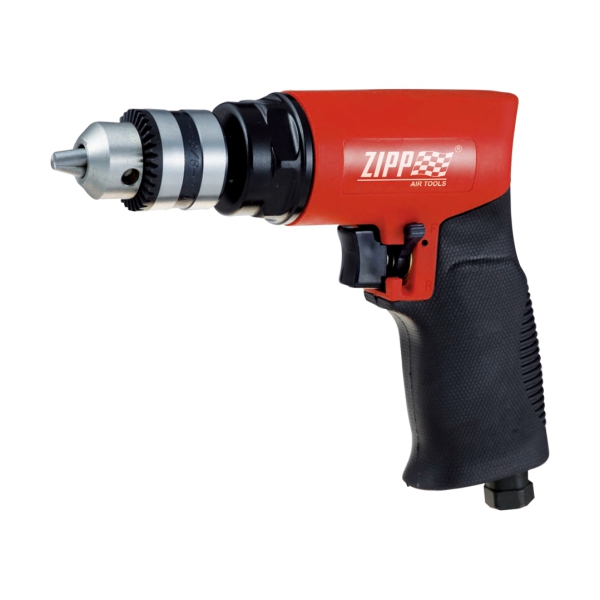

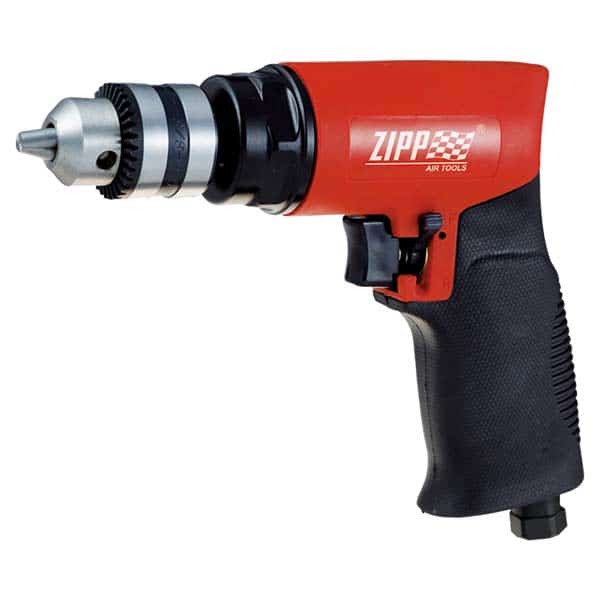

ZRD324P 3/8 inch Air Reversible Drill
- The tools feature an innovative and ergonomic composite housing and textured rubber grip that insulates against cold temperature and vibration and provides great comfort and controllablilty.
- The ZRD324 Air Drill features one-piece gear box structure that runs smoother and lasts longer.
- Advanced Composite Housing
- D or DP series featuring a low speed feathering control trigger
- Ergonomic Cushion-Grip Handle
Gear box potions :
- One-piece gearbox for heavy duty application.
- Combination gearbox for general application.
Specification:
- Chuck Size: 3/8(10) inch(mm)
- Spindle Thread: 3/8″-24
- Net Weight: 2(0.9) lbs(kgs)
- Length: 7.6(195) in.(mm)
- Free Speed: 1800 rpm
- Air Inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Avg. Air Cons.: 4 cfm
| Model | Chuck Size inch(mm) | Spindle Thread | Net Weight lbs(kgs) | Length inch(mm) | rpm | Air Inlet inch | MinchHose Size inch(mm) | Avg. Air Cons. cfm |
| ZD322 | 3/8(10) | 3/8″-24 | 2(0.9) | 7.6(195) | 2600 | 1/4 | 3/8(10) | 3.7 |
| ZD322P | 3/8(10) | 3/8″-24 | 2(0.9) | 7.6(195) | 2600 | 1/4 | 3/8(10) | 3.7 |
| ZD323 | 1/2(13) | 3/8″-24 | 2.6(1.2) | 9(230) | 900 | 1/4 | 3/8(10) | 3.7 |
| ZD323P | 1/2(13) | 3/8″-24 | 2.6(1.2) | 9(230) | 900 | 1/4 | 3/8(10) | 3.7 |
| ZRD324 | 3/8(10) | 3/8″-24 | 2(0.9) | 7.6(195) | 1800 | 1/4 | 3/8(10) | 4 |
| ZRD324P | 3/8(10) | 3/8″-24 | 2(0.9) | 7.6(195) | 1800 | 1/4 | 3/8(10) | 4 |
| ZRD324D | 3/8(10) | 3/8″-24 | 2(0.9) | 7.6(195) | 1800 | 1/4 | 3/8(10) | 4 |
| ZRD324PD | 3/8(10) | 3/8″-24 | 2(0.9) | 7.6(195) | 1800 | 1/4 | 3/8(10) | 4 |
