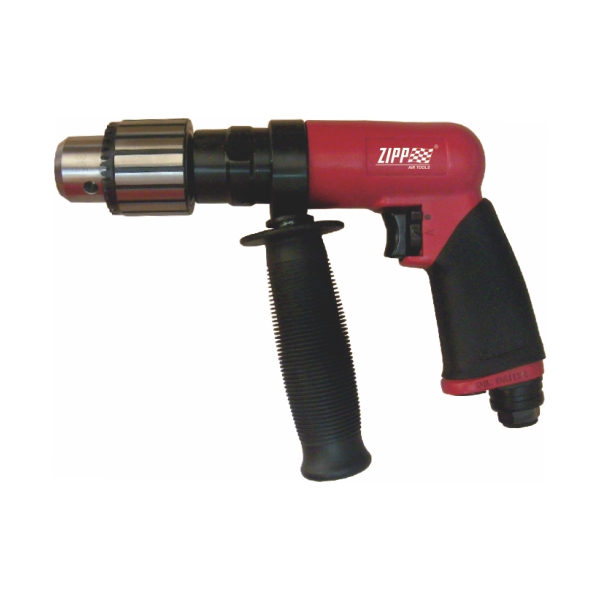

ZRD400 1/2 inch Industrial Air Reversible Drill
Specification:
- Capacity: 1/2(13) inch(mm)
- Spindle Size: 3/8″-24
- Free Speed: 410 rpm
- Avg. Air Cons: 5(141) cfm(l/min)
- Net Weight: 3.8(1.7) lbs(kgs)
- Overall Length: 230 mm
- Air Inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
| Model | Capacity inch(mm) |
Spindle Size inch |
Free Speed rpm |
Avg. Air Cons cfm(l/min) |
Net Weight lbs(kgs) |
Overall Length mm |
Air Inlet Size inch-NPT/PT |
Minch Hose Size inch(mm) |
| ZRD220 | 1/2(13) | 3/8″-24 | 220 | 5(141) | 3.8(1.7) | 230 | 1/4 | 3/8(10) |
| ZRD400 | 1/2(13) | 3/8″-24 | 410 | 5(141) | 3.8(1.7) | 230 | 1/4 | 3/8(10) |
| ZRD700 | 1/2(13) | 3/8″-24 | 700 | 5(141) | 3.8(1.7) | 230 | 1/4 | 3/8(10) |
| ZD300 | 1/2(13) | 3/8″-24 | 300 | 5(141) | 3.8(1.7) | 230 | 1/4 | 3/8(10) |
| ZD600 | 1/2(13) | 3/8″-24 | 600 | 5(141) | 3.8(1.7) | 230 | 1/4 | 3/8(10) |
| ZD900 | 1/2(13) | 3/8″-24 | 900 | 5(141) | 3.8(1.7) | 230 | 1/4 | 3/8(10) |
| ZRD1600 | 3/8(10) | 3/8″-24 | 1600 | 5(141) | 2.5(1.1) | 185 | 1/4 | 3/8(10) |
| ZRD2400 | 3/8(10) | 3/8″-24 | 2400 | 5(141) | 2.5(1.1) | 165 | 1/4 | 3/8(10) |
| ZD3600 | 3/8(10) | 3/8″-24 | 3500 | 5(141) | 2.5(1.1) | 185 | 1/4 | 3/8(10) |
| ZRD3600C | 3/8(10) | 3/8″-24 | 1500 | 5(141) | 2.2(1) | 175 | 1/4 | 3/8(10) |
| ZRD3625C | 1/2(13) | 3/8″-24 | 220 | 5(141) | 3.3(1.5) | 185 | 1/4 | 3/8(10) |
| ZRD3645C | 1/2(13) | 3/8″-24 | 500 | 5(141) | 3.3(1.5) | 185 | 1/4 | 3/8(10) |
