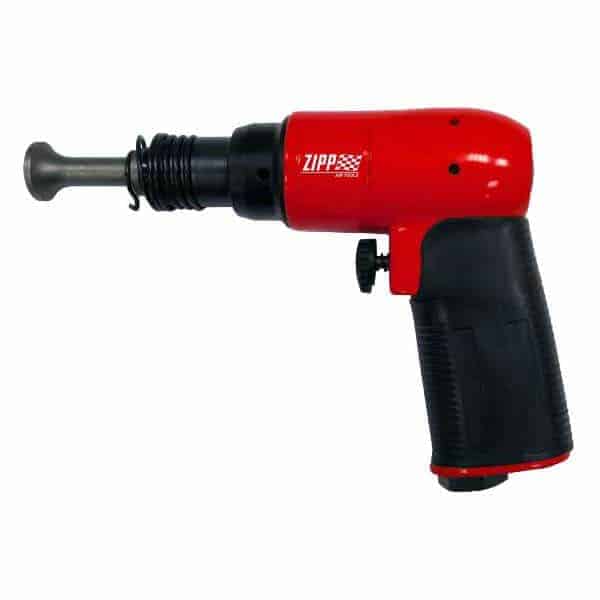

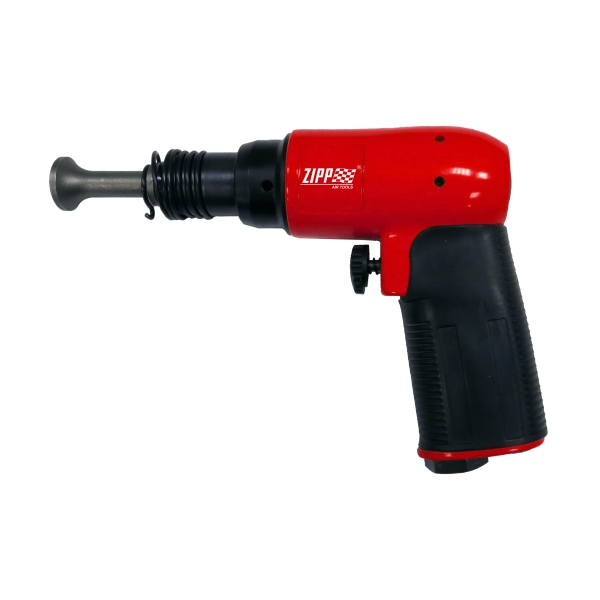

ZRH-04 Shock Reduced Air Riveting Hammer

ZRH-04 Shock Reduced Air Riveting Hammer

The ZRH-04 Shock Reduced Air Riveting Hammer is engineered for industrial, automotive, and aerospace riveting applications, providing powerful impact force while significantly reducing vibration. Its shock-reduction system ensures operator safety and comfort, allowing for extended use with minimal fatigue. Ideal for precision riveting, metal fabrication, and assembly tasks, the ZRH-04 delivers consistent, reliable results in demanding work environments.

SKU: ZRH-04 Category: Tags: ,

ZRH-04 – Shock Reduced Air Riveting Hammer





High-Performance Riveting with Minimal Vibration





The ZRH-04 Shock Reduced Air Riveting Hammer is engineered for industrial, automotive, and aerospace riveting applications, providing powerful impact force while significantly reducing vibration. Its shock-reduction system ensures operator safety and comfort, allowing for extended use with minimal fatigue. Ideal for precision riveting, metal fabrication, and assembly tasks, the ZRH-04 delivers consistent, reliable results in demanding work environments.





Key Features





  • Advanced Shock Reduction – Minimizes hand-arm vibration for safer operation.

  • High-Impact Efficiency – Consistent riveting performance with every strike.

  • Ergonomic Design – Provides a comfortable grip for extended use, reducing fatigue.

  • Durable Construction – Built to withstand heavy-duty industrial use.

  • Precision Control – Balanced and responsive design for accurate riveting.





Technical Specifications





  • Model: ZRH-04

  • Type: Shock-Reduced Air Riveting Hammer

  • Impact Frequency: High-speed pneumatic operation

  • Handle Type: Ergonomic shock-reducing grip

  • Weight: Lightweight for enhanced maneuverability

  • Air Pressure Requirement: Standard industrial air supply

  • Applications: Aerospace, automotive, and industrial riveting operations





Benefits





Enhanced Operator Safety – Reduces risk of vibration-related injuries.
Improved Accuracy – Precision control for consistent rivet placement.
Durable and Reliable – Engineered for long-lasting industrial performance.
Reduced Fatigue – Shock absorption technology enhances comfort.
Versatile Use – Suitable for sheet metal, structural, and aerospace riveting.





Applications





  • Aerospace Assembly & Maintenance – Structural and panel riveting.

  • Automotive Manufacturing & Repair – Bodywork, chassis, and sheet metal riveting.

  • Industrial Fabrication – Metal assembly and heavy-duty riveting.

  • Portable On-Site Maintenance – Efficient and reliable for field work.





Why Choose the ZRH-04?





The ZRH-04 Shock-Reduced Air Riveting Hammer combines power, precision, and operator comfort, making it an essential tool for professional riveting tasks. Its shock-absorbing design ensures consistent results while protecting the operator, even during long work sessions.

Features





  • The new ZRH riveting hammer is designed to minimize the vibration while maintaining high tool performance. An adequate air cushion behind the hammer piston reduces vibration.
  • Parts are interchangeable with the RRH series.
  • Streamline profile & adjustable power.
  • Equipped with a universal swivel air inlet joint for the best maneuverability.





Specification:





  • Chisel Shank Opening: 0.401 inch
  • Bore Diameter: 15.24 mm
  • Piston Stroke: 40 mm
  • Blows Per Minute: 3960 bpm
  • Overall Length: 180 mm
  • Air Inlet: 1/4 PT
  • Air Hose(I.D): 9.5 mm
  • Net Weight: 1 kg
  • Air Consumption: 6 cfm
  • Max. Rivet Diameter Capacity / Dural: 3/32~3/16(2~5) inch(mm)
  • Max. Rivet Diameter Capacity / Steel: 3/21~5/32(1~4) inch(mm)

Use for the aerospace & general automotive industries, among others.





Model Chisel
Shank
Opening		 Bore
Diameter
mm		 Piston
Stroke
mm		 bpm Overall
Length
mm		 Air
Hose (I.D)
mm		 Weight
kg		 Air
Consumption
cfm		 Vibration
m/s²		 Max. Rivet
Diameter Capacity
Dural
inch(mm)		 Steel
inch(mm)
ZRH-04 0.401 15.24 40 3960 180 9.5 1 6 2.5 3/32~3/16(2~5) 3/21~5/32(1~4)
ZRH-06 0.401 15.24 102 2160 225 9.5 1.33 19 3.9 5/32~1/4(4~7) 1/8~1/4(3~6)
ZRH-08 0.401 15.24 137 1440 280 9.5 1.33 21 4.8 3/16~5/16(5~8) 5/32~1/4(4~7)
