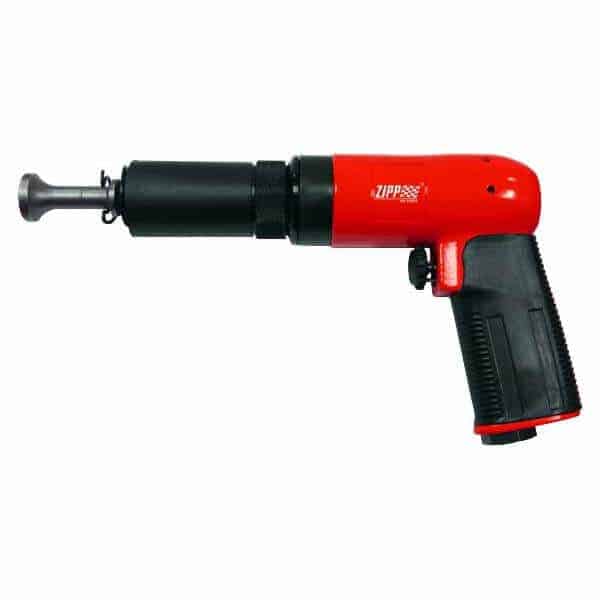

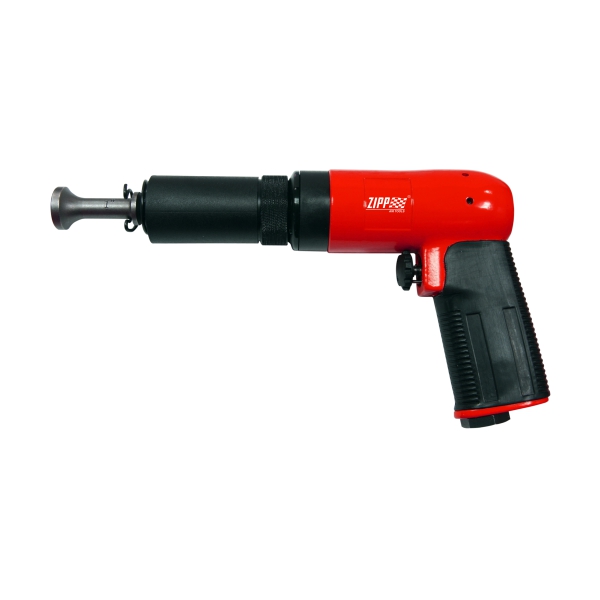

ZRH-06 – Shock Reduced Air Riveting Hammer





Precision Air Riveting with Enhanced Operator Comfort





The ZRH-06 Shock-Reduced Air Riveting Hammer is designed for industrial and aerospace riveting applications, delivering high-impact performance with reduced vibration. Its advanced shock-reduction technology protects operators from hand-arm vibration syndrome (HAVS) while maintaining consistent and precise riveting results. Perfect for metal fabrication, automotive assembly, and aircraft maintenance, the ZRH-06 offers durable and reliable operation, along with user-friendly ergonomics, enabling extended use without fatigue.





Key Features





• Shock Reduction Technology – Minimizes vibration for safer, more comfortable operation.

• High-Impact Performance – Ensures consistent riveting with every stroke.

• Ergonomic Grip – Designed for optimal handling and operator comfort.

• Industrial-Grade Durability – Constructed from high-strength materials for longevity.

• Precision Control – Balanced design provides accurate riveting in tight spaces.





Technical Specifications





• Model: ZRH-06

• Type: Shock-Reduced Air Riveting Hammer

• Impact Frequency: High-speed pneumatic operation

• Handle Type: Ergonomic shock-reducing grip

• Weight: Lightweight for easy maneuverability

• Air Pressure Requirement: Standard industrial air supply

• Applications: Suitable for aerospace, automotive, and industrial riveting tasks





Benefits





Reduced Operator Fatigue – Advanced shock-absorbing system protects hands and arms.
Improved Accuracy – Balanced design enables precise rivet placement.
Reliable and Durable – Built for demanding industrial environments.
Safety-Focused – Reduces risk of vibration-related injuries.
Versatile Applications – Ideal for sheet metal, structural, and aerospace riveting.





Applications





• Aerospace Assembly & Maintenance – Panel and structural riveting.

• Automotive Manufacturing & Repair – Bodywork, chassis, and sheet metal riveting.

• Industrial Fabrication – Steel fabrication and heavy-duty assembly.

• On-Site Maintenance – Portable solution for efficient riveting operations.





Why Choose the ZRH-06?





The ZRH-06 Shock Reduced Air Riveting Hammer combines precision, power, and safety, making it an essential tool for professional riveting applications. Its shock-absorbing ergonomic design ensures consistent performance and operator comfort, even during prolonged use.





Features





• The new ZRH riveting hammer is designed to minimize the vibration while maintaining high tool performance. An adequate air cushion behind the hammer piston reduces vibration.
• Parts are interchangeable with the RRH series.
• Streamline profile & adjustable power.
• Equipped with a universal swivel air inlet joint for the best maneuverability.





Specification:





• Chisel Shank Opening: 0.401 inch
• Bore Diameter: 15.24 mm
• Piston Stroke: 102 mm
• Blows Per Minute: 2160 bpm
• Overall Length: 225 mm
• Air Inlet: 1/4 PT
• Air Hose(I.D): 9.5 mm
• Net Weight: 1.33 kg
• Air Consumption: 19 cfm
• Max. Rivet Diameter Capacity / Dural: 5/32~1/4(4~7) inch(mm)
• Max. Rivet Diameter Capacity / Steel: 1/8~1/4(3~6) inch(mm)

Use for the aerospace & general automotive industries, among others.





Model	Chisel Shank Opening	Bore Diameter mm	Piston Stroke mm	bpm	Overall Length mm	Air Hose (I.D) mm	Weight kg	Air Consumption cfm	Vibration m/s²	Max. Rivet Diameter Capacity
										Dural inch(mm)	Steel inch(mm)
ZRH-04	0.401	15.24	40	3960	180	9.5	1	6	2.5	3/32~3/16(2~5)	3/21~5/32(1~4)
ZRH-06	0.401	15.24	102	2160	225	9.5	1.33	19	3.9	5/32~1/4(4~7)	1/8~1/4(3~6)
ZRH-08	0.401	15.24	137	1440	280	9.5	1.33	21	4.8	3/16~5/16(5~8)	5/32~1/4(4~7)
