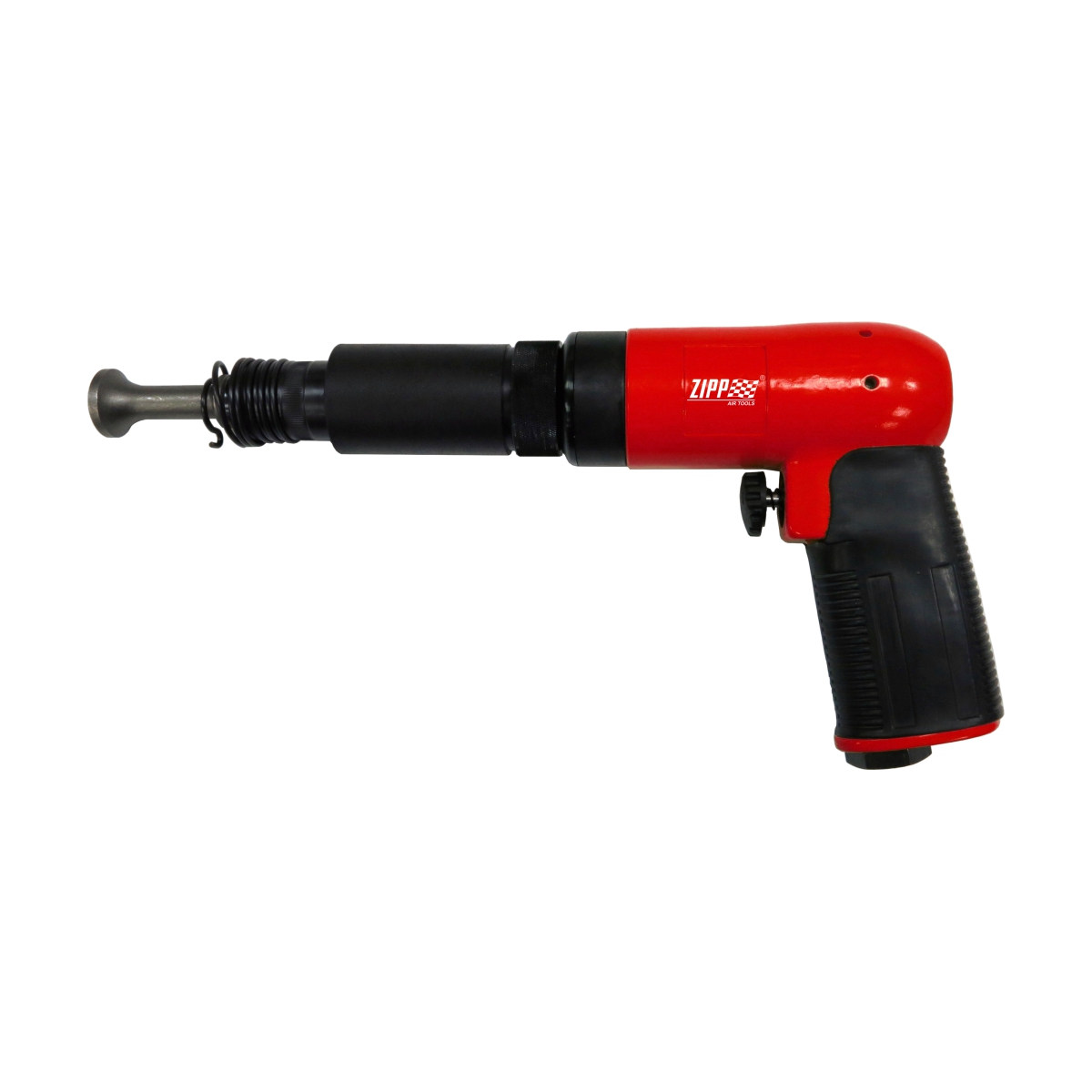

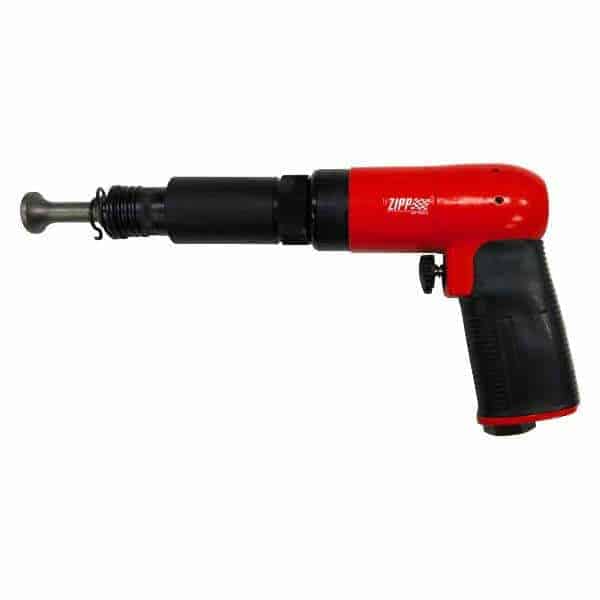

ZRH-08 – Shock Reduced Air Riveting Hammer





High-Performance Shock-Reduced Riveting Tool





The ZRH-08 Shock Reduced Air Riveting Hammer is engineered for precision riveting in industrial and aerospace applications, combining maximum impact power with operator comfort. Its advanced shock-reduction system minimizes vibration transfer, protecting users from fatigue and hand-arm vibration syndrome (HAVS), while maintaining consistent riveting performance. This hammer is ideal for metal fabrication, aerospace assembly, and maintenance operations, offering reliable and long-lasting performance even in demanding environments. Its ergonomic design and balanced weight allow accurate control, especially in tight or awkward spaces.





Key Features





• Advanced Shock Reduction – Minimizes vibration for safer and more comfortable operation.

• High-Impact Performance – Delivers consistent and robust, riveting strokes.

• Ergonomic Design – Provides a comfortable grip for prolonged use, reducing fatigue.

• Durable Construction – Built from high-strength materials for industrial reliability.

• Precision Control – Balanced design ensures accurate riveting every time.



Technical Specifications





• Model: ZRH-08

• Type: Shock-Reduced Air Riveting Hammer

• Impact Frequency: High-speed pneumatic operation

• Handle Type: Ergonomic shock-reducing grip

• Weight: Lightweight for enhanced maneuverability

• Air Pressure Requirement: Standard industrial air supply

• Applications: Compatible with various riveting tasks in aerospace, automotive, and industrial sectors





Benefits





Reduced Operator Fatigue – Shock-absorbing technology minimizes hand and arm vibration.
Enhanced Accuracy – Ergonomically balanced for precise rivet placement.
Durable and Reliable – Designed for heavy-duty industrial use.
Improved Safety – Reduces risk of vibration-related injuries.
Versatile Applications – Suitable for aerospace, automotive, and industrial riveting.





Applications





• Aerospace Assembly & Maintenance – Aircraft panel riveting, structural fastening.

• Automotive Manufacturing & Repairs – Sheet metal riveting and bodywork applications.

• Industrial Fabrication – Steel fabrication, metal assembly, and maintenance.

• On-Site Maintenance & Repair – Portable solution for efficient riveting operations.





Why Choose the ZRH-08?





The ZRH-08 Shock-Reduced Air Riveting Hammer combines power, precision, and safety, making it an essential tool for professional riveting applications. Its shock-reduction system and ergonomic design ensure reliable performance and operator comfort, even during extended use.





Features





• The new ZRH riveting hammer is designed to minimize the vibration while maintaining high tool performance. An adequate air cushion behind the hammer piston reduces vibration.
• Parts are interchangeable with the RRH series.
• Streamline profile & adjustable power.
• Equipped with a universal swivel air inlet joint for the best maneuverability.





Specification:





• Chisel Shank Opening: 0.401 inch
• Bore Diameter: 15.24 mm
• Piston Stroke: 137 mm
• Blows Per Minute: 1440 bpm
• Overall Length: 280 mm
• Air Inlet: 1/4 PT
• Air Hose(I.D): 9.5 mm
• Net Weight: 1.33 kg
• Air Consumption: 21 cfm
• Max. Rivet Diameter Capacity / Dural: 3/16~5/16(5~8) inch(mm)
• Max. Rivet Diameter Capacity / Steel: 5/32~1/4(4~7) inch(mm)

Use for the aerospace & general automotive industries, among others.





Model	Chisel Shank Opening	Bore Diameter mm	Piston Stroke mm	bpm	Overall Length mm	Air Hose (I.D) mm	Weight kg	Air Consumption cfm	Vibration m/s²	Max. Rivet Diameter Capacity
										Dural inch(mm)	Steel inch(mm)
ZRH-04	0.401	15.24	40	3960	180	9.5	1	6	2.5	3/32~3/16(2~5)	3/21~5/32(1~4)
ZRH-06	0.401	15.24	102	2160	225	9.5	1.33	19	3.9	5/32~1/4(4~7)	1/8~1/4(3~6)
ZRH-08	0.401	15.24	137	1440	280	9.5	1.33	21	4.8	3/16~5/16(5~8)	5/32~1/4(4~7)
