ZRH-199P – 9X Air Riveting Hammer





High-Power Industrial Riveting Tool





The ZRH-199P 9X Air Riveting Hammer is designed for heavy-duty industrial applications, delivering exceptional impact power for large-scale riveting tasks. Its 9X impact mechanism provides high-speed, high-force riveting performance, ideal for metal fabrication, automotive, and aerospace assembly. Engineered for precision and durability, the ZRH-199P ensures consistent rivet placement with every strike, making it a reliable choice for professional operators.





Key Features





• 9X Impact Mechanism – Provides rapid, powerful riveting strokes for high-efficiency work.

• High-Speed Pneumatic Operation – Ensures continuous performance in demanding industrial environments.

• Ergonomic Pistol Grip – Comfortable design reduces operator fatigue during extended use.

• Heavy-Duty Construction – Built to withstand rigorous industrial applications.

• Precision Riveting – Accurate and consistent performance for metal assembly tasks.





Technical Specifications





• Model: ZRH-199P

• Type: 9X Air Riveting Hammer

• Impact Frequency: Ultra-high speed, 9X impact per cycle

• Handle Type: Ergonomic pistol grip

• Weight: Optimized for balance and control

• Air Pressure Requirement: Standard industrial compressed air supply

• Applications: Automotive, aerospace, and industrial riveting operations





Benefits





Maximum Productivity – High-speed, multi-impact design increases riveting efficiency.
Precision and Control – Ensures accurate rivet placement every time.
Durable & Reliable – Industrial-grade components for long-lasting use.
Operator Comfort – Ergonomic design reduces fatigue and vibration strain.
Versatile Applications – Ideal for sheet metal, structural components, and heavy-duty assembly.





Applications





• Aerospace Assembly – Riveting of aircraft panels and structural components.

• Automotive Manufacturing & Repair – Chassis, body panels, and heavy-duty sheet metal work.

• Industrial Fabrication – Metal assembly, structural riveting, and large-scale production lines.

• Maintenance & Field Operations – Efficient and reliable for on-site riveting tasks.





Why Choose the ZRH-199P?





The ZRH-199P 9X Air Riveting Hammer is engineered for high-impact, professional-grade riveting, offering precision, speed, and durability in one powerful tool. Its ergonomic design and multi-impact technology make it a top choice for industrial applications requiring maximum performance.

Specification:





• Chisel Shank Opening: 0.498(12.6) inch(mm)
• Bore Diameter: 3/4(19.1) inch(mm)
• Stroke Length: 3-7/8(98.4) inch(mm)
• Blows Per Minute: 1140 bpm
• Operating Air Pressure: 90(6.2) PSI(bar)
• Avg. Air Cons.: 7.78(220) cfm(l/min)
• Net Weight: 5(2.3) lbs(kgs)
• Min. Hose Size: 3/8(10) inch(mm)
• Rivet Size: 1/4 Steel
• Rivet Size: 5/16 Alum

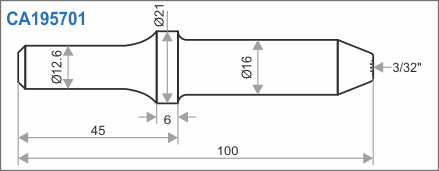

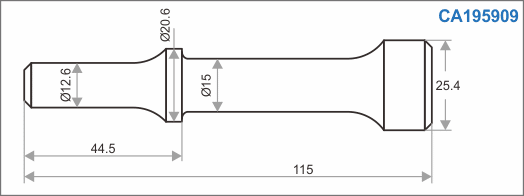

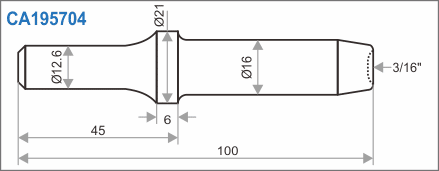

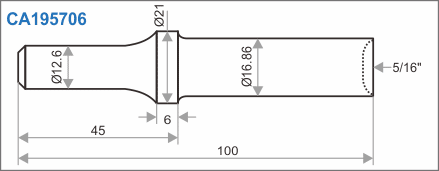

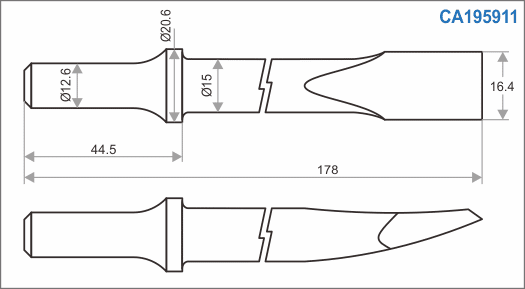

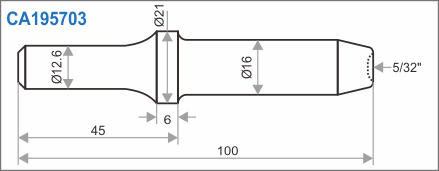

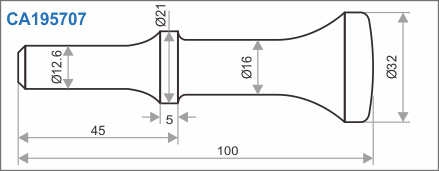

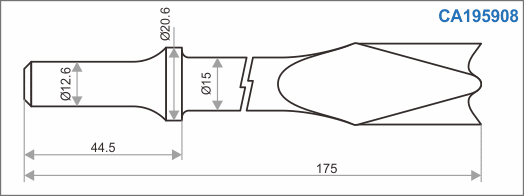

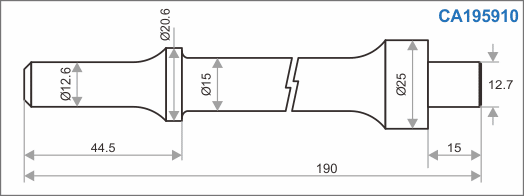

For ZRH-195P, ZRH-197P, ZRH-199P

• Round 12.6m
• Material SCM440 Alloy
• Hardness: 48~51º

195901

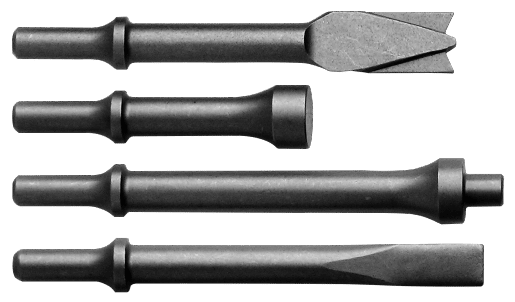

Optional

195903 195914











Use for the aerospace & general automotive industries, among others.





Model	Chisel Shank Opening inch(mm)	Bore Diameter inch(mm)	Stroke Length inch(mm)	Blows Per Minute bpm	Operating Air Pressure psi(bar)	Avg. Air Cons. cfm(l/min)	Net Weight lbs(kgs)	Minch Hose Size inch(mm)	Rivet Size
									Steel	Alum
ZRH-131P	0.401(10.2)	9/16(14.3)	1-3/8(35)	2850	90(6.2)	6.4(180)	2.3(1.0)	3/8(10)	1/8	5/32
ZRH-132P	0.401(10.2)	1/2(12.7)	2-1/4(57.2)	2580	90(6.2)	7.8(221)	2.7(1.2)	3/8(10)	3/32	1/8
ZRH-133P	0.401(10.2)	1/2(12.7)	2-7/8(73)	2160	90(6.2)	7.78(220)	2.9(1.3)	3/8(10)	5/32	3/16
ZRH-134P	0.401(10.2)	1/2(12.7)	3-1/16(77.8)	1740	90(6.2)	7.78(220)	3.1(1.4)	3/8(10)	3/16	1/4
ZRH-132PAP	0.401(10.2)	9/16(14.3)	2-1/4(57.2)	2580	90(6.2)	5.7(160)	2.7(1.2)	3/8(10)	3/32	1/8
ZRH-133PAP	0.401(10.2)	9/16(14.3)	2-7/8(73)	2160	90(6.2)	4.9(140)	2.9(1.3)	3/8(10)	5/32	3/16
ZRH-134PAP	0.401(10.2)	9/16(14.3)	3-1/16(77.8)	1740	90(6.2)	6.4(180)	3.1(1.4)	3/8(10)	3/16	1/4
ZRH-131S	0.401(10.2)	9/16(14.3)	1-3/8(35)	2850	90(6.2)	6.4(180)	1.9(0.86)	3/8(10)	1/8	5/32
ZRH-132S	0.401(10.2)	1/2(12.7)	2-1/4(57.2)	2580	90(6.2)	6.4(180)	2.4(1.06)	3/8(10)	3/32	1/8
ZRH-133S	0.401(10.2)	1/2(12.7)	2-7/8(73)	2160	90(6.2)	6.4(180)	2.6(1.16)	3/8(10)	5/32	3/16
ZRH-134S	0.401(10.2)	1/2(12.7)	3-1/16(77.8)	1740	90(6.2)	6.4(180)	2.8(1.27)	3/8(10)	3/16	1/4
ZRH-195P	0.498(12.6)	3/4(19.1)	2-11/16(68.3)	1560	90(6.2)	7.78(220)	4.6(2.1)	3/8(10)	3/16	1/4
ZRH-197P	0.498(12.6)	3/4(19.1)	5-13/16(132)	900	90(6.2)	9.19(260)	5.5(2.5)	3/8(10)	5/16	3/8
ZRH-199P	0.498(12.6)	3/4(19.1)	3-7/8(98.4)	1140	90(6.2)	7.78(220)	5(2.3)	3/8(10)	1/4	5/16
