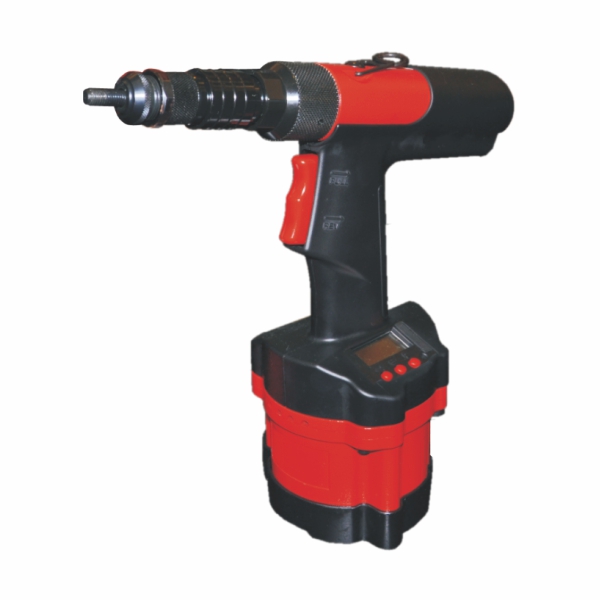

ZRN1606M – Air Rivet Nut Tool
Reliable Rivet Nut Installation for Industrial Applications
The ZRN1606M is a high-performance air rivet nut tool designed for fast, consistent, and efficient installation of rivet nuts in a wide range of materials. Designed with durability and productivity in mind, it delivers the power and precision required in demanding environments such as automotive, aerospace, and heavy industrial assembly lines.
Key Features
-
Air-Powered Efficiency – Provides a strong and consistent pulling force for quick rivet nut installation.
-
Versatile Fastening – Compatible with a wide range of rivet nut sizes and materials, including aluminum, steel, and stainless steel.
-
Durable Construction – Built to withstand continuous heavy-duty use in production environments.
-
Ergonomic Design – A lightweight, well-balanced body reduces operator fatigue during extended shifts.
-
Low Maintenance – Simplified design ensures reliable performance with minimal upkeep.
-
Industrial-Grade Power – Ideal for high-volume applications where speed and reliability are critical.
Technical Specifications
-
Model: ZRN1606M
-
Tool Type: Air Rivet Nut Tool
-
Power Source: Compressed air
-
Function: Installs rivet nuts of various sizes quickly and reliably
-
Applications: Automotive, aerospace, industrial assembly, fabrication shops
Benefits
High Productivity – Speeds up installation in large-scale production lines.
Consistent Quality – Provides uniform fastening results with every application.
Cost-Effective – Durable tool with low maintenance requirements.
Operator Comfort – Ergonomic design makes it easy to handle for extended operations.
Versatile Applications – Works with different nut sizes, materials, and thicknesses.
Applications
-
Automotive Manufacturing – For body frames, chassis, and component assembly.
-
Aerospace Industry – Provides reliable fastening for lightweight and high-strength materials.
-
Metal Fabrication – Suitable for general fabrication, repair, and assembly work.
-
Industrial Production Lines – Ensures fast, repeatable results in high-volume assembly.
Why Choose the ZRN1606M?
The ZRN1606M Air Rivet Nut Tool is the ideal solution for industries that demand speed, strength, and reliability without compromising operator comfort. Its rugged design and air-powered efficiency make it a trusted choice for manufacturers and fabricators worldwide who require consistent fastening performance in high-volume operations.
FOR METRIC SYSTEM
Features
- Features with the most advanced patented digital module to enable operators to know the rivet tool setting capacity instantly under various air supply conditions and the rivet setting cycles performed during their working period.
- It will also remind operators when to do service or maintenance to the tool at the proper intervals.
- It will help to cease the controversy about the warranty issue, especially if the tool has been misused or abused with abnormally high air pressure, which exceeds the design specification.
- Built with patented “Module units assembled in composite clam shell housing” for the ease of tool service.
- Forged and heat-treated aluminum alloy made Hydraulic Section for the best rigidity.
- Easy-to-adjust head and nut designed for obtaining the most effective stroke.
- Ergonomic texture-coated composite housing for the operator’s comfort.
- The swivel air inlet design enhances maneuverability.
- Aluminum Alloy Forged Hydraulic Section
- Adjustable Stroke
- Air Motor
- Air Actuating Module
- Composite Clam Shell Housing
- AAA Battery Port
- LCD Module
- USB Port
Specification:
- Traction Power: 3500(1600) Ibf(kgf)
- Stroke Length: 6 mm
- Net Weight: 4.9(2.2) lbs(kgs)
- Rivet Nut / Rivet Stud Setting Capacity: M4~M10 rivet nut in Hex./Steel M12 need 100psi/7 bar operating pressure
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of the model you select.
| Model | Traction Power lbf(kgf) |
Stroke Length inch(mm) |
Net Weight lbs(kgs) |
Rivet Nut / Rivet Stud Setting Capacity |
| ZRN1606E | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet nut in Hex./Steel 1/2″-13 need 100psi/7 bar operating pressure |
| ZRN1606ED | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet nut in Hex./Steel 1/2″-13 need 100psi/7 bar operating pressure |
| ZRN1606M | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet nut in Hex./Steel M12 needs 100psi/7 bar operating pressure |
| ZRN1606MD | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet nut in Hex./Steel M12 needs 100psi/7 bar operating pressure |
| ZRN2508E | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~1/2″-13 rivet nut in all materials |
| ZRN2508ED | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~1/2″-13 rivet nut in all materials |
| ZRN2508M | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M12 rivet nut in all materials |
| ZRN2508MD | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M12 rivet nut in all materials |
| ZRS1606E | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS1606ED | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS1606M | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet stud in all materials |
| ZRS1606MD | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet stud in all materials |
| ZRS2508E | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS2508ED | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS2508M | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M10 rivet stud in all materials |
| ZRS2508MD | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M10 rivet stud in all materials |
