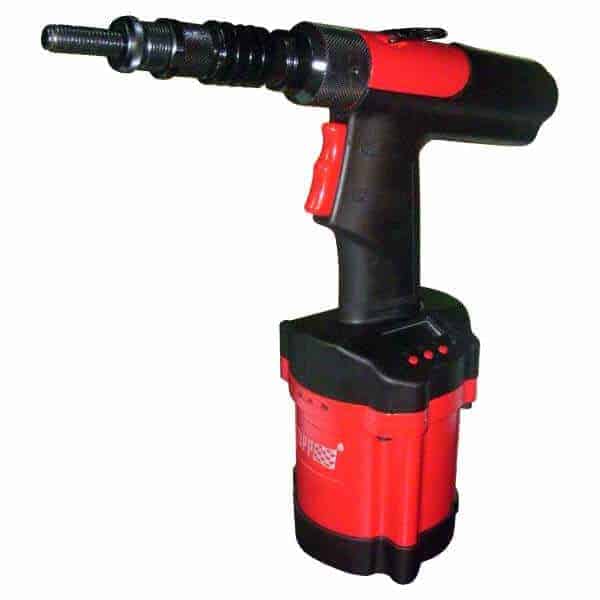

ZRN2508E Air Rivet Nut Tool – FOR IMPERIAL SYSTEM
The ZRN2508E Air Rivet Nut Tool is a powerful pneumatic tool engineered for the efficient installation of rivet nuts. It is well-suited for assembly applications across various industries. This tool combines a reliable air-driven mechanism with ergonomic features, providing the ideal balance of performance and ease of use for demanding assembly tasks.
Key Features
- High-Efficiency Pneumatic System: Designed to deliver consistent, powerful riveting for fast and secure rivet nut installations.
- User-Friendly Operation: Simple controls allow for easy operation and quick adjustment, minimizing setup time and maximizing productivity.
- Durable Construction: Built with high-quality materials to withstand rigorous use in industrial settings, ensuring long-lasting performance.
- Lightweight and Ergonomic Design: It is compact and comfortable to hold, reducing operator fatigue during prolonged use and enhancing control over installation.
- Versatile Application Range: It is compatible with various rivet nut sizes, making it adaptable to different materials and fastening requirements.
Applications
- Automotive and Aerospace Manufacturing: Provides reliable and fast riveting solutions suitable for assembly tasks that demand durability and precision.
- Electronics and Appliances: Offers secure fastening for components in small to mid-sized assemblies, ideal for products where strength and precision are essential.
- Metalworking and Fabrication: Handles various materials, including aluminum and steel, which are ideal for securing sheet metal and other components in manufacturing.
- General Industrial Assembly: Suitable for any production environment where fast and consistent rivet nut installation is required.
Benefits
- Enhanced Productivity: The pneumatic mechanism delivers high-speed riveting, helping to increase throughput in high-volume production lines.
- Consistent Quality: Provides reliable, uniform fastening, reducing the likelihood of rework and improving overall assembly quality.
- Reduced Operator Fatigue: Ergonomic design minimizes hand strain, allowing operators to work efficiently over extended periods.
- Versatile Tooling Solution: Works with multiple rivet nut sizes, making it a versatile choice for various applications and industries.
The ZRN2508E Air Rivet Nut Tool combines robust performance with ease of use, making it an excellent choice for industries that require efficient, reliable, and ergonomic riveting solutions.
Features
- It features the most advanced patented digital module, enabling operators to know the rivet tool setting capacity instantly under various air supply conditions and the rivet setting cycles performed during their working period.
- It will also remind operators when to do service or maintenance to the tool at proper intervals.
- It will help to cease the controversy about warranty issues, especially if the tool has been misused or abused with abnormally high air pressure that exceeds the design specification.
- It is built with patented “Module units assembled in composite clam shell housing” for ease of tool service.
- Forged and heat-treated aluminum alloy made Hydraulic Section for the best rigidity.
- Easy adjustable Head & Nut designed for obtaining the most effective stroke.
- Ergonomic texture-coated composite housing for operator’s comfort.
- Swivel air inlet design for maneuverability works.
- Aluminum Alloy Forged Hydraulic Section
- Adjustable Stroke
- Air Motor
- Air Actuating Module
- Composite Clam Shell Housing
- AAA Battery Port
- LCD Module
- USB Port
Specification:
- Traction Power: 5500(2500) Ibf(kgf)
- Stroke Length: 8 mm
- Net Weight: 5.4(2.4) lbs(kgs)
- Rivet Nut / Rivet Stud Setting Capacity: #8-32~1/2″-13 rivet nut in all materials
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of your selected model.
Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Net Weight lbs(kgs) | Rivet Nut / Rivet Stud Setting Capacity |
ZRN1606E | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet nut in Hex./Steel 1/2″-13 need 100psi/7 bar operating pressure |
ZRN1606ED | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet nut in Hex./Steel 1/2″-13 need 100psi/7 bar operating pressure |
ZRN1606M | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet nut in Hex./Steel M12 needs 100psi/7 bar operating pressure |
ZRN1606MD | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet nut in Hex./Steel M12 needs 100psi/7 bar operating pressure |
ZRN2508E | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~1/2″-13 rivet nut in all materials |
ZRN2508ED | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~1/2″-13 rivet nut in all materials |
ZRN2508M | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M12 rivet nut in all materials |
ZRN2508MD | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M12 rivet nut in all materials |
ZRS1606E | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet stud in all materials |
ZRS1606ED | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet stud in all materials |
ZRS1606M | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet stud in all materials |
ZRS1606MD | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet stud in all materials |
ZRS2508E | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~3/8″-16 rivet stud in all materials |
ZRS2508ED | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~3/8″-16 rivet stud in all materials |
ZRS2508M | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M10 rivet stud in all materials |
ZRS2508MD | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M10 rivet stud in all materials |
