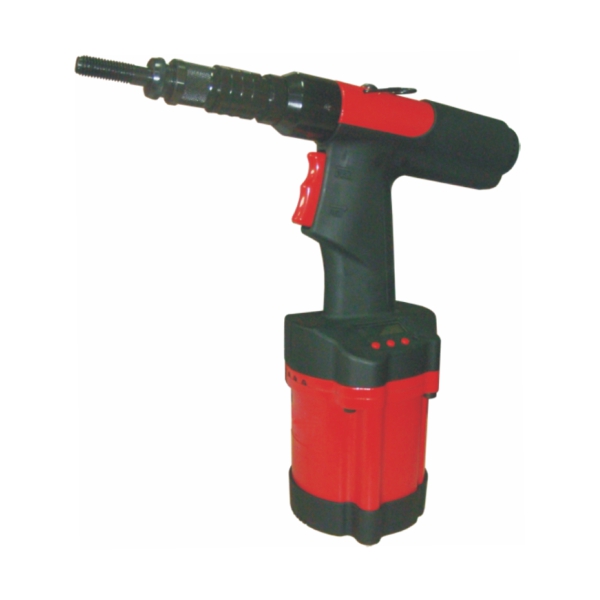

ZRN2508ED Air Rivet Nut Tool – With Digital Module
FOR IMPERIAL SYSTEM
The ZRN2508ED Air Rivet Nut Tool combines efficient pneumatic riveting with digital precision, offering an advanced solution for industries demanding accurate and repeatable fastening results. The integrated digital module enhances control and provides real-time feedback, making this tool ideal for applications requiring stringent quality control and operational insight.
Key Features
- Digital Module Integration: Equipped with a digital display that provides feedback on riveting metrics, helping operators ensure precision and consistency in every application.
- High-Performance Pneumatic Mechanism: Offers robust and reliable power, maximizing efficiency for large and small-scale assembly tasks.
- Ergonomic Design: Lightweight and balanced for comfortable handling, reducing operator fatigue during extended use.
- Precise Control: The digital module allows for fine-tuning torque and fastening force, making it adaptable to different material requirements and rivet sizes.
- Secure Rivet Holding: Designed to prevent rivet slippage and ensure firm, uniform placement, supporting various rivet nut sizes and materials.
Applications
- Automotive and Aerospace Manufacturing: Provides accurate fastening solutions critical for assembly where reliability and precision are paramount.
- Electronics and Appliance Assembly: Ensures secure riveting for sensitive components, which is ideal for applications that demand precision and consistency.
- Metal Fabrication is perfect for securing sheet metal and other materials with precise control, which is essential for both structural integrity and appearance.
- Industrial Manufacturing: Suitable for assembly lines and production environments where real-time monitoring can enhance productivity and reduce error rates.
Benefits
- Enhanced Quality Control: The digital module allows operators to monitor and adjust settings for each application, ensuring each rivet meets quality standards.
- Operational Efficiency: Digital feedback and control settings reduce guesswork, reduce rework, and improve throughput.
- User Comfort and Safety: Ergonomic design and digital controls reduce physical strain and allow for safer, more accurate operations.
- Reliable, Consistent Fastening: Designed for high-volume use, the ZRN2508ED delivers uniform results, helping maintain quality across long production runs.
The ZRN2508ED Air Rivet Nut Tool is ideal for operations that demand both high-speed riveting and precision control. It combines the efficiency of pneumatic power with the precision of digital technology to deliver excellent results across various industrial applications.
Features
- It features the most advanced patented digital module, enabling operators to instantly know the rivet tool setting capacity under various air supply conditions and the rivet setting cycles performed during their working period.
- It will also remind operators when to do service or maintenance to the tool at proper intervals.
- It will help to significantly cease the controversy about warranty issues if the tool has been misused or abused with abnormally high air pressure that exceeds the design specification.
- It is built with patented “Module units assembled in composite clam shell housing” for ease of tool service.
- Forged and heat-treated aluminum alloy made Hydraulic Section for the best rigidity.
- Easy adjustable Head & Nut designed for obtaining the most effective stroke.
- Ergonomic texture-coated composite housing for operator’s comfort.
- Swivel air inlet design for maneuverability works.
- Aluminum Alloy Forged Hydraulic Section
- Adjustable Stroke
- Air Motor
- Air Actuating Module
- Composite Clam Shell Housing
- AAA Battery Port
- LCD Module
- USB Port
Specification:
- Traction Power: 5500(2500) Ibf(kgf)
- Stroke Length: 8 mm
- Net Weight: 5.4(2.4) lbs(kgs)
- Rivet Nut / Rivet Stud Setting Capacity: #8-32~1/2″-13 rivet nut in all materials
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of your selected model.
| Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Net Weight lbs(kgs) | Rivet Nut / Rivet Stud Setting Capacity |
| ZRN1606E | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet nut in Hex./Steel 1/2″-13 need 100psi/7 bar operating pressure |
| ZRN1606ED | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet nut in Hex./Steel 1/2″-13 need 100psi/7 bar operating pressure |
| ZRN1606M | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet nut in Hex./Steel M12 needs 100psi/7 bar operating pressure |
| ZRN1606MD | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet nut in Hex./Steel M12 needs 100psi/7 bar operating pressure |
| ZRN2508E | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~1/2″-13 rivet nut in all materials |
| ZRN2508ED | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~1/2″-13 rivet nut in all materials |
| ZRN2508M | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M12 rivet nut in all materials |
| ZRN2508MD | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M12 rivet nut in all materials |
| ZRS1606E | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS1606ED | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS1606M | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet stud in all materials |
| ZRS1606MD | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet stud in all materials |
| ZRS2508E | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS2508ED | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS2508M | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M10 rivet stud in all materials |
| ZRS2508MD | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M10 rivet stud in all materials |
