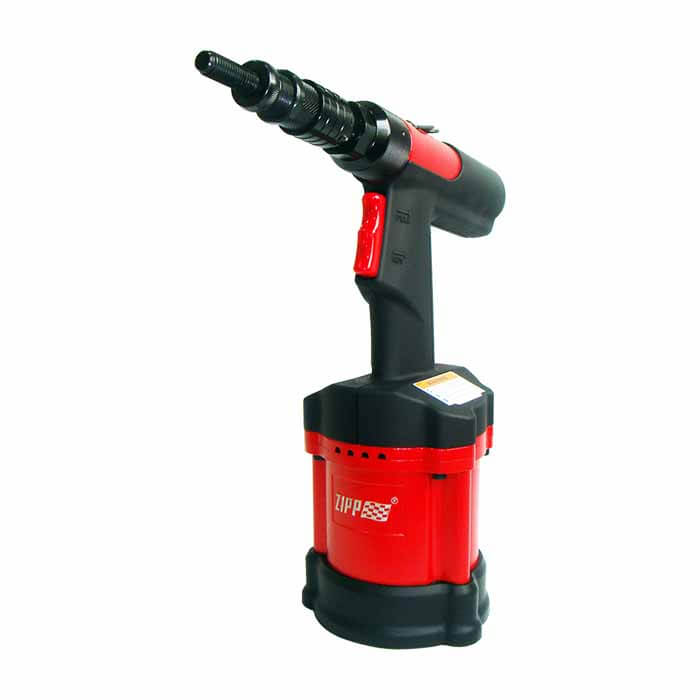

ZRN2508M Air Rivet Nut Tool – FOR METRIC SYSTEM
The ZRN2508M Air Rivet Nut Tool is a robust pneumatic tool crafted for efficient and reliable riveting applications. It is suitable for assembly tasks requiring speed, consistency, and durability. With its high-performance air-powered mechanism, the ZRN2508M is well-suited for various industrial uses, ensuring secure fastening across materials of different types and thicknesses.
Key Features
- High-Speed Riveting: Delivers rapid riveting cycles, ideal for high-throughput production environments where time efficiency is crucial.
- Durable and Lightweight: Constructed with high-quality materials for a balanced design that provides easy handling and reduces operator fatigue.
- Strong Rivet Grip: This grip ensures a secure fastening with precision threading and is adaptable to different rivet nut sizes for versatility in assembly applications.
- Air-Powered Efficiency: Utilizes compressed air to achieve consistent, high-power performance, suitable for repetitive tasks and large-scale projects.
Applications
- Manufacturing and Assembly Lines: Ideal for industrial settings requiring repetitive, high-speed riveting with consistent results.
- Automotive and Aerospace: Ensures reliable fastening for critical components, suitable for vehicle assembly and aircraft manufacturing.
- Metal Fabrication and Construction: Provides intense riveting action for various materials like sheet metal, steel, and aluminum, which are essential for durable constructions.
- Electronics and Appliance Assembly: This product offers delicate yet firm riveting suitable for intricate components in electronic devices and household appliances.
Benefits
- Increased Productivity: Fast riveting capability shortens cycle times, enhancing output and efficiency on the production floor.
- Consistent Quality: Precision design ensures each rivet is securely fastened, reducing rework and meeting quality standards in finished products.
- User-Friendly Design: Ergonomic and lightweight for comfort over long usage periods, with minimal vibration for improved control and accuracy.
- Reliable Performance: Built to withstand industrial demands, minimizing maintenance needs and ensuring consistent functionality over time.
The ZRN2508M Air Rivet Nut Tool combines high-speed performance with durable construction, making it a versatile and reliable choice for industries where fast, precise riveting is essential.
Features
- It features the most advanced patented digital module, enabling operators to know the rivet tool setting capacity instantly under various air supply conditions and the rivet setting cycles performed during their working period.
- It will also remind operators when to do service or maintenance to the tool at proper intervals.
- It will help to cease the controversy about warranty issues, especially if the tool has been misused or abused with abnormally high air pressure that exceeds the design specification.
- It is built with patented “Module units assembled in composite clam shell housing” for ease of tool service.
- Forged and heat-treated aluminum alloy made Hydraulic Section for the best rigidity.
- Easy adjustable Head & Nut designed for obtaining the most effective stroke.
- Ergonomic texture-coated composite housing for operator’s comfort.
- Swivel air inlet design for maneuverability works.
- Aluminum Alloy Forged Hydraulic Section
- Adjustable Stroke
- Air Motor
- Air Actuating Module
- Composite Clam Shell Housing
- AAA Battery Port
- LCD Module
- USB Port
Specification:
- Traction Power: 5500(2500) lbf(kgf)
- Stroke Length: 8 mm
- Net Weight: 5.4(2.4) lbs(kgs)
- Rivet Nut / Rivet Stud Setting Capacity: M4~M12 rivet nut in all materials
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of your selected model.
| Model | Traction Power lbf(kgf) |
Stroke Length inch(mm) |
Net Weight lbs(kgs) |
Rivet Nut / Rivet Stud Setting Capacity |
| ZRN1606E | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet nut in Hex./Steel 1/2″-13 need 100psi/7 bar operating pressure |
| ZRN1606ED | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet nut in Hex./Steel 1/2″-13 need 100psi/7 bar operating pressure |
| ZRN1606M | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet nut in Hex./Steel M12 needs 100psi/7 bar operating pressure |
| ZRN1606MD | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet nut in Hex./Steel M12 needs 100psi/7 bar operating pressure |
| ZRN2508E | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~1/2″-13 rivet nut in all materials |
| ZRN2508ED | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~1/2″-13 rivet nut in all materials |
| ZRN2508M | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M12 rivet nut in all materials |
| ZRN2508MD | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M12 rivet nut in all materials |
| ZRS1606E | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS1606ED | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS1606M | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet stud in all materials |
| ZRS1606MD | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet stud in all materials |
| ZRS2508E | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS2508ED | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS2508M | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M10 rivet stud in all materials |
| ZRS2508MD | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M10 rivet stud in all materials |
