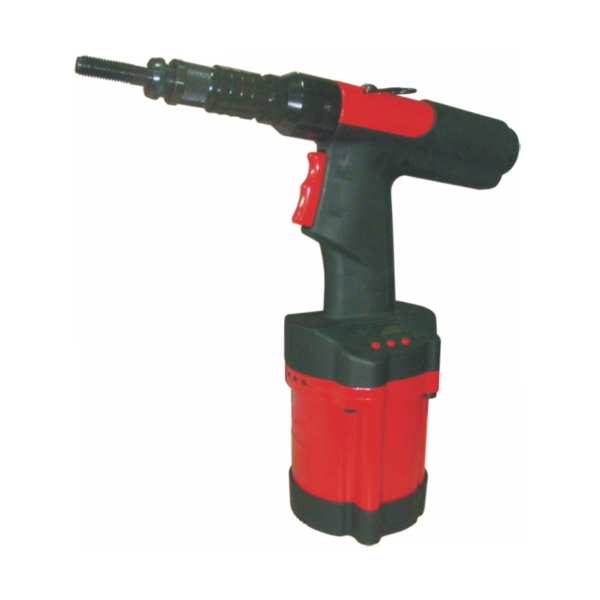

ZRN2508MD Air Rivet Nut Tool – With Digital Module
FOR METRIC SYSTEM
The ZRN2508MD Air Rivet Nut Tool is a high-performance pneumatic tool with a state-of-the-art digital module designed for precision-driven riveting and fastening applications. It offers enhanced control and accuracy, making it invaluable for industries requiring durable, consistent, high-speed fastening. The digital module provides real-time feedback, enabling precise monitoring and adjustments during operations, making this tool ideal for production environments and critical assembly tasks.
Key Features
- Digital Control Module: The integrated digital module displays riveting parameters, allowing for precision adjustments and quality control. It also supports data logging for enhanced traceability.
- High-Speed Operation: Delivers fast riveting action, making it efficient for high-volume production lines while ensuring accuracy and consistency.
- Precision Riveting: Ideal for intricate assembly needs, the tool’s design minimizes vibration and ensures stable, repeatable riveting performance.
- Air-Powered Efficiency: This tool utilizes pneumatic power to achieve strong, reliable fastening across various material types suited for industrial demands.
- Durable Build: Engineered from high-strength materials to withstand continuous use in heavy-duty applications, ensuring tool longevity and dependable performance.
Applications
- Automotive and Aerospace Manufacturing: Precise, high-speed riveting with digital monitoring, ideal for applications where quality control and traceability are critical.
- Electronics and Appliances: Ensures reliable and accurate fastening for delicate components and assemblies, which is essential for electronic devices and household appliances.
- Metal Fabrication: This technique is perfect for applications involving sheet metal, aluminum, and other materials. It delivers strong, consistent riveting for lasting connections.
- Construction and Machinery: Effective in environments that require high-strength riveting for durable fastening in heavy-duty components and structures.
Benefits
- Enhanced Productivity and Control: Digital module allows real-time monitoring and adjustments, improving efficiency and reducing error rates.
- Consistent Quality and Traceability: Digital feedback ensures every rivet is applied precisely, supporting quality standards and record-keeping for assembly compliance.
- Ergonomic and User-Friendly: Lightweight and easy to handle, reducing operator fatigue even during extended use, and designed for quick adjustments to suit various riveting applications.
- Durability for Industrial Demands: High-quality construction for reliable performance, reducing maintenance and ensuring consistent output over long-term use.
The ZRN2508MD Air Rivet Nut Tool, with its advanced digital module, is ideal for industries requiring rigorous quality control. It offers a combination of speed, precision, and control for optimal riveting performance.
Features
- It features the most advanced patented digital module, enabling operators to know the rivet tool setting capacity instantly under various air supply conditions and the rivet setting cycles performed during their working period.
- It will also remind operators when to do service or maintenance to the tool at proper intervals.
- It will help to cease the controversy about warranty issues, especially if the tool has been misused or abused with abnormally high air pressure that exceeds the design specification.
- It is built with patented “Module units assembled in composite clam shell housing” for ease of tool service.
- Forged and heat-treated aluminum alloy made Hydraulic Section for the best rigidity.
- Easy adjustable Head & Nut designed for obtaining the most effective stroke.
- Ergonomic texture-coated composite housing for operator’s comfort.
- Swivel air inlet design for maneuverability works.
- Aluminum Alloy Forged Hydraulic Section
- Adjustable Stroke
- Air Motor
- Air Actuating Module
- Composite Clam Shell Housing
- AAA Battery Port
- LCD Module
- USB Port
Specification:
- Traction Power: 5500(2500) lbf(kgf)
- Stroke Length: 8 mm
- Net Weight: 5.4(2.4) lbs(kgs)
- Rivet Nut / Rivet Stud Setting Capacity: M4~M12 rivet nut in all materials
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of your selected model.
Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Net Weight lbs(kgs) | Rivet Nut / Rivet Stud Setting Capacity |
ZRN1606E | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet nut in Hex./Steel 1/2″-13 need 100psi/7 bar operating pressure |
ZRN1606ED | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet nut in Hex./Steel 1/2″-13 need 100psi/7 bar operating pressure |
ZRN1606M | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet nut in Hex./Steel M12 needs 100psi/7 bar operating pressure |
ZRN1606MD | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet nut in Hex./Steel M12 needs 100psi/7 bar operating pressure |
ZRN2508E | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~1/2″-13 rivet nut in all materials |
ZRN2508ED | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~1/2″-13 rivet nut in all materials |
ZRN2508M | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M12 rivet nut in all materials |
ZRN2508MD | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M12 rivet nut in all materials |
ZRS1606E | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet stud in all materials |
ZRS1606ED | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet stud in all materials |
ZRS1606M | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet stud in all materials |
ZRS1606MD | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet stud in all materials |
ZRS2508E | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~3/8″-16 rivet stud in all materials |
ZRS2508ED | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~3/8″-16 rivet stud in all materials |
ZRS2508M | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M10 rivet stud in all materials |
ZRS2508MD | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M10 rivet stud in all materials |
