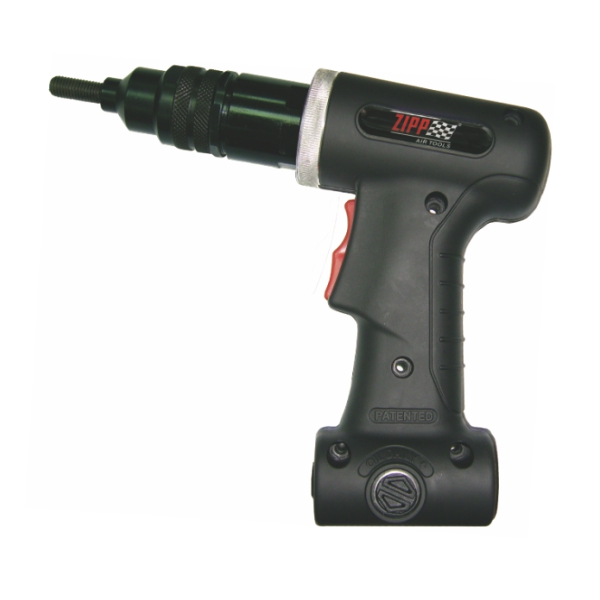

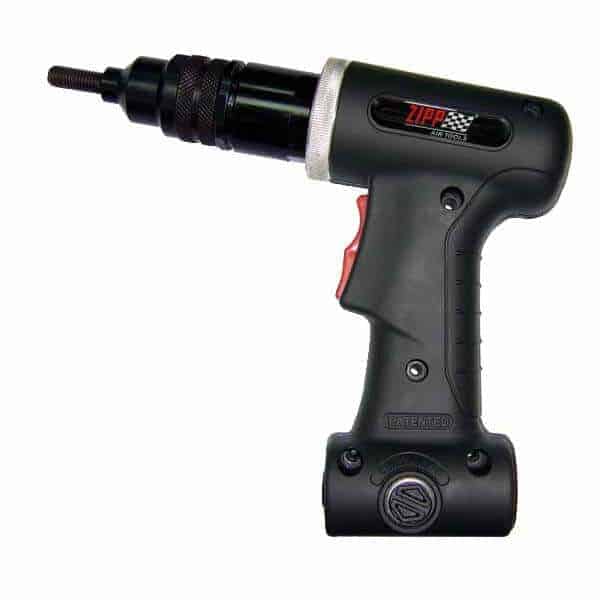

ZRN508 Composite Air Rivet Nut Tool – M8
The ZRN508 Composite Air Rivet Nut Tool is a powerful and efficient tool designed for installing M8 rivet nuts with precision and speed. Its lightweight composite body is ideal for long-term use while reducing operator fatigue. This pneumatic tool is designed for high-volume industrial applications, ensuring consistent performance and easy operation.
Key Features and Benefits
- Composite Housing: The lightweight composite construction provides durability and strength without adding unnecessary weight, allowing easier handling and reducing fatigue during extended use.
- M8 Rivet Nut Compatibility: Designed for the secure installation of M8 rivet nuts, this tool is perfect for applications that require this larger rivet size. It offers robust fastening for heavy-duty applications.
- Pneumatic Operation: Powered by compressed air, the tool delivers consistent torque and ensures fast, reliable installation, improving productivity in assembly lines and other industrial settings.
- Ergonomic Design: The tool’s ergonomic grip and balanced weight distribution ensure operator comfort and precision during use, even in tight or awkward spaces.
- High-Speed Performance: The ZRN508 is engineered for fast operation, allowing for high-throughput rivet nut installations. This speed makes it an excellent choice for demanding production environments.
- Minimal Maintenance: The ZRN508 requires minimal maintenance. Its high-quality components and design minimize wear and tear, ensuring long-lasting reliability and reducing downtime.
Applications
The ZRN508 Composite Air Rivet Nut Tool – M8 is ideal for various industries and applications:
- Automotive Assembly and Repair: This product is perfect for securely fastening larger M8 rivet nuts in automotive frames, panels, and parts, providing durable and reliable connections.
- Heavy-Duty Manufacturing: Designed for large-scale industrial applications, this tool is well-suited for manufacturing environments where M8 rivet nuts are used for heavy materials.
- Construction and Metal Fabrication: This product is ideal for joining metal sheets, structures, and panels in construction projects where high-strength rivet nuts are required for structural integrity.
- Aerospace Industry: Used in aerospace applications for installing M8 rivet nuts in aircraft components, ensuring high standards of precision and durability.
Why Choose the ZRN508?
The ZRN508 Composite Air Rivet Nut Tool — M8 provides robust performance for industrial applications that require the installation of M8 rivet nuts. Its lightweight composite design, ergonomic handling, and high-speed operation make it a top choice for professionals in the automotive, manufacturing, aerospace, and construction sectors. With reliable pneumatic power and minimal maintenance, the ZRN508 ensures fast, secure rivet nut installations with maximum efficiency.
Clam Shell Composite Housing
Features
- They are designed with patented “Module units assembled in composite clam shell housing” for easy tool service.
- Ergonomic texture-coated composite housing for operator’s comfort.
- Less friction loss along the air passage to increase tool power & performance.
- Module unit mechanism enables more common parts to be used in similar designed tools.
- Rocker-type trigger and both left or right-hand side air inlets for ease of operational control.
- Composite Clam Shell Housing
- Operating Module
- Air Actuating Module with Rocker Type Trigger
- Air Inlet Hose
- Air Bleeding Hose
- Air Inlet Module
Specification:
- Max. Rivet Nut Setting Capacity: M8 Hex./All Materiais
- Free Speed: 500 rpm
- Net Weight:3.08(1.4) Ibs(kgs)
- Avg. Air Cons.: 9.9(280) cu.ft/stroke
- Air Inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Sound Pressure: 86 dBA
- Vibration: <2.5 m/s2
| Optional Nose Assembly | |||
| Size | B-Type (Screw-On) |
Q-Type (Quick Change) |
Model for other sizes: |
| M6 | P/N: 106800B | P/N: 106800Q | ZRN506 or ZRN506Q |
| M8 | P/N: 208800B | P/N: 208800Q | ZRN508 or ZRN508Q |
| 1/4″-20 | P/N: 114800B | P/N: 114800Q | ZRN520 or ZRN520Q |
| 5/16″-18 | P/N: 516800B | P/N: 516800Q | ZRN518 or ZRN518Q |
* There is only one size of rivet head that comes with each tool. Please specify the model you require when ordering.
| Model | Max. Rivet Nut Setting Capacity Round Rivet Nut(mm) |
Free Speed rpm |
Net Weight lbs(kgs) |
Avg. Air Cons. cfm(l/min) |
Air Inlet Size inch-NPT/PT |
Min. Hose Size inch(mm) |
Sound Pressure dB(A) |
Vibration m/s² |
| ZRN106 | M6 Round/Steel | 1500 | 3.06(1.39) | 20.3(580) | 1/4 | 3/8(10) | 86 | <2.5 |
| ZRN106Q | M6 Round/Steel | 1500 | 2.42(1.10) | 20.3(580) | 1/4 | 3/8(10) | 86 | <2.5 |
| ZRN508 | M8 Hex./All Materials | 500 | 3.08(1.4) | 20.3(580) | 1/4 | 3/8(10) | 86 | <2.5 |
| ZRN508Q | M8 Hex./All Materials | 500 | 2.50(1.13) | 20.3(580) | 1/4 | 3/8(10) | 86 | <2.5 |
| ZRN508 | M8 Hex./All Materials | 280 | 3.08(1.4) | 20.3(580) | 1/4 | 3/8(10) | 86 | <2.5 |
| ZRN212 | M12 Hex./Steel | 280 | 3.08(1.4) | 20.3(580) | 1/4 | 3/8(10) | 86 | <2.5 |
