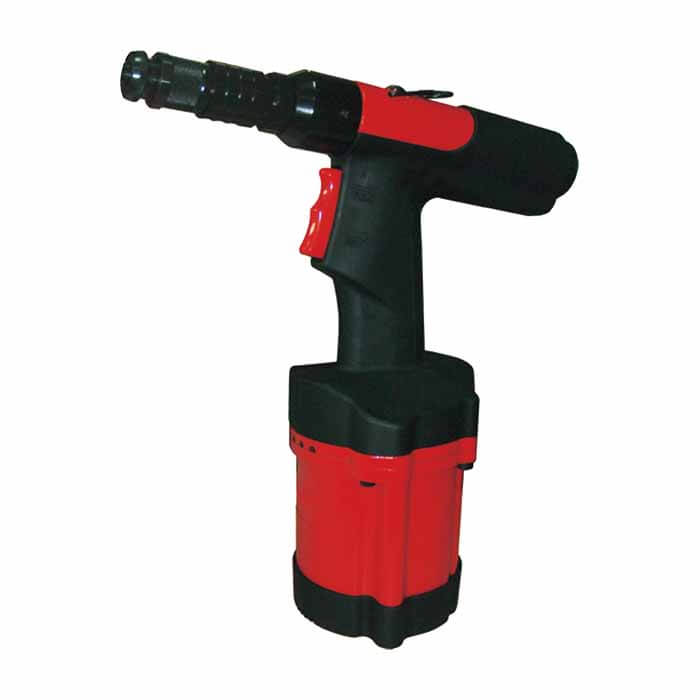

ZRS2508E Air Rivet Stud Tool – FOR IMPERIAL SYSTEM
The ZRS2508E Air Rivet Stud Tool is a robust and efficient pneumatic tool designed for high-speed and high-precision fastening applications. With its compact design and powerful air-driven mechanism, the ZRS2508E is ideal for industrial tasks that require reliable and repetitive stud riveting, ensuring strong and consistent fastening in every use.
Key Features
- High-Speed Riveting: Capable of delivering rapid and consistent riveting performance, ideal for production environments demanding high throughput.
- Air-Powered Mechanism: This mechanism provides powerful pneumatic force, making it highly effective for materials that require sturdy, permanent fastening.
- Compact and Lightweight: Designed for easy handling, the ZRS2508E reduces operator fatigue, even during extended use in fast-paced assembly settings.
- Precision Engineering: Ensures consistent rivet placement with minimal vibration, reducing rework and maintaining assembly quality.
- Durable Construction: Built from high-quality materials for long-lasting performance in rugged industrial conditions.
Applications
- Automotive and Aerospace Assembly: Suitable for fastening metal and composite materials in assembly lines, where precision and speed are critical.
- Sheet Metal Fabrication: Ideal for applications requiring secure and permanent riveting in thin metal sheets and components.
- Heavy Machinery: Used for assembling parts that require durable fastening solutions in machinery and equipment manufacturing.
- Electronics and Appliance Manufacturing: Ensures reliable and precise fastening in producing electronic components and household appliances.
Benefits
- Enhanced Productivity: High-speed operation and easy handling improve production efficiency, making it an ideal tool for assembly lines and production environments.
- Consistency and Precision: Ensures each rivet is installed uniformly, reducing errors and improving product quality.
- Ergonomic Design: Lightweight build and comfortable grip enhance user experience, reducing fatigue and increasing operator efficiency.
- Long-Lasting Performance: Built to withstand rigorous use, minimizing the need for frequent tool replacement and lowering overall operational costs.
The ZRS2508E Air Rivet Stud Tool is a reliable choice for industrial applications that demand speed, strength, and repeatability in fastening operations.
Features
- It features the most advanced patented digital module, enabling operators to know the rivet tool setting capacity instantly under various air supply conditions and the rivet setting cycles performed during their working period.
- It will also remind operators when to do service or maintenance to the tool at proper intervals.
- It will help to cease the controversy about warranty issues, especially if the tool has been misused or abused with abnormally high air pressure that exceeds the design specification.
- It is built with patented “Module units assembled in composite clam shell housing” for ease of tool service.
- Forged and heat-treated aluminum alloy made Hydraulic Section for the best rigidity.
- Easy adjustable Head & Nut designed for obtaining the most effective stroke.
- Ergonomic texture-coated composite housing for operator’s comfort.
- Swivel air inlet design for maneuverability works.
- Aluminum Alloy Forged Hydraulic Section
- Adjustable Stroke
- Air Motor
- Air Actuating Module
- Composite Clam Shell Housing
- AAA Battery Port
- LCD Module
- USB Port
Specification:
- Traction Power: 5500(2500) Ibf(kgf)
- Stroke Length: 8 mm
- Net Weight: 5.4(2.4) lbs(kgs)
- Rivet Nut / Rivet Stud Setting Capacity: #8-32~3/8″-16 rivet stud in all materials
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of your selected model.
| Model | Traction Power lbf(kgf) |
Stroke Length inch(mm) |
Net Weight lbs(kgs) |
Rivet Nut / Rivet Stud Setting Capacity |
| ZRN1606E | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet nut in Hex./Steel 1/2″-13 need 100psi/7 bar operating pressure |
| ZRN1606ED | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet nut in Hex./Steel 1/2″-13 need 100psi/7 bar operating pressure |
| ZRN1606M | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet nut in Hex./Steel M12 needs 100psi/7 bar operating pressure |
| ZRN1606MD | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet nut in Hex./Steel M12 needs 100psi/7 bar operating pressure |
| ZRN2508E | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~1/2″-13 rivet nut in all materials |
| ZRN2508ED | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~1/2″-13 rivet nut in all materials |
| ZRN2508M | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M12 rivet nut in all materials |
| ZRN2508MD | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M12 rivet nut in all materials |
| ZRS1606E | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS1606ED | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS1606M | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet stud in all materials |
| ZRS1606MD | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet stud in all materials |
| ZRS2508E | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS2508ED | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS2508M | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M10 rivet stud in all materials |
| ZRS2508MD | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M10 rivet stud in all materials |
