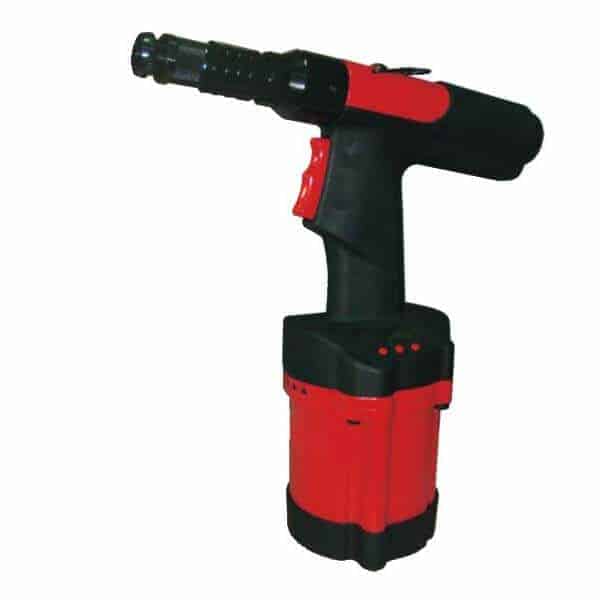

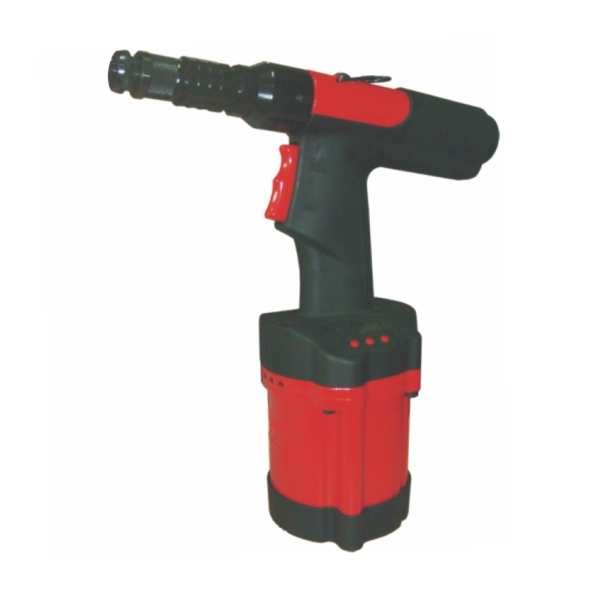

ZRS2508MD Air Rivet Stud Tool – With Digital Module
The ZRS2508MD Air Rivet Stud Tool is designed to provide precise, fast, and reliable installation of rivet studs across various industrial applications. Equipped with a digital module, this advanced tool ensures real-time monitoring, accurate fastener tracking, and streamlined performance. Ideal for manufacturing lines, aerospace assembly, automotive plants, and other precision-demanding environments, the ZRS2508MD enhances both productivity and quality control.
Key Features and Benefits
1. Digital Module for Advanced Monitoring
- Real-Time Data Display: Provides instant feedback on each fastening cycle for improved accuracy.
- Precise Fastening Control: Tracks torque, pressure, and cycle completion to prevent under- or over-tightening.
- Data Logging Capability: Store and export fastening data for quality assurance and process optimization.
2. High-Performance Air-Hydraulic System
- Fast Rivet Stud Installation: Optimized for high-speed production environments, minimizing downtime.
- Consistent Pressure Output: Ensures uniform fastening performance across multiple applications.
- Efficient Air Consumption: Reduces pneumatic costs while maintaining power.
3. Ergonomic and Durable Design
- Lightweight Build: Reduces operator fatigue during continuous use.
- Ergonomic Grip: Provides comfort and control, even during extended operations.
- Heavy-Duty Components: Engineered for durability, ensuring reliable performance in demanding environments.
4. Easy Maintenance and Adaptability
- Modular Design: Simplifies maintenance with easy access to internal components.
- Supports Various Rivet Stud Sizes: Compatible with multiple stud types to suit diverse applications.
- Quick Setup: Minimal downtime during tool changeovers for enhanced productivity.
Applications
- Aerospace Industry: Installing rivet studs for airframe assemblies.
- Automotive Manufacturing: Fastening components in vehicle body and chassis.
- Electronics & Appliances: Attaching rivet studs to casings and enclosures.
- Construction and Infrastructure: Assembling structural frameworks and panels.
Why Choose the ZRS2508MD Air Rivet Stud Tool?
The ZRS2508MD offers unmatched precision, reliability, and traceability, making it the perfect choice for industries requiring fast and accurate stud fastening. With its digital module, this tool provides comprehensive insights into your fastening processes, ensuring top-tier quality control and process optimization.
Whether working on high-volume production lines or critical assemblies, the ZRS2508MD delivers flawless performance with minimal downtime—ensuring your operation runs smoothly and efficiently.
Equip your operation with the ZRS2508MD Air Rivet Stud Tool and experience the next level of performance, precision, and productivity.
FOR METRIC SYSTEM
Features
- It features the most advanced patented digital module, enabling operators to know the rivet tool setting capacity instantly under various air supply conditions and the rivet setting cycles performed during their working period.
- It will also remind operators when to do service or maintenance to the tool at proper intervals.
- It will help to cease the controversy about warranty issues, especially if the tool has been misused or abused with abnormally high air pressure that exceeds the design specification.
- It is built with patented “Module units assembled in composite clam shell housing” for ease of tool service.
- Forged and heat-treated aluminum alloy made Hydraulic Section for the best rigidity.
- Easy adjustable Head & Nut designed for obtaining the most effective stroke.
- Ergonomic texture-coated composite housing for operator’s comfort.
- Swivel air inlet design for maneuverability works.
- Aluminum Alloy Forged Hydraulic Section
- Adjustable Stroke
- Air Motor
- Air Actuating Module
- Composite Clam Shell Housing
- AAA Battery Port
- LCD Module
- USB Port
Specification:
- Traction Power: 5500(2500) Ibf(kgf)
- Stroke Length: 8 mm
- Net Weight: 5.4(2.4) lbs(kgs)
- Rivet Nut / Rivet Stud Setting Capacity: M4~M10 rivet stud in all materials
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of your selected model.
| Model | Traction Power lbf(kgf) |
Stroke Length inch(mm) |
Net Weight lbs(kgs) |
Rivet Nut / Rivet Stud Setting Capacity |
| ZRN1606E | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet nut in Hex./Steel 1/2″-13 need 100psi/7 bar operating pressure |
| ZRN1606ED | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet nut in Hex./Steel 1/2″-13 need 100psi/7 bar operating pressure |
| ZRN1606M | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet nut in Hex./Steel M12 needs 100psi/7 bar operating pressure |
| ZRN1606MD | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet nut in Hex./Steel M12 needs 100psi/7 bar operating pressure |
| ZRN2508E | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~1/2″-13 rivet nut in all materials |
| ZRN2508ED | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~1/2″-13 rivet nut in all materials |
| ZRN2508M | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M12 rivet nut in all materials |
| ZRN2508MD | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M12 rivet nut in all materials |
| ZRS1606E | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS1606ED | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS1606M | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet stud in all materials |
| ZRS1606MD | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet stud in all materials |
| ZRS2508E | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS2508ED | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS2508M | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M10 rivet stud in all materials |
| ZRS2508MD | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M10 rivet stud in all materials |
