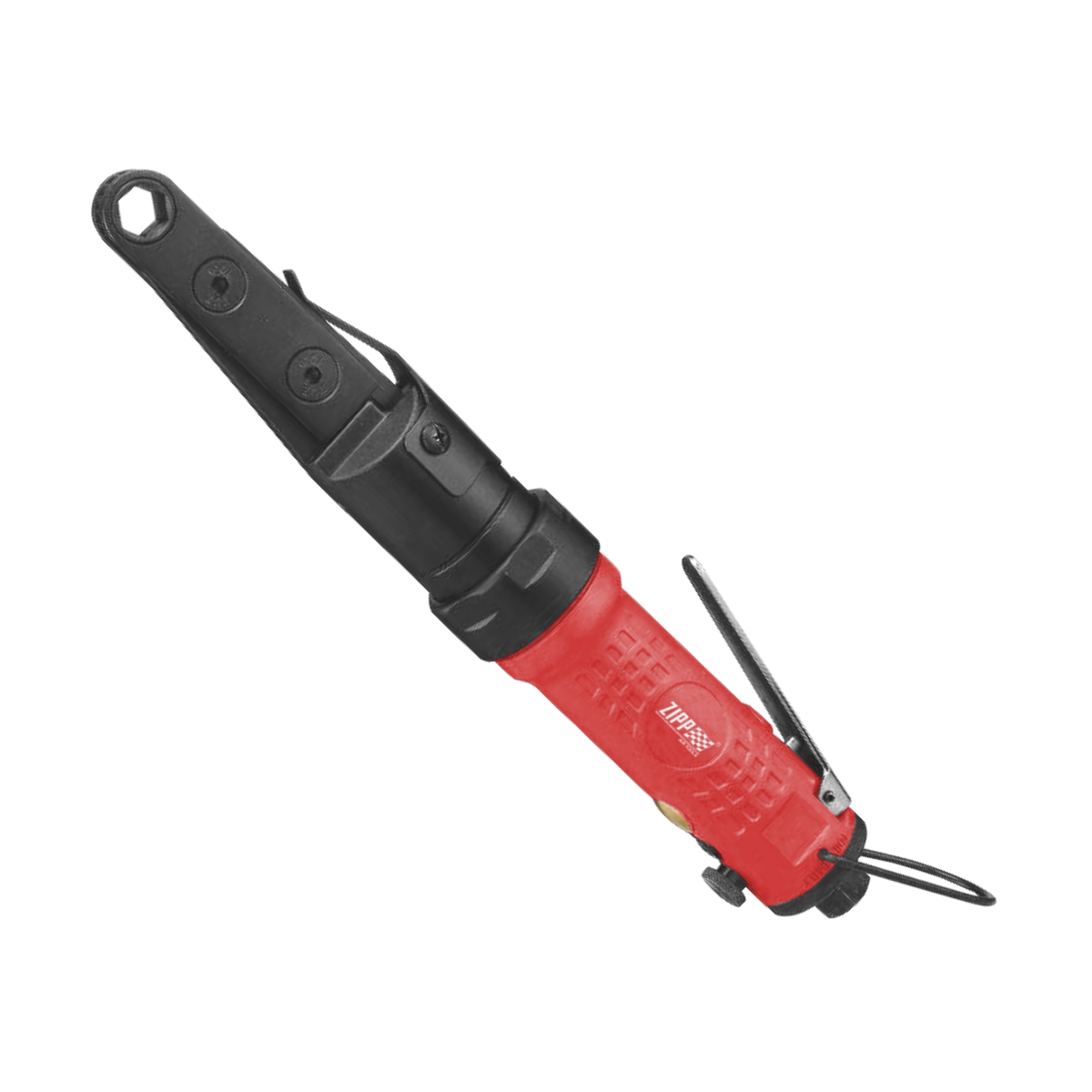

ZRW-925LS Air Ratchet Wrench – Rear Exhaust







The ZRW-925LS Air Ratchet Wrench is a versatile and reliable tool designed for professional-grade applications in the automotive, industrial, and maintenance sectors. Engineered for durability and efficiency, it features a rear exhaust system that enhances safety and cleanliness during operation. Its compact design and high-performance capabilities make it the perfect solution for routine and demanding tasks.







Key Features:







1. High Torque Performance
   • Provides consistent torque for efficient fastening and loosening of fasteners.
   • Capable of handling light to medium-duty tasks with precision.
2. Rear Exhaust System
   • Directs exhaust air away from the operator to maintain a safe working environment.
   • Prevents air-blown debris for cleaner operations.
3. Compact and Lightweight Design
   • It is ideal for working in tight spaces and hard-to-reach areas.
   • Reduces operator fatigue with its portable and ergonomic design.
4. Durable Construction
   • Crafted from robust materials to withstand tough working conditions.
   • Reliable performance over extended periods of use.
5. Ergonomic Handle
   • Provides a firm, non-slip grip for better control and comfort.
   • Designed to reduce hand strain during prolonged usage.







Specifications:







• Drive Size: 3/8 inch
• Torque Range: Precision-tuned for versatile applications.
• Air Inlet Size: Compatible with standard air systems.
• Exhaust Type: Rear exhaust for operator safety and comfort.
• Weight: Lightweight for enhanced maneuverability.
• Noise Level: Designed for low-noise operation to reduce workplace distractions.







Applications:







1. Automotive Repairs
   • Efficiently removes and installs fasteners in engines, interiors, and bodywork.
2. Industrial Maintenance
   • It is ideal for assembly lines and repair tasks in industrial setups.
3. Workshop and DIY Projects
   • A versatile tool for various home maintenance and repair activities.
4. Confined Space Operations
   • A compact build ensures easy access to tight or narrow spaces.







Advantages of the ZRW-925LS Air Ratchet Wrench:







• Consistent Power Output: Provides reliable torque for precision work.
• Enhanced Safety: The rear exhaust system keeps debris and air discharge away from the operator.
• Ease of Use: Lightweight and ergonomic design simplifies handling during extended tasks.
• Durability: Built to last, even in demanding industrial environments.
• Versatility: Suitable for a wide range of professional and personal applications.







Why Choose the ZRW-925LS Air Ratchet Wrench?







The ZRW-925LS is the ultimate combination of performance, reliability, and user comfort. Its rear exhaust system, compact design, and high torque output make it an indispensable tool for professionals and hobbyists. Whether in the garage, workshop, or assembly line, this air ratchet wrench ensures efficient and precise results every time.









• The ratchet wrench can be used in narrow working spaces and fasten bolts and nuts easily.
  This unique tool can be reached in a tight place that other air tools can not.

• Remove: First, loosen the nut with a wrench, then take the nut out with an air ratchet.
• Fasten: Push the trigger to position the nut, then lock it with a torque wrench.







Specification:







• Hex Size: 10, 11, 12, 13, 14mm, 1/2″, 9/16″
• Working Torque: 11(15) ft-lb(Nm)
• MAX. Torque: 18(25) ft-lb(Nm)
• Free Speed: 250 rpm
• Air Consumption: 212(7.5) l/min(cfm)
• Overall Length: 13.07(332) inch(mm)
• Air Inlet: 1/4 P.T
• Net Weight: 4.23(1.92) lb(kg)
• Sound Level: 87 dB(A)

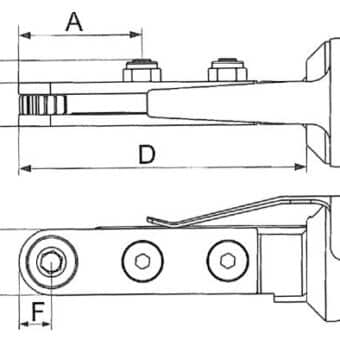

Model	A	B	C	D	E	F
	mm	mm	mm	mm	mm	mm
ZRW-919LS	38.2	20	13.2	88.2	20	10.2
ZRW-925LS	44.4	26	18	109	25.2	12.2
ZRW-925LSB	51	26	18	115	33.2	16.6
ZRW-920LS	51	26	18	115	33.2	16.6
ZRW-938LS	59	26	18	123	41	20.5



Air Ratchet Wrench Order Code Reference
Model	ZRW-919LS	ZRW-925LS	ZRW-925LSB	ZRW-920LS	ZRW-938LS
Hex Size	Order Code
6mm	ZRW-919LS-6
7mm	ZRW-919LS-7
8mm	ZRW-919LS-8
9mm	ZRW-919LS-9
10mm	ZRW-919LS-10	ZRW-925LS-10	ZRW-925LSB-10	ZRW-920LS-10
11mm	ZRW-919LS-11	ZRW-925LS-11	ZRW-925LSB-11	ZRW-920LS-11
12mm	ZRW-919LS-12	ZRW-925LS-12	ZRW-925LSB-12	ZRW-920LS-12
13mm		ZRW-925LS-13	ZRW-925LSB-13	ZRW-920LS-13
14mm		ZRW-925LS-14	ZRW-925LSB-14	ZRW-920LS-14
15mm			ZRW-925LSB-15	ZRW-920LS-15
16mm			ZRW-925LSB-16	ZRW-920LS-16
17mm			ZRW-925LSB-17	ZRW-920LS-17
18mm			ZRW-925LSB-18	ZRW-920LS-18
19mm			ZRW-925LSB-19	ZRW-920LS-19
21mm					ZRW-938LS-21
22mm					ZRW-938LS-22
23mm					ZRW-938LS-23
24mm					ZRW-938LS-24
25mm					ZRW-938LS-25
26mm					ZRW-938LS-26
27mm					ZRW-938LS-27
1/4″	ZRW-919LS-1/4″
3/8″	ZRW-919LS-3/8″
1/2″		ZRW-925LS-1/2″
9/16″		ZRW-925LS-9/16″
11/16″			ZRW-925LSB-11/16″	ZRW-920LS-11/16″



Model	Hex Size mm	Working Torque ft-lb(Nm)	MAX. Torque ft-lb(Nm)	Free Speed rpm	Air Consumption l/min(cfm)	Overall Length inch(mm)	Air Inlet P.T	Net Weight lbs(kgs)	Sound Level dB(A)

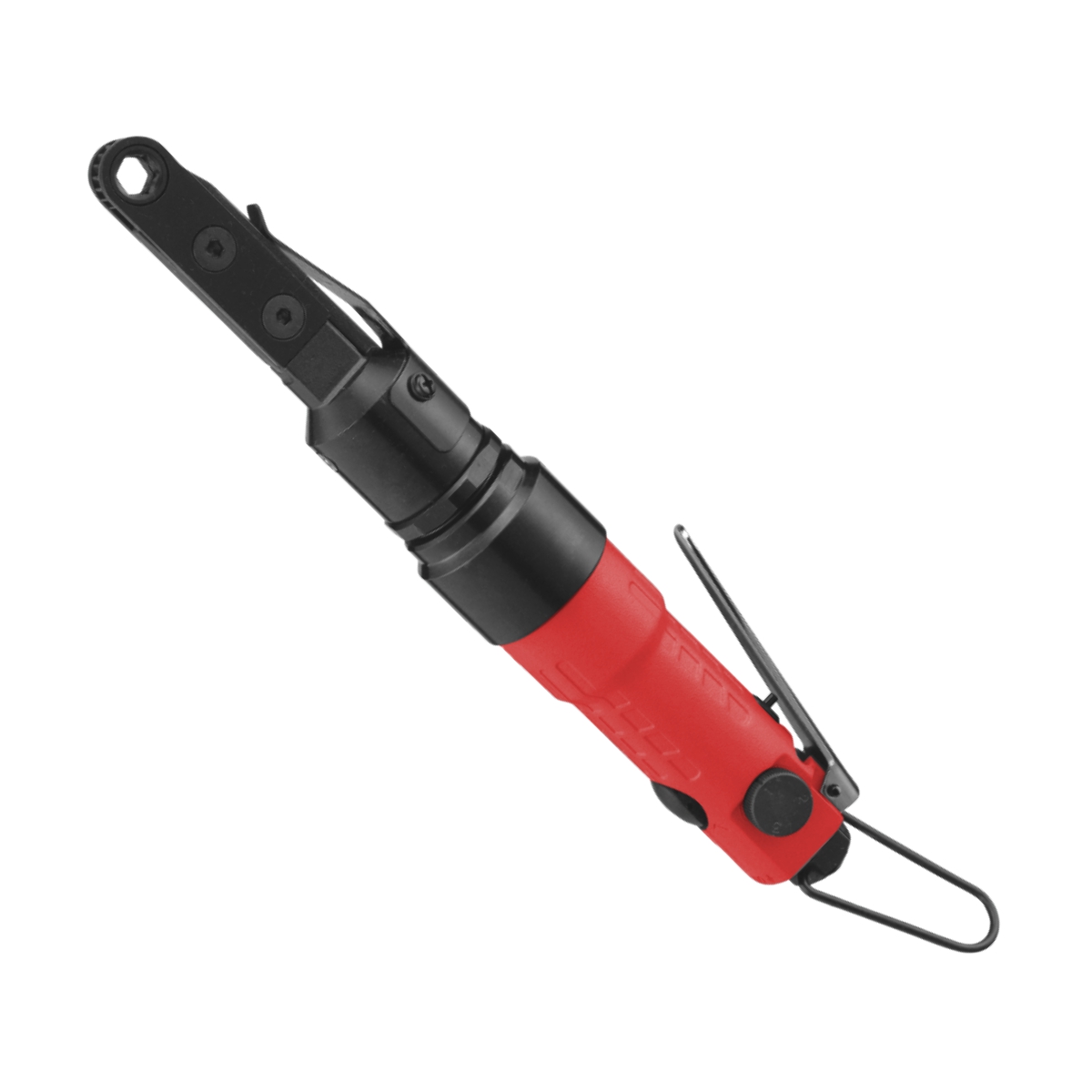

ZRW-919LS	6, 7, 8, 10, 11, 12, 1/4″, 3/8″	7(10)	7(10)	180	127(4.5)	11.81(300)	1/4	2.87(1.3)	86
ZRW-925LS	10, 11, 12, 13, 14, 1/2″, 9/16″	11(15)	18(25)	250	212(7.5)	13.07(332)	1/4	4.23(1.92)	87
ZRW-925LSB	10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 11/16″	11(15)	18(25)	160	212(7.5)	13.3(338)	1/4	4.4(2)	87

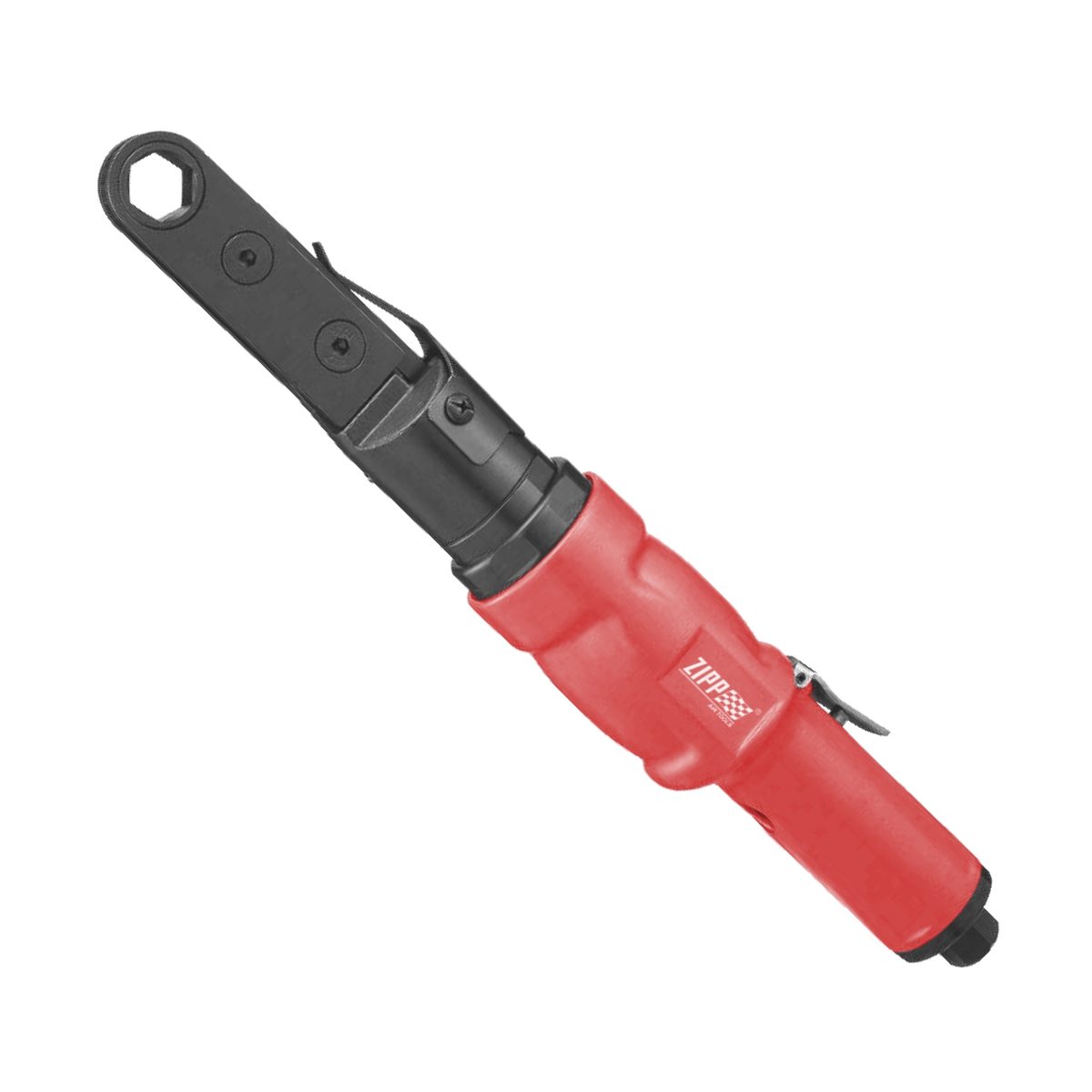

ZRW-920LS	10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 11/16″	59(80)	66(90)	150	353(12.5)	15.35(390)	1/4	5.33(2.42)	92

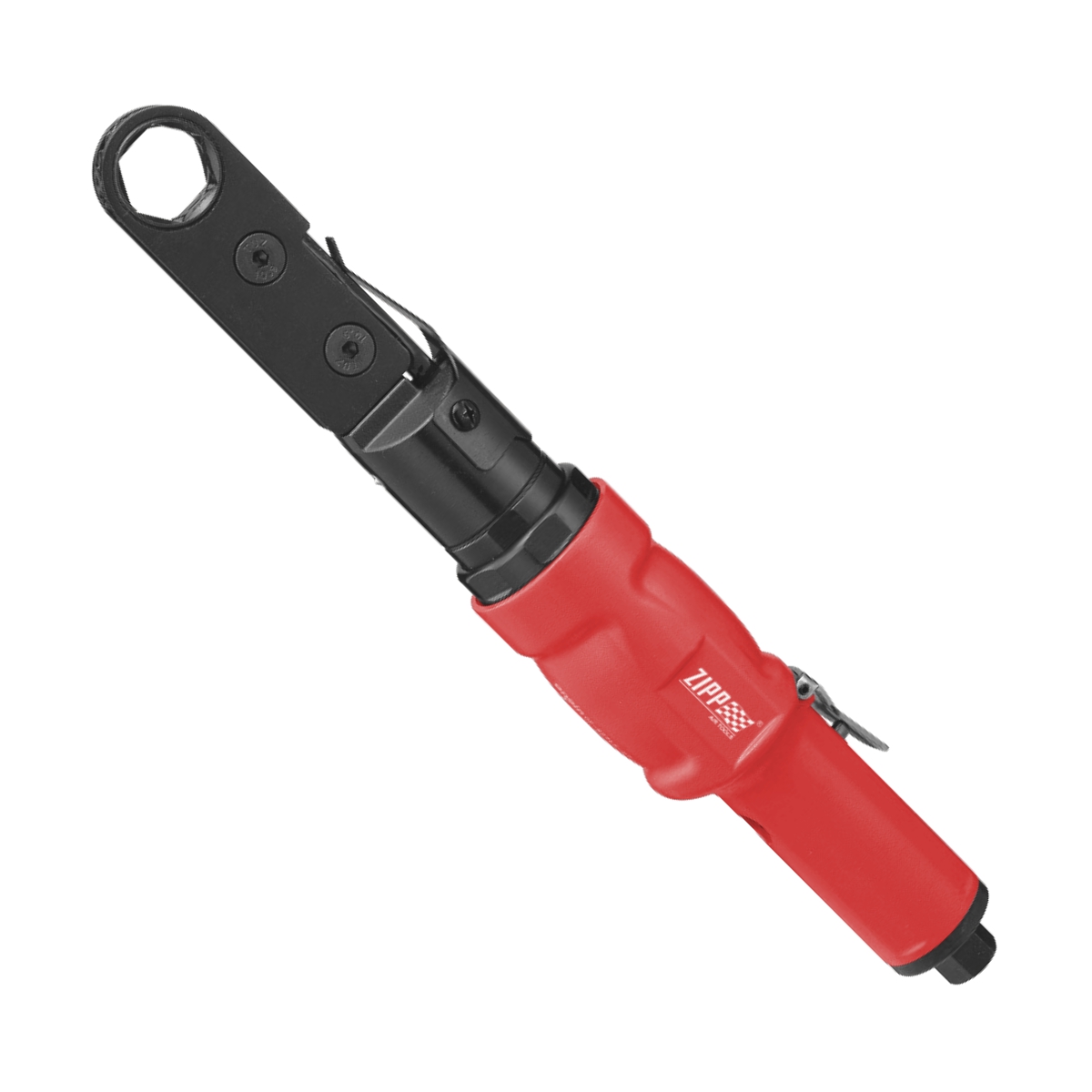

ZRW-938LS	21, 22, 23, 24, 26, 27	59(80)	66(90)	130	353(12.5)	15.66(398)	1/4	5.46(2.48)	92

Recommended Gauge Air Pressure: 60~90psi
