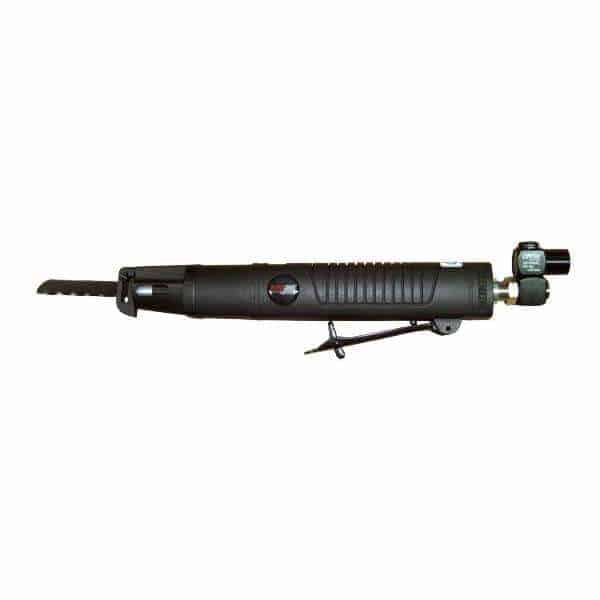

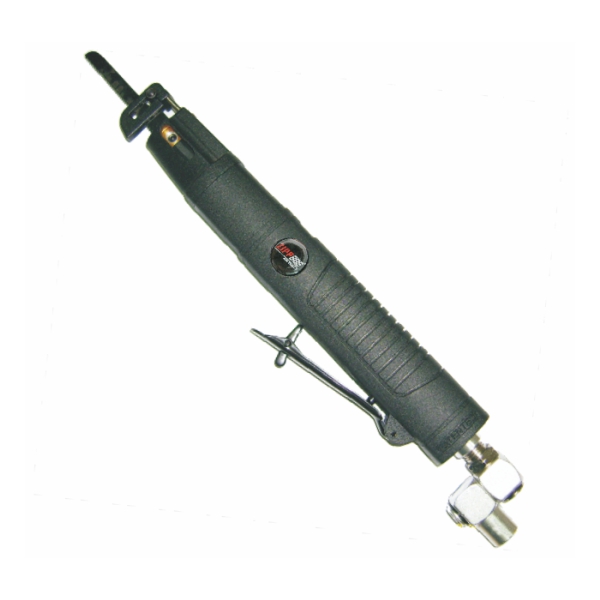

ZS317 Low Vibration Air Pipe Saw

ZS317 Low Vibration Air Pipe Saw – Metal Housing







The ZS317 Low Vibration Air Body Saw is an advanced tool for precisely cutting pipes and tubes in industrial, automotive, and construction environments. With its low-vibration design and metal housing, this air-powered saw ensures operator comfort and reliability while delivering exceptional cutting performance.







Key Features







1. Low Vibration Technology
   Reduces vibrations during operation, enhancing user comfort and allowing for precise cuts over extended periods.
2. Metal Housing
   Durable metal housing offers resistance to wear and environmental factors.
3. Powerful Cutting Performance
   Engineered for rapid and accurate cuts, even on thick-walled pipes and various materials, including steel, aluminum, and plastics.
4. Adjustable Blade Guard
   It provides added safety and versatility, accommodating various pipe diameters and cutting angles.
5. Ergonomic Design
   Features a comfortable grip and balanced construction for superior handling, even in tight or awkward spaces.
6. Efficient Exhaust System
   Channels exhaust away from the operator and work surface, maintaining a clean and safe working environment.







Benefits







• Operator Comfort: Low vibration and lightweight design reduce fatigue, promoting prolonged and accurate use.
• Enhanced Durability: Composite housing ensures resistance to heavy-duty applications and harsh conditions.
• High Precision: Delivers clean, precise cuts, reducing the need for additional finishing or adjustments.
• Versatile Applications: Suitable for various pipe materials and diameters, meeting diverse industrial needs.
• Increased Safety: Adjustable blade guard and low-vibration technology enhance operator safety.





Applications







• Pipe Installation: Ideal for cutting pipes to precise lengths during plumbing, HVAC, and construction projects.
• Industrial Maintenance: Perfect for on-site repairs or modifications to existing piping systems.
• Automotive Repairs: Useful for exhaust and intake system modifications or replacements.
• Fabrication Projects: Suitable for cutting custom-sized pipes and tubes for various industrial applications.







Why Choose the ZS317 Low Vibration Air Body Saw?







The ZS317 Low Vibration Air Body Saw is designed with both performance and user comfort. Its low-vibration operation and metal housing make it easy to handle, while its powerful cutting capabilities ensure clean, efficient results. Whether working on-site or in a workshop, the ZS317 is a versatile and reliable tool that meets the demands of professional cutting tasks with ease and precision.







Features







• Designed with the following patents to assure extremely low vibration and operator’s comfort.
  1) Portable pneumatic tool assembled with clam shell composite housing module units.
  2) Suspension vibration-reducing means for portable pneumatic tools.
• Engineering plastic-made clam-shell housing designed for easy service.
• Patented universal swivel air inlet joint for the best maneuverability of the tool.
• Safety triggers to prevent accidental start-ups and provide operator comfort.
• The rear exhaust directs air away from the workpiece.















• Adjustable Saw Blade Guard
• Tool-Less Saw Blade Holder
• Suspension Damping Spring
• Operating Module
• Air Actuating Module
• Air Inlet Module
• Safety Trigger
• Rear Exhaust
• Clam-shell composite housing







Specification:







• Blows Per Minute: 5000 bpm
• Stroke Length: 25 mm
• Avg. Air Cons.: 3(90) cfm(l/min)
• Net Weight: 2.1(0.96) lbs(kgs)
• Air Inlet Size: 1/4 inch-NPT/PT
• Min. Hose Size: 3/8(10) inch(mm)
• Vibration: 3.9 m/s²
• Sound Pressure: 85 dB(A)

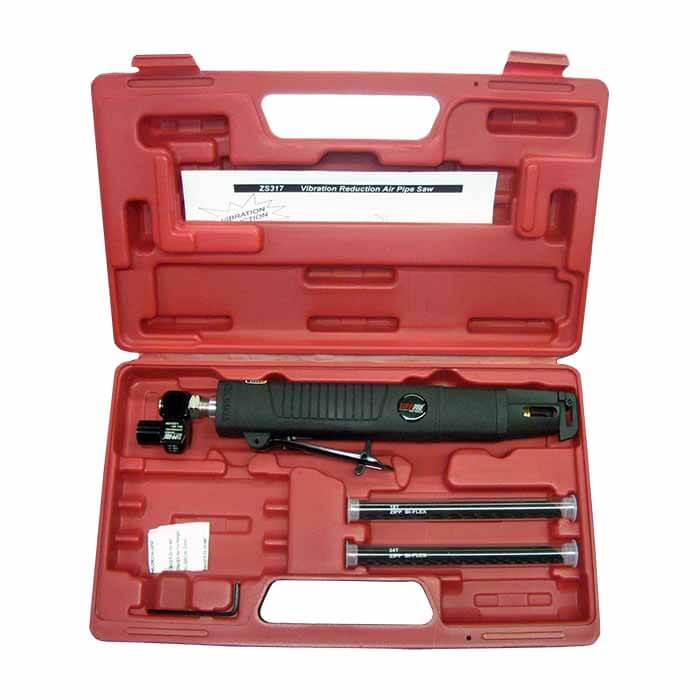

ZS317K







Kit include:







• Bi-metal blades
  18T X 5
  24T X 5







For ZS317, ZS317M, ZS329, ZS329H

*10mm stroke models suit 2mm steel sheet cutting.
*25mm stroke models suit 5mm steel sheet or pipe cutting.







A comparison chart featuring competitive designs is available upon request.

Model	Blow Per Min bpm	Stroke Length mm	Avg. Air Cons. cfm(l/min)	Net Weight lbs(kgs)	Air Inlet Size inch-NPT/PT	Minch Hose Size inch(mm)	Vibration m/s²	Sound Pressure dB(A)
ZS311	9500	10	3.5(100)	1.5(0.7)	1/4	3/8(10)	1.8	85
ZS317	5000	25	3(90)	2.1(0.96)	1/4	3/8(10)	3.9	85
ZS319	9500	10	3(90)	1.12(0.51)	1/4	3/8(10)	3.7	85
ZS329	5000	25	2.8(80)	1.68(0.76)	1/4	3/8(10)	4.3	85
ZS319H	9500	10	3.5(100)	1.12(0.51)	1/4	3/8(10)	3.7	85
ZS329H	5000	25	3.5(100)	1.68(0.76)	1/4	3/8(10)	4.3	85

*Operating Air Pressure: 90psi/6.2bar
