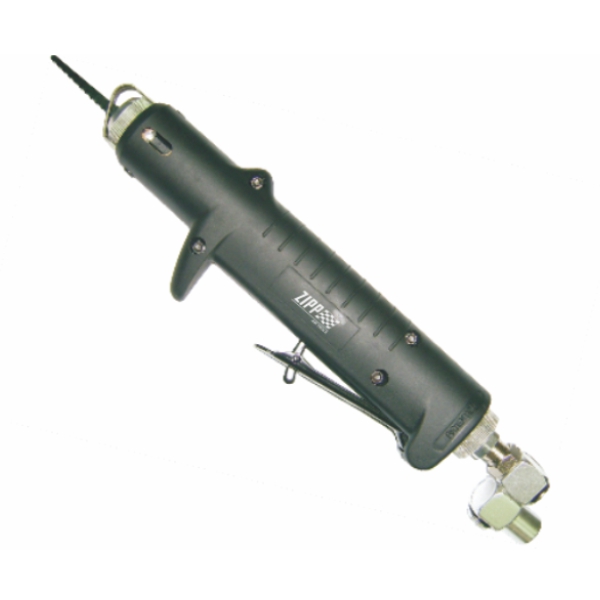

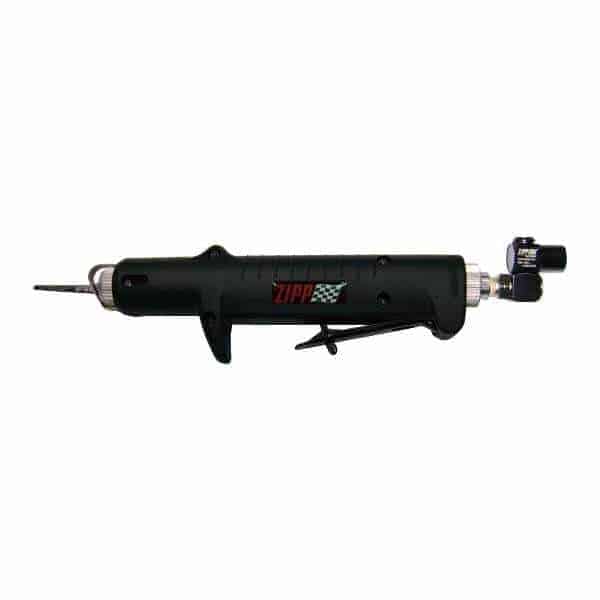

ZS319 Air Body Saw-Clam-Shell Composite Housing
Features
- Designed with following patents to assure extreme low vibration and operator’s comfort.
1)Portable pneumatic tool assembled with module units in clam shell composite housing.
2)Suspension vibration-reducing means for portable pneumatic tools. - Engineering plastic made clam-shell housing designed for easy service.
- Patented universal swivel air inlet joint for the best maneuverability of the tool.
- Safety trigger to prevent accidental start ups and provide operator’s comfort.
- Rear exhaust directs air away from work-piece.
- Adjustable Saw Blade Guard
- Tool Less Saw Blade Holder
- Suspension Damping Spring
- Operating Module
- Air Actuating Module
- Air Inlet Module
- Safety Trigger
- Rear Exhaust
- Clam-shell composite housing
Specification:
- Blows Per Minute: 9500 bpm
- Stroke Length: 10 mm
- Avg. Air Cons.: 3(90) cfm(l/min)
- Net Weight: 1.12(0.51) lbs(kgs)
- Air Inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Vibration: 3.7 m/s2
- Sound Pressure: 85 dB(A)
ZS319K
Kit include:
- Bi-metal blades
18T X 5
24T X 5
32T X 5
For ZS311, ZS311M, ZS315, ZS319, ZS319H, ZS319-T2R, ZS319-T2B
*10mm stroke models are good for 2mm steel sheet cutting.
*25mm stroke models are good for 5mm steel sheet or pipe cutting.
COMPARISON CHART WITH COMPETITIVE DESIGNS IS AVAILABLE UPON REQUEST.
| Model | Blow Per Min bpm | Stroke Length mm | Avg. Air Cons. cfm(l/min) | Net Weight lbs(kgs) | Air Inlet Size inch-NPT/PT | Minch Hose Size inch(mm) | Vibration m/s² | Sound Pressure dB(A) |
| ZS311 | 9500 | 10 | 3.5(100) | 1.5(0.7) | 1/4 | 3/8(10) | 1.8 | 85 |
| ZS317 | 5000 | 25 | 3(90) | 2.1(0.96) | 1/4 | 3/8(10) | 3.9 | 85 |
| ZS319 | 9500 | 10 | 3(90) | 1.12(0.51) | 1/4 | 3/8(10) | 3.7 | 85 |
| ZS329 | 5000 | 25 | 2.8(80) | 1.68(0.76) | 1/4 | 3/8(10) | 4.3 | 85 |
| ZS319H | 9500 | 10 | 3.5(100) | 1.12(0.51) | 1/4 | 3/8(10) | 3.7 | 85 |
| ZS329H | 5000 | 25 | 3.5(100) | 1.68(0.76) | 1/4 | 3/8(10) | 4.3 | 85 |
*Operating Air Pressure: 90psi/6.2bar
