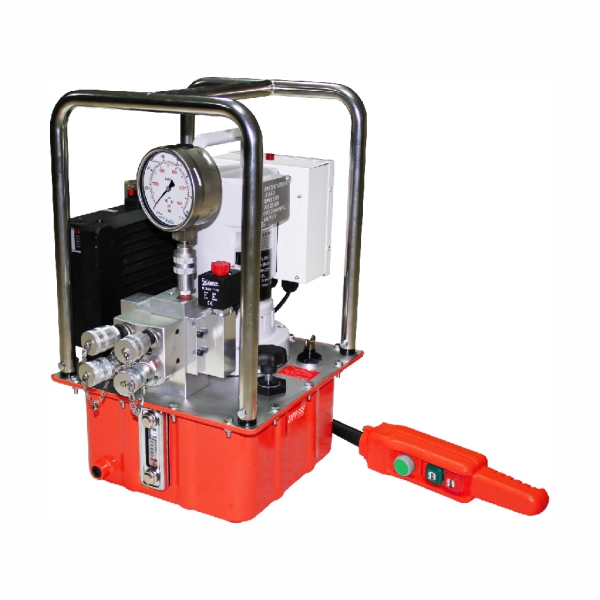

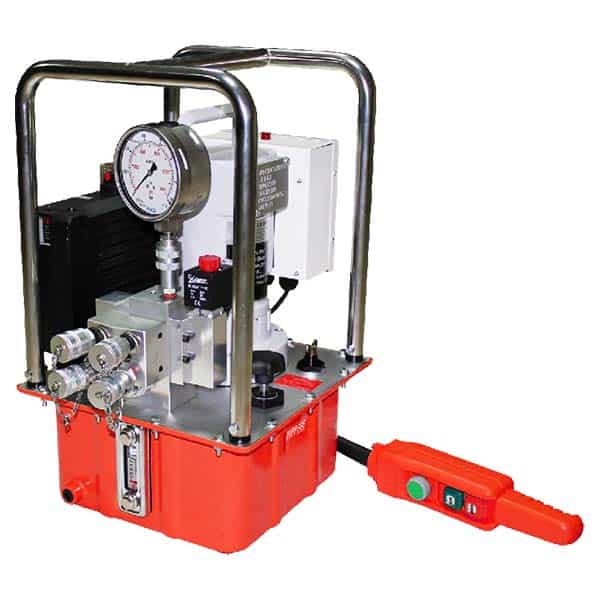

ZSPE-554 Hydraulic Electric Pump for Torque Wrench

ZSPE-554 Hydraulic Electric Pump for Torque Wrench

Hydraulic Electric/Torque Wrench Pump

• External adjustable pressure regulator.

• Retract side internal relief valve protects tool.

• ZSPE-554TQ series: just use with Hydraulic Torque Wrench.

• ZSPE-554TQJ series: just use with Hydraulic lift applications.

• Opt eight 1/4″ ports (include female and male couplers with dust cap), that can synchronize work for 4 hydraulic wrench.

• It can be set automatic stop moving as motor idle running till 20

• Safety start: After stopping, need to press another start button to continue.

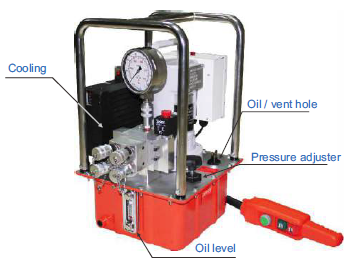

• Heat Exchanger Kit: Design air cooling to avoid pump overheating and costly repair from long work periods.

Custom build your Electric/Torque Wrench Pump:

O.Type

TQ= just use in Torque Wrench
TQJ= using in lift applications

1.Voltage

1= 115V
2= 230V

2.Hz

5= 50Hz I 60Hz

3.Phase

1= single phase

4.Reservoir (Lx0.26= gal)

8= 8L(2.1 gal)
20= 20L(5.2gal)
*User can order suitable reservoir.

5.Manifold (include 1/4″ male-female coupler)

1= 1 manifold with 1 male and 1 female coupler
2= 1 manifold with 2 male and 2 female couplers (standard)
3= 1 manifold with 3 male and 3 female couplers
4= 1 manifold with 4 male and 4 female couplers

6.Optional

W= Wheel
O= Cool system
G= Pressure Gauge
