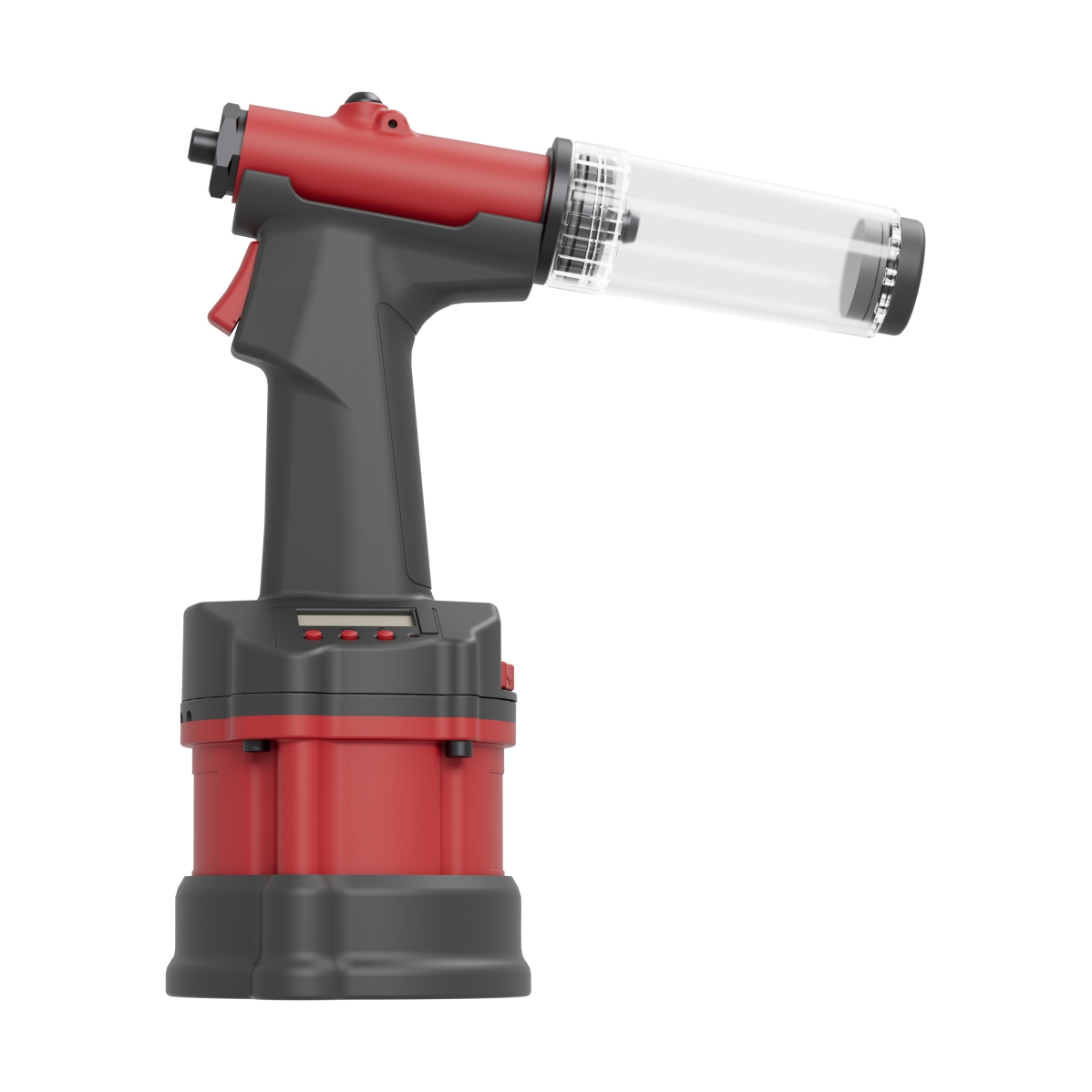

ZT0520CM Aviation Nut Plate Installation Tool

ZT0520CM Aviation Nut Plate Installation Tool

The ZT0520CM Aviation Nut Plate Installation Tool is a precision air-hydraulic fastening solution designed for installing aviation nut plates and anchor nuts in aerospace assembly and maintenance operations. Engineered for reliability and consistent performance, it delivers stable pulling force and repeatable installation results required for critical aircraft fastening applications. Featuring a compact air hydraulic drive system, the ZT0520CM provides smooth operation and controlled installation without electronic complexity. Its lightweight construction, ergonomic handling, and durable internal components make it ideal for aircraft production lines, aerospace component manufacturing, and maintenance, repair, and overhaul environments where precision and dependability are essential.

Key Features

• Designed for the aviation nut plate and anchor nut installation

• An air hydraulic drive system provides a stable and consistent pulling force

• Compact body design for confined aircraft structures and assemblies

• Lightweight construction reduces operator fatigue

• High repeatability ensures uniform installation quality

• Smooth operation with controlled riveting cycle

• Automatic mandrel handling improves workflow efficiency

• Durable internal components for continuous industrial use

• Optimized pneumatic efficiency reduces air consumption

• Simple mechanical operation for high reliability and easy maintenance

Applications

The ZT0520CM Aviation Nut Plate Installation Tool is ideal for aerospace fastening applications, including

• Aircraft fuselage and wing assembly

• Installation of aviation nut plates and anchor nuts

• Aerospace structural component manufacturing

• Aircraft maintenance, repair, and overhaul operations

• Defense and aviation production facilities

• Precision fastening tasks requiring consistent installation force

Performance Advantages

Consistent Installation Quality
Stable air hydraulic performance ensures uniform fastening results

High Productivity
Fast operating cycle improves assembly efficiency

Operator Comfort
Lightweight and balanced design supports extended operation periods

Mechanical Reliability
Simple pneumatic hydraulic system minimizes operational complexity

Low Maintenance Requirements
Durable components reduce service intervals and downtime

Cost-Efficient Operation
Long service life lowers overall operating costs

Technical Highlights

• Tool Type
  Air hydraulic aviation nut plate installation tool

• Drive System
  Pneumatic hydraulic mechanism

• Operation Mode
  Manual trigger control

• Application
  Aviation nut plate and anchor nut installation

• Housing
  High-strength lightweight alloy construction

• Pneumatic Efficiency
  Optimized airflow for stable output

• Maintenance
  Low-maintenance design with extended service intervals

Why Choose ZT0520CM

The ZT0520CM Aviation Nut Plate Installation Tool is an ideal choice for aerospace professionals seeking a reliable, lightweight, and mechanically robust solution for nut plate installation. Its air hydraulic system ensures consistent installation performance while maintaining operational simplicity and durability. Designed for aerospace assembly and maintenance environments, the ZT0520CM delivers high-quality fastening, improved productivity, and dependable long-term operation in precision aviation applications.

Features

• The ZT0520CM is an air-hydraulic tool designed for installing nut-plate rivets.
• Optional feature (D) for the most advanced patented digital module to enable the operators know the rivet tool setting capacity instantly under various air supply conditions and the rivet setting cycles performed during their working period.
• It will also remind operators when to do service or maintenance on the tool at the proper intervals.
• It will help resolve the warranty dispute, especially if the tool has been misused or abused by applying abnormally high air pressure that exceeds the design specification.
• Built with patented “Module units assembled in composite clam shell housing” for the ease of tool service.
• Patented “Broken mandrel vacuum collection system” for the cleanliness and safety of the work area.
• Forged and heat-treated aluminum alloy made Hydraulic Section for the best rigidity.
• The swivel air inlet design improves maneuverability.
• Please refer to the chart below to select the proper pulling heads. All heads need to be purchased separately.

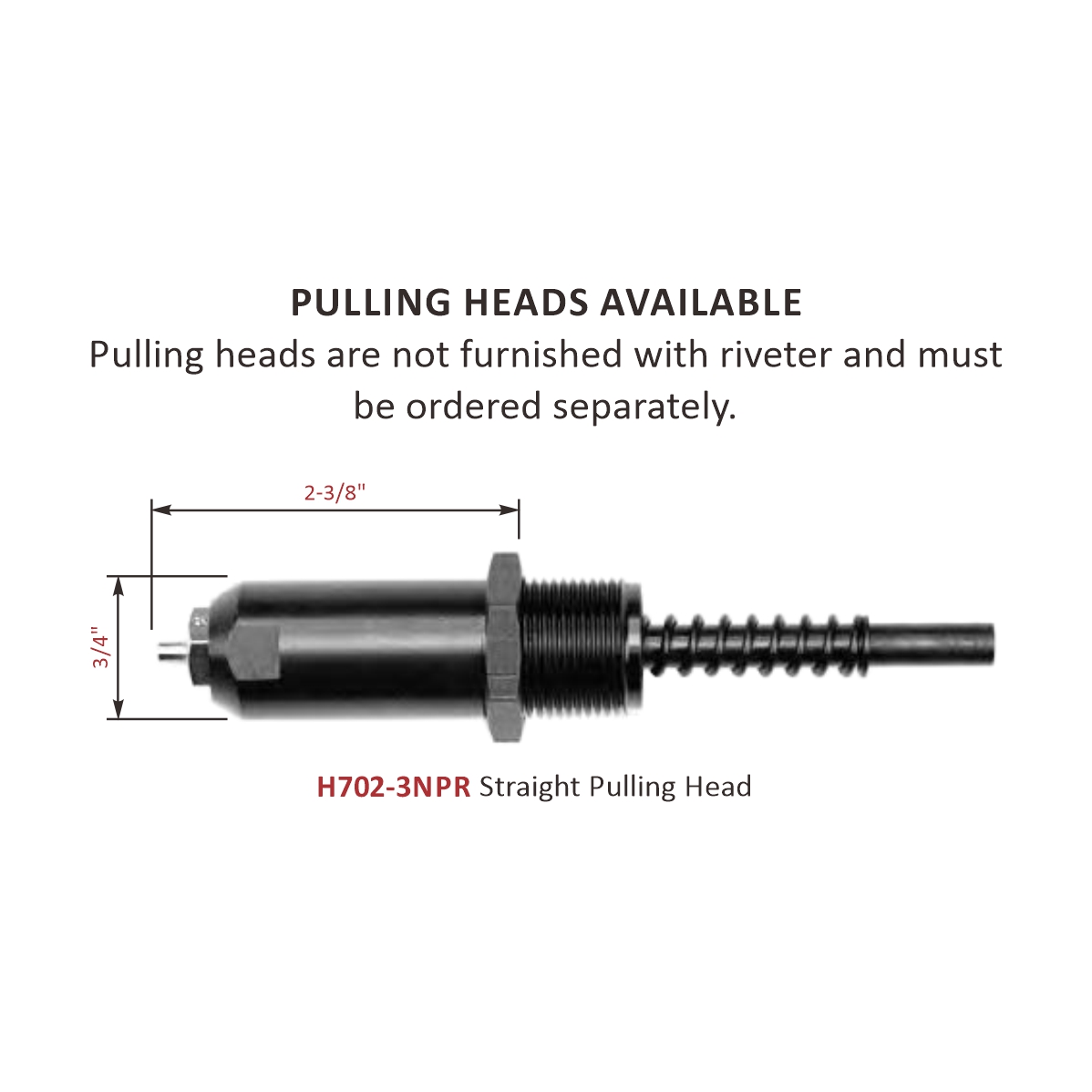

PULLING HEADS AVAILABLE
Pulling heads are not furnished with a riveter and must be ordered separately.

*Both nosepieces are included with the pulling head.
More detailed information on these pulling heads is available at www.cherryaerospace.com. More details about this tool are available on our website at www.cherryaerospace.com by selecting “Tooling Manuals” from the “Technical” drop-down menu.

Specification:

• Traction Power: 1102(500) Ibf(kgf)
• Stroke Length: 51/64(20) inch(mm)
• Net Weight:   Ibs(kgs)
• Nosepieces Equipped: Refer to the chart above
• Max. Capacity: Refer to the chart above

DO NOT apply air pressure above 110 psi (7.5 bar) to these tools.

SPR® is a registered trademark of Cherry Aerospace Fasteners.

*Operating Air Pressure: 90PSI/6.2bar *Air Inlet Size: 1/4 inch-NPT/PT *Min. Hose Size: 3/8″(10mm)
