ZT0520CMD Aviation Nut Plate Installation Tool

ZT0520CMD Aviation Nut Plate Installation Tool (Digital Module)

The ZT0520CMD Aviation Nut Plate Installation Tool is a precision air-hydraulic fastening tool engineered for installing aviation nut plates and anchor nuts in aerospace manufacturing and maintenance environments. Equipped with an integrated digital monitoring module, this tool enables controlled installation performance, improved process visibility, and consistent fastening quality required in aircraft assembly and repair operations. Combining a compact air hydraulic drive system with digital feedback capability, the ZT0520CMD delivers stable pulling force and repeatable installation results while supporting quality control and process verification. Its lightweight construction, ergonomic handling, and reliable performance make it ideal for aircraft production lines, aerospace component manufacturing, and MRO applications.

Key Features

• Designed specifically for the aviation nut plate and anchor nut installation

• Integrated digital module for operation monitoring and process feedback

• An air hydraulic drive system provides a stable and consistent pulling force

• Compact design allows operation in confined aircraft structures

• High repeatability for precision aerospace fastening applications

• Digital display provides a clear operational status indication

• Automatic mandrel handling improves workflow efficiency

• Ergonomic grip design reduces operator fatigue

• Durable internal components for continuous industrial use

• Optimized pneumatic system for efficient air consumption

Applications

The ZT0520CMD Aviation Nut Plate Installation Tool is ideal for aerospace fastening applications, including

• Aircraft fuselage and wing assembly

• Aviation nut plate and anchor nut installation

• Aerospace structural component manufacturing

• Aircraft maintenance, repair, and overhaul operations

• Defense and aerospace production facilities

• Precision fastening processes requiring installation verification

Performance Advantages

Precision Installation Control
Digital monitoring supports consistent installation performance and quality assurance

Improved Traceability
Digital module enables process monitoring for production documentation

Enhanced Productivity
Fast cycle time and automatic mandrel handling improve assembly efficiency

Operator Comfort
Lightweight and balanced design supports extended operation

Reliable Performance
An air hydraulic mechanism ensures stable and repeatable force output

Reduced Rework
Controlled installation minimizes fastening errors and component damage

Technical Highlights

• Tool Type
  Air hydraulic aviation nut plate installation tool with digital module

• Drive System
  Pneumatic hydraulic mechanism

• Digital Function
  Integrated monitoring module with operation feedback display

• Application
  Aviation nut plate and anchor nut installation

• Operation Mode
  Manual trigger with digital-assisted monitoring

• Housing
  High-strength lightweight alloy construction

• Pneumatic Efficiency
  Optimized airflow for stable performance

• Maintenance
  Low-maintenance design with extended service intervals

Why Choose ZT0520CMD

The ZT0520CMD Aviation Nut Plate Installation Tool is designed for aerospace professionals who require precision, repeatability, and process visibility in critical fastening operations. By combining reliable air-hydraulic performance with digital monitoring capabilities, it supports modern aerospace quality standards while maintaining ease of use and operational efficiency. Its compact structure and consistent installation performance make it a dependable solution for high-quality nut plate installation, improving productivity, reducing installation variability, and enhancing overall assembly reliability.

Features

• The ZT0520CM is an air-hydraulic tool designed for installing nut-plate rivets.

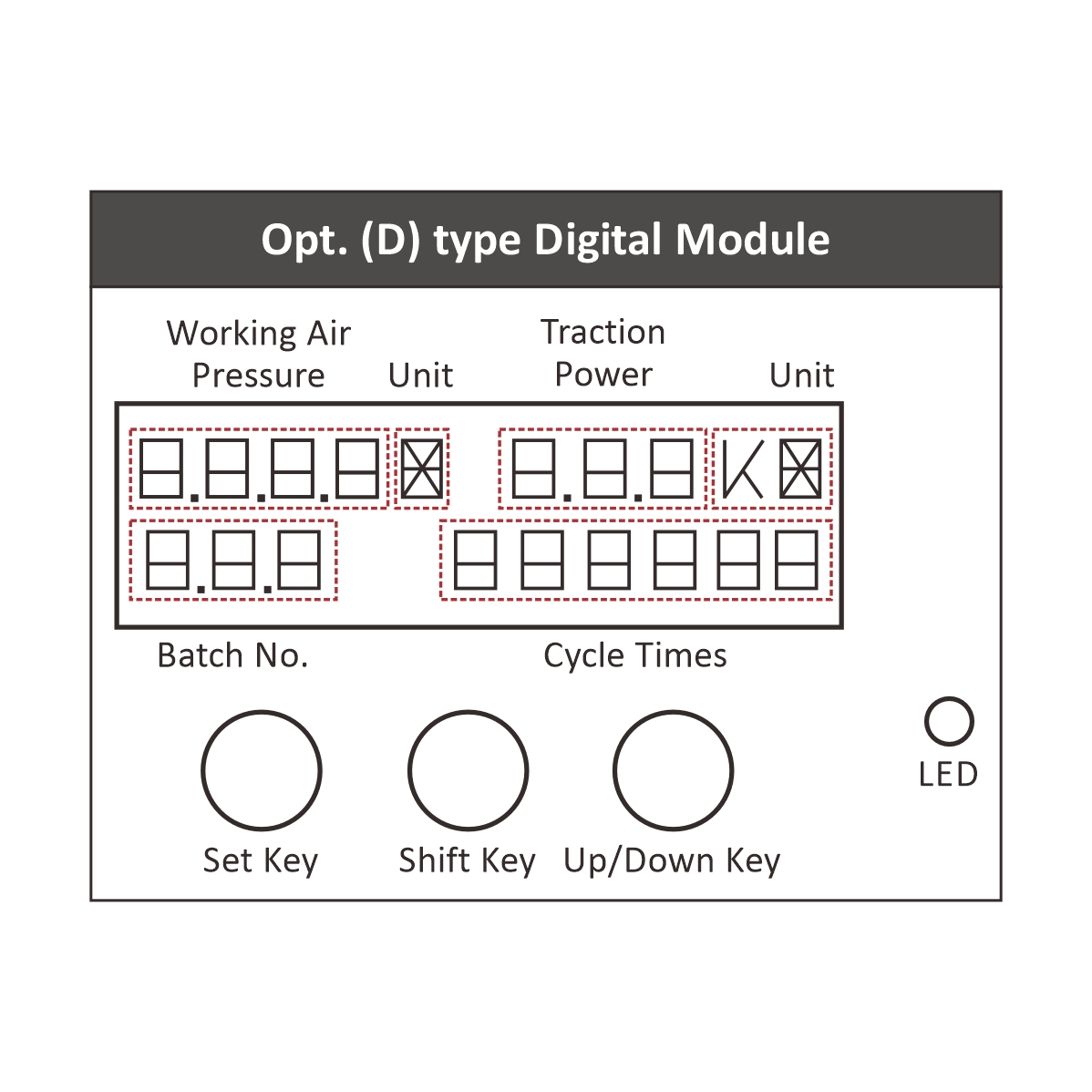

• Optional feature (D) for the most advanced patented digital module to enable the operators know the rivet tool setting capacity instantly under various air supply conditions and the rivet setting cycles performed during their working period.
• It will also remind operators when to do service or maintenance on the tool at the proper intervals.
• It will help resolve the warranty dispute, especially if the tool has been misused or abused by applying abnormally high air pressure that exceeds the design specification.
• Built with patented “Module units assembled in composite clam shell housing” for the ease of tool service.
• Patented “Broken mandrel vacuum collection system” for the cleanliness and safety of the work area.
• Forged and heat-treated aluminum alloy made Hydraulic Section for the best rigidity.
• The swivel air inlet design improves maneuverability.
• Please refer to the chart below to select the proper pulling heads. All heads need to be purchased separately.

PULLING HEADS AVAILABLE
Pulling heads are not furnished with a riveter and must be ordered separately.

*Both nosepieces are included with the pulling head.
More detailed information on these pulling heads is available at www.cherryaerospace.com. More details about this tool are available on our website at www.cherryaerospace.com by selecting “Tooling Manuals” from the “Technical” drop-down menu.

Specification:

• Traction Power: 1102(500) Ibf(kgf)
• Stroke Length: 51/64(20) inch(mm)
• Net Weight:   Ibs(kgs)
• Nosepieces Equipped: Refer to the chart above
• Max. Capacity: Refer to the chart above

DO NOT apply air pressure above 110 psi (7.5 bar) to these tools.

SPR® is a registered trademark of Cherry Aerospace Fasteners.

*Operating Air Pressure: 90PSI/6.2bar *Air Inlet Size: 1/4 inch-NPT/PT *Min. Hose Size: 3/8″(10mm)
