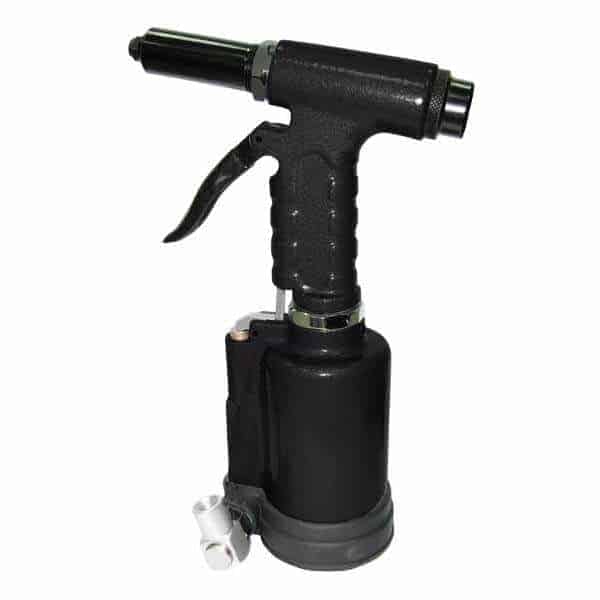

ZT0618T 3/16 Inch Air Hydraulic Riveter
The ZT0618T 3/16 inch Air Hydraulic Riveter is a compact, lightweight, and high-efficiency pneumatic tool engineered for precise and reliable fastening. It provides consistent pulling power for 3/16-inch rivets in aluminum, steel, and stainless steel. Its robust air-hydraulic mechanism ensures stable performance and long service life, while the ergonomic, low-vibration design enhances operator comfort during continuous operation. With its fast cycling speed, low air consumption, and durable construction, the ZT0618T is ideal for high-volume production environments that demand precision, speed, and long-term reliability.
Key Features
-
High-Performance Air-Hydraulic System – Provides consistent pulling force for 3/16-inch rivets, ensuring accurate and uniform riveting results.
-
Compact and Lightweight Construction – Durable aluminum alloy housing designed for ease of handling in confined or overhead work areas.
-
Ergonomic Handle and Balanced Body – Reduces fatigue and improves operator comfort during long production cycles.
-
Fast Cycle and Automatic Mandrel Ejection – Enhances productivity and reduces assembly time in high-speed operations.
-
Optimized Air Circuit – Ensures strong output with low air consumption, lowering operational costs.
-
Precision-Engineered Internal Components – Heavy-duty piston, seals, and valves ensure stable performance and long-term durability.
-
Low-Maintenance Design – A simplified internal structure allows for easy cleaning and servicing, maximizing uptime.
Applications
The ZT0618T Air Hydraulic Riveter is designed for precision fastening and assembly operations in industries such as:
-
Automotive body and trim assembly
-
Truck, trailer, and bus manufacturing
-
Aerospace structural component installation and repair
-
Electronics and appliance assembly
-
Metal furniture and sheet-metal fabrication
-
HVAC and general industrial production lines
Performance Advantages
-
Consistent Riveting Power – Provides stable clamping force for aluminum, steel, and stainless-steel rivets.
-
Lightweight and Ergonomic – Easy to handle for extended periods with reduced operator fatigue.
-
High Productivity – Quick cycle time and automatic mandrel disposal enhance throughput on production lines.
-
Durable and Reliable – Precision-engineered hydraulic and pneumatic systems ensure long-term operational stability.
-
Cost Efficiency – Low air consumption and simple maintenance minimize the total cost of ownership.
-
Smooth and Stable Operation – Balanced design reduces vibration, improving accuracy and operator safety.
Technical Benefits
-
Compatible with 3/16-inch blind rivets in aluminum, steel, and stainless steel.
-
Compact body design provides accessibility in tight working spaces.
-
Delivers consistent pulling force for repetitive, high-volume riveting applications.
-
Designed for continuous operation in industrial assembly or repair environments.
Why Choose ZT0618T
The ZT0618T 3/16 inch Air Hydraulic Riveter offers the ideal combination of power, speed, and reliability in a compact, easy-to-handle form. Engineered for precision and operator comfort, it is designed to perform consistently under continuous industrial use. With its fast cycle performance, low air consumption, and rugged construction, the ZT0618T delivers outstanding value for manufacturers seeking a dependable, high-efficiency riveting solution. It reflects our commitment to performance, quality, and innovation, making it a vital tool for modern assembly lines and professional workshops worldwide.
Applications
Wherever fastening methods like welding, sheet metal screw, bolt, nut, washer, tubular, semitubular, and solid rivets and adhesives are applied, they can be substituted by blind rivets.
All models above are suitable for setting standard blind rivets and structural blind rivets.

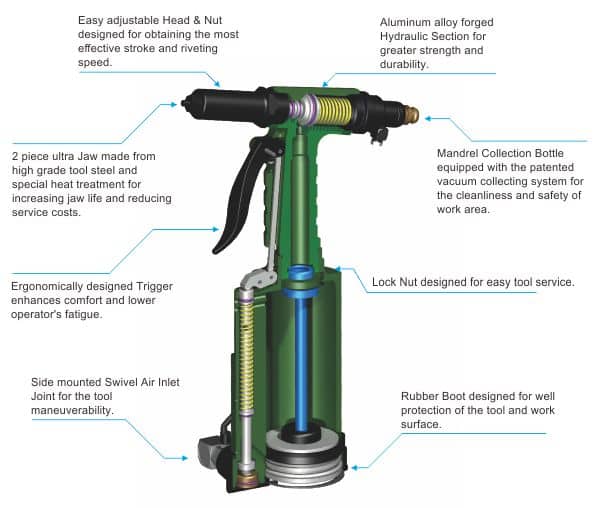

Features
- Easy-to-adjust head and nut designed for achieving the most effective stroke and riveting speed.
- Aluminum alloy forged Hydraulic Section for greater strength and durability.
- 2-piece ultra-jaw made from high-grade tool steel and featuring special heat treatment to increase jaw life and reduce service costs.
- Mandrel Collection Bottle equipped with the patented vacuum collecting system for the cleanliness and safety of the work area.
- Ergonomically designed, the Trigger enhances comfort and reduces the operator’s fatigue.
- Lock Nut is designed for easy tool service.
- Side-mounted Swivel Air Inlet Joint for the tool’s maneuverability.
- The Rubber Boot is designed to protect the tool and work surface.
Specification:
- Traction Power : 1320(596) Ibf(kgf)
- Stroke Length : 11/16(18) inch(mm)
- Net Weight : 3.30(1.50) lbs(kgs)
- Operating Air Pressure : 90(6.2) PSI(bar)
- Air inlet Size: 1/4 Inch-NPT/PT
- Min. Hose Size : 3/8(10) Inch(mm)
- Nosepieces Equipped : 3/32(2.4)1/8(3.2)5/32(4.0)3/16(4.8) Inch(mm)
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*T: Trigger Type, No-Vacuum. *L: Lever Type, No-Vacuum. *LV: Lever Type, With Vacuum
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of the model you select.
| Model | Traction Power lbf(kgf) |
Stroke Length inch(mm) |
Net Weight lbs(kgs) |
Nosepieces Equipped inch(mm) |
Max. Capacity |
| ZT0618T | 1320(596) | 11/16(18) | 3.30(1.50) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
Max. 3/16″(4.8mm) blind rivets in steel/steel |

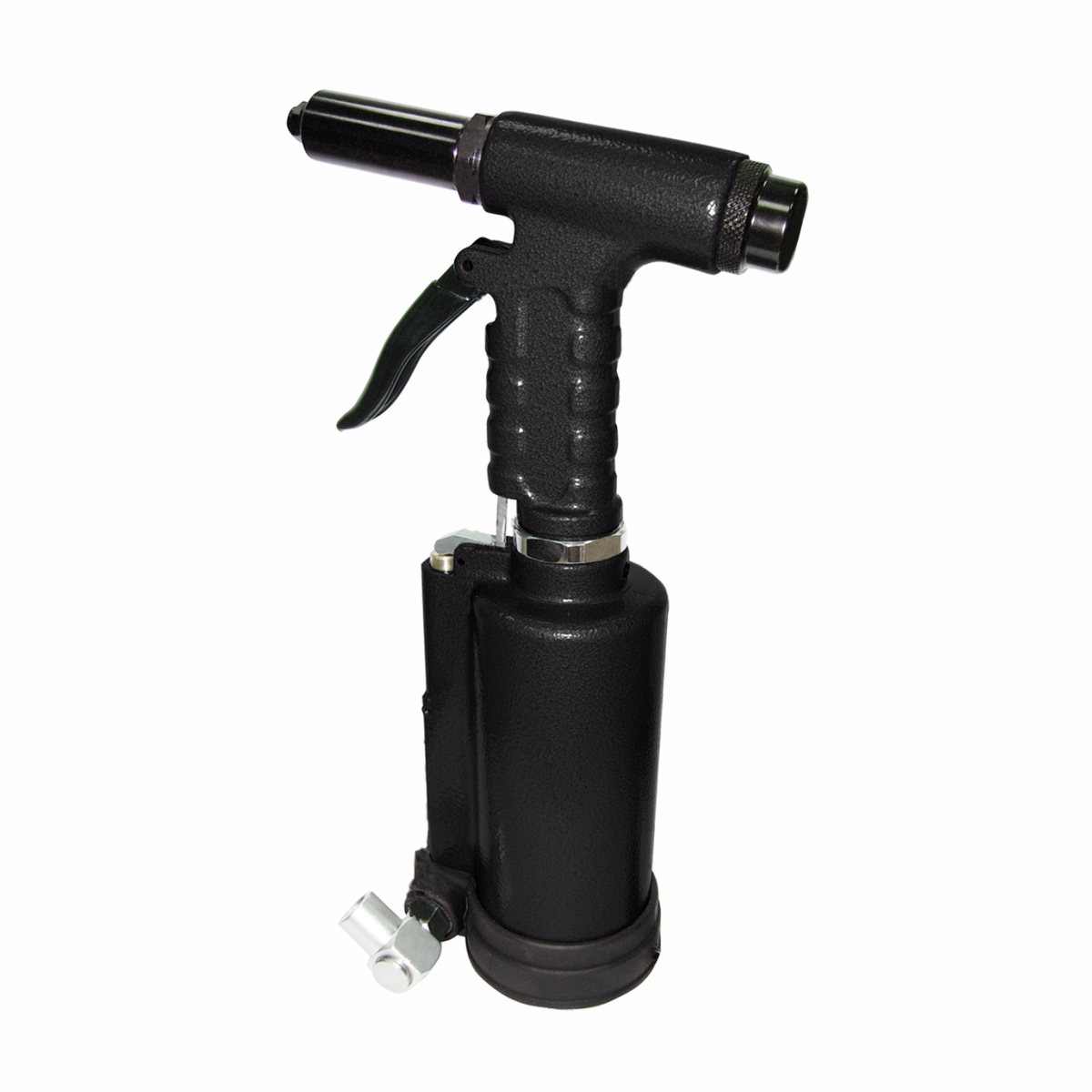

| ZT0918T | 1983(900) | 11/16(18) | 3.96(1.80) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
Max. 3/16″(4.8mm) standard & structural blind rivets in all materials |
| ZT1214T | 2460(1200) | 9/16(14) | 4.16(1.89) | 5/32(4.0)3/16(4.8) 1/4(6.4) |
Max. 1/4″(6.4mm) blind rivets in steel/steel |
| ZT1819T | 3960(1800) | 3/4(19) | 5.61(2.55) | 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) standard & structural blind rivets in all materials |
| ZT0918L | 1983(900) | 11/16(18) | 3.96(1.80) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
Max. 3/16″(4.8mm) standard & structural blind rivets in all materials |
| ZT0918LV | 1983(900) | 11/16(18) | 4.07(1.85) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
Max. 3/16″(4.8mm) standard & structural blind rivets in all materials |

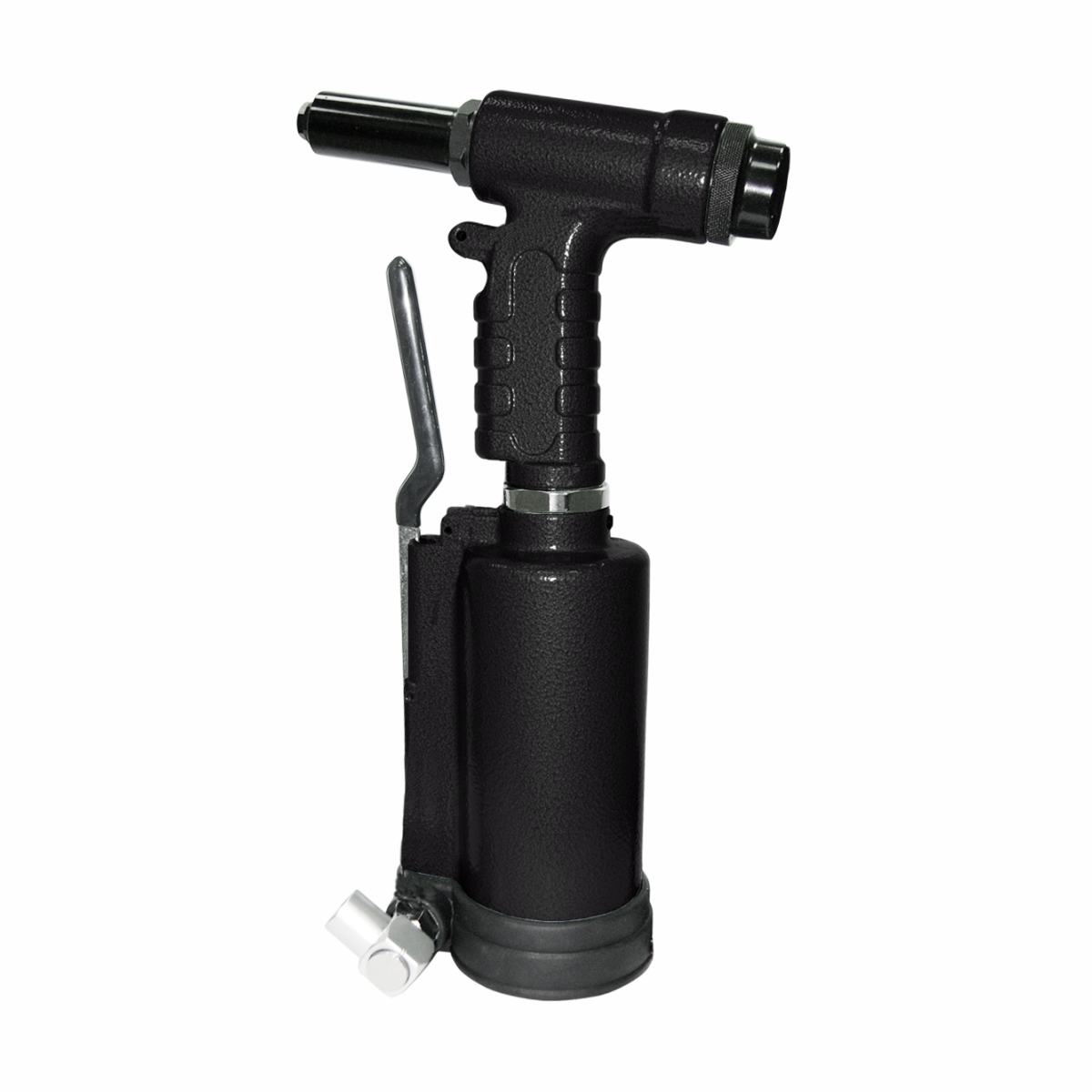

| ZT1214L | 2460(1200) | 9/16(14) | 4.16(1.89) | 5/32(4.0)3/16(4.8) 1/4(6.4) |
Max. 1/4″(6.4mm) blind rivets in steel/steel |
| ZT1214LV | 2460(1200) | 9/16(14) | 4.27(1.94) | 5/32(4.0)3/16(4.8) 1/4(6.4) |
Max. 1/4″(6.4mm) blind rivets in steel/steel |
| ZT1819L | 3960(1800) | 3/4(19) | 5.60(2.55) | 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) standard & structural blind rivets in all materials |
| ZT1819LV | 3960(1800) | 3/4(19) | 5.72(2.60) | 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) standard & structural blind rivets in all materials |
*Operating Air Pressure: 90PSI/6.2bar *Air Inlet Size: 1/4 inch-NPT/PT *Min. Hose Size: 3/8″(10mm)
