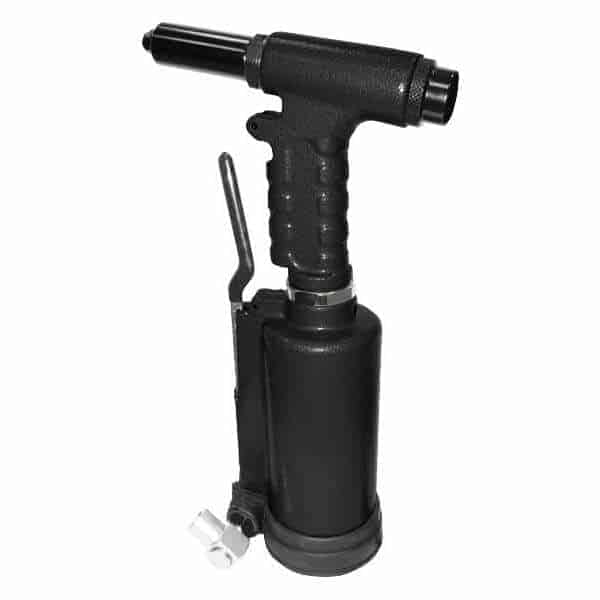

ZT0918L 3/16 Inch Air Hydraulic Riveter
The ZT0918L 3/16 inch Air Hydraulic Riveter is a compact, lightweight, and high-efficiency pneumatic tool designed for precision riveting in industrial and manufacturing environments. It delivers a stable pulling force through a powerful hydraulic drive system, providing secure and consistent fastening for 3/16-inch rivets in aluminum, steel, and stainless steel. Built with a durable aluminum housing and an ergonomic low-vibration (L) design, the ZT0918L ensures smooth operation, reduced operator fatigue, and extended service life. Its fast cycle time and energy-efficient pneumatic system make it ideal for high-volume assembly lines, fabrication facilities, and repair workshops seeking superior performance and long-term reliability.
Key Features
-
Strong Air-Hydraulic System – Provides consistent and stable pulling power for 3/16-inch rivets in multiple materials.
-
Low-Vibration Design – Reduces shock and recoil during riveting, enhancing operator comfort and precision.
-
Lightweight and Durable Construction – Reinforced aluminum body provides high strength with easy maneuverability.
-
Ergonomic Grip and Balanced Structure – Ensures operator comfort and control during extended use.
-
Fast Cycle and Automatic Mandrel Ejection – Increases productivity and streamlines the assembly process.
-
Energy-Efficient Pneumatic Circuit – Optimized airflow delivers maximum power with low air consumption.
-
Minimal Maintenance Design – Simplified internal mechanism allows for quick servicing and long-term reliability.
Applications
The ZT0918L Air Hydraulic Riveter is suitable for a wide range of precision assembly and production applications, including:
-
Automotive body and trim assembly
-
Truck, trailer, and bus fabrication
-
Aerospace structural and interior component fastening
-
Sheet metal and HVAC manufacturing
-
Industrial production lines requiring repetitive, high-quality riveting operations
Performance Advantages
-
Consistent Riveting Strength – Provides uniform clamping and secure fastening across a wide range of materials.
-
Operator Comfort – A low-vibration mechanism minimizes fatigue and enhances comfort during extended production runs.
-
Productivity Improvement – Fast cycling and automatic mandrel disposal increase throughput and operational efficiency.
-
Durable Reliability – Precision-engineered components and quality seals ensure long-term performance under demanding conditions.
-
Cost-Effective Operation – Low air consumption and reduced maintenance frequency lower total ownership cost.
-
Smooth Operation – A balanced tool body reduces recoil and noise, enhancing workplace ergonomics and stability.
Technical Benefits
-
Compatible with 3/16-inch blind rivets in aluminum, steel, and stainless steel.
-
Compact and lightweight design suitable for confined spaces and overhead operations.
-
Low-vibration and low-noise operation improve working safety and precision.
-
Designed for both manual and semi-automated assembly line applications.
Why Choose ZT0918L
The ZT0918L 3/16 inch Air Hydraulic Riveter offers the perfect balance of power, speed, and comfort for professional riveting tasks. Its durable hydraulic system, ergonomic low-vibration design, and energy-efficient performance make it an indispensable tool for modern industrial manufacturing. With its combination of reliability, user comfort, and consistent fastening precision, the ZT0918L is an ideal solution for assembly lines and workshops that prioritize quality and efficiency. It exemplifies our commitment to providing robust, operator-friendly, and performance-driven tools for global manufacturing excellence.
Applications
Wherever fastening methods like welding, sheet metal screw, bolt, nut, washer, tubular, semitubular, and solid rivets and adhesives are applied, they can be substituted by blind rivets. All models above are suitable for setting standard blind rivets and structural blind rivets.
Features
- The easy-to-adjust head and nut are designed to achieve the most effective stroke and riveting speed.
- Aluminum alloy forged Hydraulic Section for greater strength and durability.
- 2-piece ultra-jaw made from high-grade tool steel and featuring special heat treatment to increase jaw life and reduce service costs.
- Mandrel Collection Bottle equipped with the patented vacuum collecting system for the cleanliness and safety of the work area.
- Ergonomically designed, the Trigger enhances comfort and reduces the operator’s fatigue.
- Lock Nut is designed for easy tool service.
- Side-mounted Swivel Air Inlet Joint for the tool’s maneuverability.
- The Rubber Boot is designed to protect the tool and work surface.
Specification:
- Traction Power: 1983(900) Ibf(kgf)
- Stroke Length: 11/16(18) inch(mm)
- Net Weight: 3.96(1.80) lbs(kgs)
- Operating Air Pressure: 90(6.2) PSI(bar)
- Air inlet Size: 1/4 Inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Nosepieces Equipped: 3/32(2.4)1/8(3.2)5/32(4.0)3/16(4.8) inch(mm)
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*T: Trigger Type, No-Vacuum. *L: Lever Type, No-Vacuum. *LV: Lever Type, With Vacuum
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of the model you select.
| Model | Traction Power lbf(kgf) |
Stroke Length inch(mm) |
Net Weight lbs(kgs) |
Nosepieces Equipped inch(mm) |
Max. Capacity |
| ZT0618T | 1320(596) | 11/16(18) | 3.30(1.50) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
Max. 3/16″(4.8mm) blind rivets in steel/steel |
| ZT0918T | 1983(900) | 11/16(18) | 3.96(1.80) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
Max. 3/16″(4.8mm) standard & structural blind rivets in all materials |
| ZT1214T | 2460(1200) | 9/16(14) | 4.16(1.89) | 5/32(4.0)3/16(4.8) 1/4(6.4) |
Max. 1/4″(6.4mm) blind rivets in steel/steel |
| ZT1819T | 3960(1800) | 3/4(19) | 5.61(2.55) | 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) standard & structural blind rivets in all materials |
| ZT0918L | 1983(900) | 11/16(18) | 3.96(1.80) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
Max. 3/16″(4.8mm) standard & structural blind rivets in all materials |
| ZT0918LV | 1983(900) | 11/16(18) | 4.07(1.85) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
Max. 3/16″(4.8mm) standard & structural blind rivets in all materials |
| ZT1214L | 2460(1200) | 9/16(14) | 4.16(1.89) | 5/32(4.0)3/16(4.8) 1/4(6.4) |
Max. 1/4″(6.4mm) blind rivets in steel/steel |
| ZT1214LV | 2460(1200) | 9/16(14) | 4.27(1.94) | 5/32(4.0)3/16(4.8) 1/4(6.4) |
Max. 1/4″(6.4mm) blind rivets in steel/steel |
| ZT1819L | 3960(1800) | 3/4(19) | 5.60(2.55) | 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) standard & structural blind rivets in all materials |
| ZT1819LV | 3960(1800) | 3/4(19) | 5.72(2.60) | 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) standard & structural blind rivets in all materials |
*Operating Air Pressure: 90PSI/6.2bar *Air Inlet Size: 1/4 inch-NPT/PT *Min. Hose Size: 3/8″(10mm)
