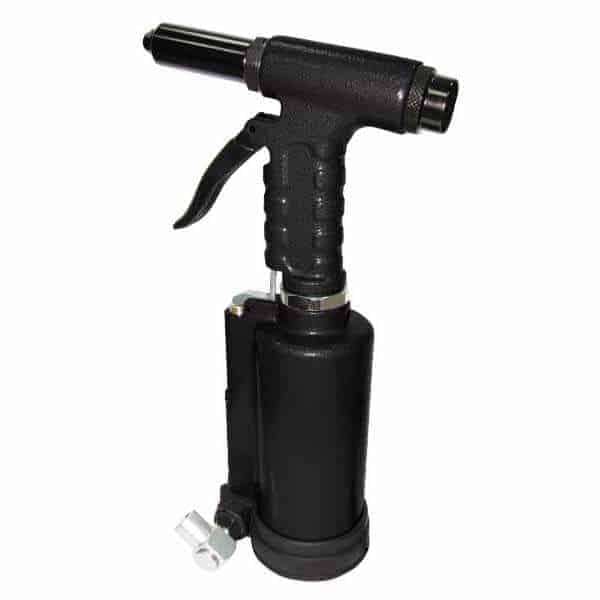

ZT0918T 3/16 Inch Air Hydraulic Riveter
The ZT0918T 3/16 inch Air Hydraulic Riveter is a compact, high-performance pneumatic riveting tool designed for strength, precision, and long-term reliability. Built with our T-series air-hydraulic technology, this model delivers a powerful and consistent pulling force for 3/16-inch rivets across a wide range of materials, including aluminum, steel, and stainless steel, making it ideal for both general manufacturing and specialized assembly applications. With its lightweight aluminum alloy housing, fast cycle time, and energy-efficient pneumatic system, the ZT0918T offers superior operator comfort and enhanced productivity. Its durable internal components and ergonomic design ensure stable operation even under continuous, high-frequency use, making it a trusted choice for professional assembly lines and repair environments.
Key Features
-
Powerful Air-Hydraulic Drive – Provides reliable and consistent pulling force for 3/16-inch rivets in aluminum, steel, and stainless steel.
-
Durable Aluminum Housing – Lightweight yet rugged construction ensures high durability under industrial use.
-
Ergonomic Grip and Balanced Structure – Reduces vibration and operator fatigue for extended working periods.
-
Fast Cycle and Automatic Mandrel Ejection – Increases productivity and shortens assembly times.
-
Optimized Air Circuit – Delivers maximum power output while minimizing air consumption for energy efficiency.
-
Precision-Engineered Components – Heavy-duty piston and valve system designed for high reliability and long service intervals.
-
Easy Maintenance Design – Modular internal layout simplifies disassembly and maintenance, minimizing downtime.
Applications
The ZT0918T Air Hydraulic Riveter is ideal for a variety of industrial applications, including:
-
Automotive body, chassis, and trim assembly
-
Truck, trailer, and bus manufacturing
-
Aerospace structural component assembly and maintenance
-
Metal furniture and sheet-metal fabrication
-
HVAC and ducting installation
-
General industrial manufacturing and repair workshops
Performance Advantages
-
Consistent Riveting Strength – Hydraulic drive provides stable and repeatable clamping force for secure, high-quality joints.
-
Operator Comfort – Balanced, ergonomic design minimizes vibration and strain during continuous operation.
-
High Productivity – Quick cycle time and efficient mandrel disposal improve production throughput.
-
Durable Reliability – Precision-machined internal components ensure long service life and sustained performance.
-
Cost Efficiency – Low air consumption and simple maintenance reduce operating costs.
-
Smooth Operation – Minimal recoil and balanced handling deliver superior control and fastening accuracy.
Technical Benefits
-
Compatible with 3/16-inch blind rivets in aluminum, steel, and stainless steel.
-
Compact and lightweight, ideal for confined or overhead working areas.
-
Low vibration and noise levels for improved workplace comfort.
-
Suitable for both manual and semi-automated assembly systems in continuous production environments.
Why Choose ZT0918T
The ZT0918T 3/16-inch Air Hydraulic Riveter delivers exceptional performance and dependability in a compact, easy-to-handle design. Engineered for consistent strength and high-speed operation, it combines mechanical efficiency with ergonomic precision—ensuring stable, repeatable fastening quality in demanding industrial environments. Whether used in automotive assembly, aerospace manufacturing, or general fabrication, the ZT0918T offers the ideal balance of power, comfort, and reliability. It exemplifies ZIPPTOOL’s commitment to precision engineering, durability, and productivity, making it an indispensable tool for professionals who require dependable fastening performance shift after shift.
Applications
Wherever fastening methods like welding, sheet metal screw, bolt, nut, washer, tubular, semitubular, and solid rivets and adhesives are applied, they can be substituted by blind rivets. All models above are suitable for setting standard blind rivets and structural blind rivets.
Features
- Easy-to-adjust head and nut designed for achieving the most effective stroke and riveting speed.
- Aluminum alloy forged Hydraulic Section for greater strength and durability.
- 2-piece ultra-jaw made from high-grade tool steel and featuring special heat treatment to increase jaw life and reduce service costs.
- Mandrel Collection Bottle equipped with the patented vacuum collecting system for the cleanliness and safety of the work area.
- Ergonomically designed, the Trigger enhances comfort and reduces the operator’s fatigue.
- Lock Nut is designed for easy tool service.
- Side-mounted Swivel Air Inlet Joint for the tool’s maneuverability.
- The Rubber Boot is designed to protect the tool and work surface.
Specification:
- Traction Power: 1983(900) Ibf(kgf)
- Stroke Length: 11/16(18) inch(mm)
- Net Weight: 3.96(1.80) lbs(kgs)
- Operating Air Pressure: 90(6.2) PSI(bar)
- Air inlet Size: 1/4 Inch-NPT/PT
- Min. Hose Size: 3/8(10) Inch(mm)
- Nosepieces Equipped: 3/32(2.4)1/8(3.2)5/32(4.0)3/16(4.8) Inch(mm)
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*T: Trigger Type, No-Vacuum. *L: Lever Type, No-Vacuum. *LV: Lever Type, With Vacuum
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of the model you select.
| Model | Traction Power lbf(kgf) |
Stroke Length inch(mm) |
Net Weight lbs(kgs) |
Nosepieces Equipped inch(mm) |
Max. Capacity |
| ZT0618T | 1320(596) | 11/16(18) | 3.30(1.50) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
Max. 3/16″(4.8mm) blind rivets in steel/steel |
| ZT0918T | 1983(900) | 11/16(18) | 3.96(1.80) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
Max. 3/16″(4.8mm) standard & structural blind rivets in all materials |
| ZT1214T | 2460(1200) | 9/16(14) | 4.16(1.89) | 5/32(4.0)3/16(4.8) 1/4(6.4) |
Max. 1/4″(6.4mm) blind rivets in steel/steel |
| ZT1819T | 3960(1800) | 3/4(19) | 5.61(2.55) | 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) standard & structural blind rivets in all materials |
| ZT0918L | 1983(900) | 11/16(18) | 3.96(1.80) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
Max. 3/16″(4.8mm) standard & structural blind rivets in all materials |
| ZT0918LV | 1983(900) | 11/16(18) | 4.07(1.85) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
Max. 3/16″(4.8mm) standard & structural blind rivets in all materials |
| ZT1214L | 2460(1200) | 9/16(14) | 4.16(1.89) | 5/32(4.0)3/16(4.8) 1/4(6.4) |
Max. 1/4″(6.4mm) blind rivets in steel/steel |
| ZT1214LV | 2460(1200) | 9/16(14) | 4.27(1.94) | 5/32(4.0)3/16(4.8) 1/4(6.4) |
Max. 1/4″(6.4mm) blind rivets in steel/steel |
| ZT1819L | 3960(1800) | 3/4(19) | 5.60(2.55) | 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) standard & structural blind rivets in all materials |
| ZT1819LV | 3960(1800) | 3/4(19) | 5.72(2.60) | 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) standard & structural blind rivets in all materials |
*Operating Air Pressure: 90PSI/6.2bar *Air Inlet Size: 1/4 inch-NPT/PT *Min. Hose Size: 3/8″(10mm)
