ZT1214VS-5 3/16 Inch Air Hydraulic Riveter (Vacuum Type)





The ZT1214VS-5 3/16-inch Air Hydraulic Riveter (Vacuum Type) is a precision-engineered pneumatic tool designed for high-speed, clean, and consistent riveting in industrial assembly environments. Featuring an integrated vacuum mandrel collection system, this model combines controlled power, smooth operation, and superior ergonomics to enhance productivity and operator safety. Engineered for continuous operation, the ZT1214VS-5 delivers a stable hydraulic pulling force for 3/16-inch rivets across aluminum, steel, and stainless steel. The vacuum-assisted mandrel suction automatically collects spent mandrels, keeping the workspace clean and reducing downtime. Its lightweight aluminum alloy construction, efficient air-hydraulic design, and balanced structure make it ideal for high-volume manufacturing lines that demand accuracy, reliability, and long-term performance.





Key Features





• Integrated Vacuum Mandrel Collection System – Automatically removes and collects spent mandrels for cleaner, safer, and more efficient operation.

• High-Power Air-Hydraulic Drive – Provides stable and consistent pulling force for 3/16-inch rivets in aluminum, steel, and stainless steel.

• Durable Aluminum Alloy Housing – A lightweight yet rugged body ensures easy handling and a long service life under continuous industrial use.

• Ergonomic and Balanced Design – Reduces vibration, recoil, and operator fatigue during extended operation.

• Quick Cycle Time – Rapid riveting and automatic mandrel ejection increase throughput and minimize downtime.

• Energy-Efficient Pneumatic System – Optimized airflow delivers powerful output with low air consumption, resulting in reduced operating costs.

• Low Maintenance – The simplified modular structure allows for easy cleaning, seal replacement, and calibration.





Applications





The ZT1214VS-5 Vacuum-Type Air Hydraulic Riveter is ideally suited for clean, controlled, and high-efficiency production environments, including:





• Automotive body, chassis, and trim assembly

• Truck, trailer, and bus fabrication

• Aerospace structure and component assembly

• Metal fabrication and sheet-metal production

• Construction equipment and machinery manufacturing

• Industrial assembly lines require precision and cleanliness





Performance Advantages





• Superior Precision Control – A variable speed trigger allows for fine adjustment of riveting force, ensuring consistent and accurate fastening results.

• Clean and Safe Operation – The built-in vacuum mandrel system eliminates debris and enhances workplace safety.

• Enhanced Productivity – Continuous suction and quick cycling minimize stoppages, optimizing workflow efficiency.

• Operator Comfort – A balanced and low-vibration design minimizes fatigue during extended production shifts.

• Long-Term Reliability – Heavy-duty hydraulic system and precision seals ensure consistent performance under demanding workloads.

• Cost Efficiency – Lower air consumption, reduced maintenance, and efficient mandrel collection all contribute to lower operating costs.





Technical Benefits





• Compatible with 3/16-inch blind rivets in aluminum, steel, and stainless steel.

• The vacuum system eliminates the need for manual mandrel disposal, thereby maintaining a clean production area.

• Variable speed control adapts to different materials and assembly requirements.

• The compact body design allows for easy access to tight or overhead working positions.

• Suitable for both manual and semi-automated industrial assembly lines.





Why Choose ZT1214VS-5





The ZT1214VS-5 3/16 inch Air Hydraulic Riveter (Vacuum Type) represents the ideal combination of intelligent control, clean operation, and mechanical power. Its integrated vacuum mandrel collection system and variable speed control enable precision riveting with minimal downtime and maximum safety. Built to perform in fast-paced, high-volume manufacturing environments, the ZT1214VS-5 enhances operational efficiency, operator comfort, and workplace cleanliness. It embodies our engineering philosophy of Power, Precision, and Productivity, providing industrial users with a reliable, high-performance solution for modern riveting applications.





Applications



Wherever fastening methods like welding, sheet metal screw, bolt, nut, washer, tubular, semitubular, and solid rivets and adhesives are applied, they can be substituted by blind rivets.
All models above are suitable for setting standard blind rivets and structural blind rivets.









Features





• The easy-to-adjust head and nut are designed to achieve the most effective stroke and riveting speed.
• Aluminum alloy forged Hydraulic Section for greater strength and durability.
• 2-piece ultra-jaw made from high-grade tool steel and featuring special heat treatment to increase jaw life and reduce service costs.
• Mandrel Collection Bottle equipped with the patented vacuum collecting system for the cleanliness and safety of the work area.
• Ergonomically designed, the Trigger enhances comfort and reduces the operator’s fatigue.
• Lock Nut is designed for easy tool service.
• Side-mounted Swivel Air Inlet Joint for the tool’s maneuverability.
• The Rubber Boot is designed to protect the tool and work surface well.





Specification:





• Traction Power: 2640(1200) Ibf(kgf)
• Stroke Length: 9/16(14) inch(mm)
• Net Weight: 4.27(1.94) lbs(kgs)
• Operating Air Pressure: 90(6.2) PSI(bar)
• Air inlet Size: 1/4 Inch-NPT/PT
• Min. Hose Size: 3/8(10) Inch(mm)
• Nosepieces Equipped: 5/32(4.0)3/16(4.8) Inch(mm)

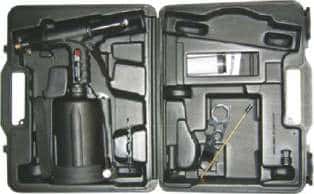

[ Accessories ]

• Riveter X 1
• Small Wrench X 1
• Large Wrench X 1
• Collection Bottle X 1





DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.

Model	Traction Power lbf(kgf)	Stroke Length inch(mm)	Net Weight lbs(kgs)	Operating Air Pressure psi(bar)	Air Inlet Size inch-NPT/PT	Min. Hose Size inch(mm)	Nosepieces Equipped inch(mm)
ZT0318VS	770(350)	11/16(18)	2.86(1.3)	90(6.2)	1/4	3/8(10)	3/32(2.4)1/8(3.2)5/32(4.0)
ZT0618VS	1320(596)	11/16(18)	3.41(1.55)	90(6.2)	1/4	3/8(10)	3/32(2.4)1/8(3.2)5/32(4.0)3/16(4.8)
ZT0918VS	1983(900)	11/16(18)	4.07(1.85)	90(6.2)	1/4	3/8(10)	3/32(2.4)1/8(3.2)5/32(4.0)3/16(4.8)
ZT1214VS-5	2640(1200)	9/16(14)	4.27(1.94)	90(6.2)	1/4	3/8(10)	5/32(4.0)3/16(4.8)
ZT1214VS-6	2640(1200)	9/16(14)	4.27(1.94)	90(6.2)	1/4	3/8(10)	3/16(4.8)1/4(6.4)
ZT1819VS	3960(1800)	3/14(19)	5.27(2.6)	90(6.2)	1/4	3/8(10)	3/16(4.8)1/4(6.4)
