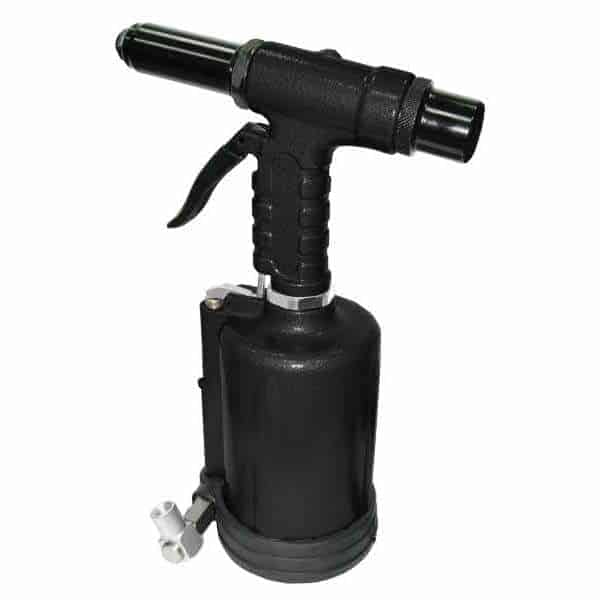

ZT1819T 1/4 Inch Air Hydraulic Riveter
The ZT1819T 1/4-inch Air Hydraulic Riveter is a heavy-duty industrial riveting tool designed for superior power, precision, and durability. Engineered for demanding assembly and production environments, it features a high-performance air-hydraulic drive system that delivers consistent pulling force for 1/4-inch rivets made from aluminum, steel, and stainless steel. The ZT1819T is designed with reinforced components and a durable aluminum alloy housing, offering exceptional strength with balanced weight for improved operator control. Its T-series design emphasizes pulling force stability, long service life, and efficient air consumption, making it ideal for continuous use on high-volume assembly lines or heavy-equipment maintenance applications.
Key Features
-
High-Strength Air-Hydraulic System – Provides strong, stable pulling power for 1/4-inch rivets across a variety of materials.
-
Durable Aluminum Alloy Body – Combines high impact resistance with lightweight construction for ease of operation.
-
Ergonomic Handle and Balanced Design – Reduces operator fatigue while improving precision and control.
-
Fast Cycle Operation – Quick riveting speed and automatic mandrel ejection improve workflow efficiency.
-
Optimized Air Flow System – Delivers maximum output power with reduced air consumption for energy-efficient operation.
-
Low-Maintenance Construction – Modular internal design enables simple servicing and a long operational lifespan.
-
Reinforced Internal Components – Heavy-duty hydraulic piston and seal system built to withstand high-load continuous use.
Applications
The ZT1819T Air Hydraulic Riveter is engineered for medium to heavy-duty fastening and assembly operations in:
-
Automotive and truck chassis assembly
-
Trailer and bus manufacturing
-
Aerospace structural assembly and maintenance
-
Steel and aluminum construction fabrication
-
Shipbuilding and heavy-equipment production
-
Industrial machinery and equipment repair lines
Performance Advantages
-
Consistent Riveting Force – Provides uniform clamping pressure for reliable, high-quality fastening results.
-
High Productivity – Fast cycle times and efficient mandrel ejection increase production output.
-
Operator Comfort – Balanced body and low recoil minimize fatigue during extended operation.
-
Superior Durability – Reinforced piston and valve design ensure long-lasting reliability under demanding workloads.
-
Low Cost of Ownership – Efficient air consumption and minimal maintenance reduce operating costs.
-
Versatile Performance – Capable of handling various rivet materials and sizes for diverse industrial applications.
Technical Benefits
-
Compatible with standard 1/4-inch blind rivets in aluminum, steel, and stainless steel.
-
Compact, robust design suited for both stationary and mobile assembly operations.
-
Smooth hydraulic action ensures precise riveting with minimal vibration.
-
Designed for continuous industrial use in manual or semi-automated production environments.
Why Choose ZT1819T
The ZT1819T 1/4 inch Air Hydraulic Riveter delivers uncompromising strength, efficiency, and reliability for professional users. Its durable construction, fast operation, and powerful hydraulic performance make it ideal for industries that demand consistent fastening quality under high workloads. Engineered with precision and built for endurance, the ZT1819T embodies the our philosophy of power, performance, and productivity—making it a trusted choice for modern assembly lines and maintenance workshops where consistency and durability matter most.
Applications
Wherever fastening methods like welding, sheet metal screw, bolt, nut, washer, tubular, semitubular, and solid rivets and adhesives are applied, they can be substituted by blind rivets. All models above are suitable for setting standard blind rivets and structural blind rivets.
Features
- The easy-to-adjust head and nut are designed to achieve the most effective stroke and riveting speed.
- Aluminum alloy forged Hydraulic Section for greater strength and durability.
- 2-piece ultra-jaw made from high-grade tool steel and featuring special heat treatment to increase jaw life and reduce service costs.
- Mandrel Collection Bottle equipped with the patented vacuum collecting system for the cleanliness and safety of the work area.
- Ergonomically designed, the Trigger enhances comfort and reduces the operator’s fatigue.
- Lock Nut is designed for easy tool service.
- Side-mounted Swivel Air Inlet Joint for the tool’s maneuverability.
- The Rubber Boot is designed to protect the tool and work surface.
Specification:
- Traction Power: 3960(1800) Ibf(kgf)
- Stroke Length: 3/4(19) inch(mm)
- Net Weight: 5.61(2.55) lbs(kgs)
- Operating Air Pressure: 90(6.2) PSI(bar)
- Air inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Nosepieces Equipped: 3/16(4.8)1/4(6.4) inch(mm)
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*T: Trigger Type, No-Vacuum. *L: Lever Type, No-Vacuum. *LV: Lever Type, With Vacuum
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of the model you select.
| Model | Traction Power lbf(kgf) |
Stroke Length inch(mm) |
Net Weight lbs(kgs) |
Nosepieces Equipped inch(mm) |
Max. Capacity |
| ZT0618T | 1320(596) | 11/16(18) | 3.30(1.50) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
Max. 3/16″(4.8mm) blind rivets in steel/steel |
| ZT0918T | 1983(900) | 11/16(18) | 3.96(1.80) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
Max. 3/16″(4.8mm) standard & structural blind rivets in all materials |
| ZT1214T | 2460(1200) | 9/16(14) | 4.16(1.89) | 5/32(4.0)3/16(4.8) 1/4(6.4) |
Max. 1/4″(6.4mm) blind rivets in steel/steel |
| ZT1819T | 3960(1800) | 3/4(19) | 5.61(2.55) | 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) standard & structural blind rivets in all materials |
| ZT0918L | 1983(900) | 11/16(18) | 3.96(1.80) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
Max. 3/16″(4.8mm) standard & structural blind rivets in all materials |
| ZT0918LV | 1983(900) | 11/16(18) | 4.07(1.85) | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
Max. 3/16″(4.8mm) standard & structural blind rivets in all materials |
| ZT1214L | 2460(1200) | 9/16(14) | 4.16(1.89) | 5/32(4.0)3/16(4.8) 1/4(6.4) |
Max. 1/4″(6.4mm) blind rivets in steel/steel |
| ZT1214LV | 2460(1200) | 9/16(14) | 4.27(1.94) | 5/32(4.0)3/16(4.8) 1/4(6.4) |
Max. 1/4″(6.4mm) blind rivets in steel/steel |
| ZT1819L | 3960(1800) | 3/4(19) | 5.60(2.55) | 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) standard & structural blind rivets in all materials |
| ZT1819LV | 3960(1800) | 3/4(19) | 5.72(2.60) | 3/16(4.8)1/4(6.4) | Max. 1/4″(6.4mm) standard & structural blind rivets in all materials |
*Operating Air Pressure: 90PSI/6.2bar *Air Inlet Size: 1/4 inch-NPT/PT *Min. Hose Size: 3/8″(10mm)
