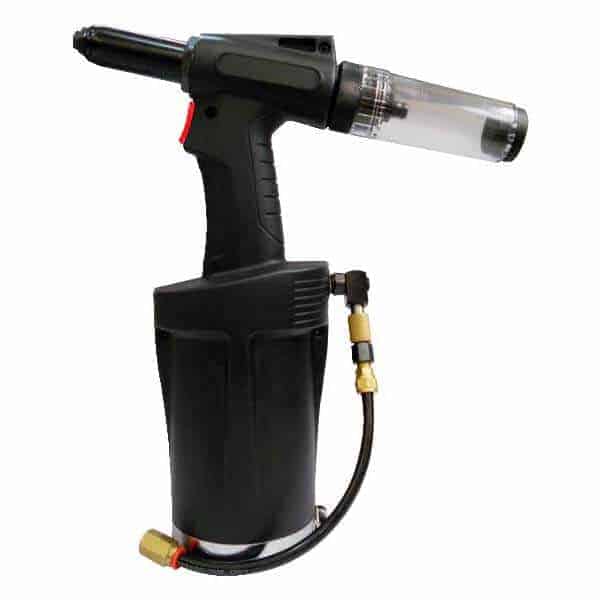

ZT1821VS 1/4 Inch Composite Air Hydraulic Riveter





The ZT1821VS 1/4 inch Composite Air Hydraulic Riveter is a next-generation industrial fastening tool engineered for performance, durability, and user comfort. Designed with a lightweight composite body and a powerful air-hydraulic drive, this model combines superior pulling force with exceptional operator ergonomics. The composite housing provides excellent strength-to-weight balance and vibration damping, making it ideal for continuous operation in demanding production environments. Built for precision riveting with 1/4-inch rivets in aluminum, steel, and stainless steel, the ZT1821VS delivers consistent power, fast cycle times, and long service life — all while reducing air consumption and operator fatigue. It is the perfect combination of strength, speed, and comfort for modern manufacturing and assembly operations.





Key Features





• High-Power Air-Hydraulic System – Provides strong, stable pulling force for 1/4-inch rivets, ensuring tight and uniform fastenings.

• Lightweight Composite Housing – Reinforced fiber-composite body reduces overall weight, absorbs vibration, and increases durability against impacts.

• Ergonomic Design – A balanced structure and non-slip grip minimize strain during extended working hours, enhancing operator comfort and control.

• Variable Speed Trigger (VS) – Enables the operator to precisely control pulling speed, ensuring accuracy and preventing material deformation.

• Quick Cycle Operation – Fast riveting and automatic mandrel ejection enhance workflow efficiency and productivity.

• Energy Efficient – Optimized pneumatic design reduces air consumption without compromising power output.

• Easy Maintenance – The modular internal structure simplifies servicing, cleaning, and seal replacement, ensuring extended tool life.





Applications





The ZT1821VS Air Hydraulic Riveter is widely used in medium to heavy-duty assembly and maintenance industries, including:





• Automotive manufacturing and repair (body, chassis, and frame assembly)

• Truck, trailer, and bus fabrication

• Aerospace structural assembly and maintenance

• Steel and metal construction

• Industrial and agricultural equipment manufacturing

• General production lines requiring strong, repeatable riveting performance





Performance Advantages





• Precision Control – Variable speed trigger allows smooth, controlled riveting for delicate or multi-layer joints.

• Operator Comfort – Lightweight composite housing and balanced grip reduce fatigue during prolonged operation.

• Superior Durability – Reinforced materials offer high impact resistance and extended service life in industrial applications.

• Consistent Strength – The hydraulic system ensures a uniform clamping force, improving joint reliability and product quality.

• High Productivity – Rapid cycle times and efficient mandrel disposal minimize downtime, maximizing output.

• Low Cost of Ownership – Reduced air consumption and simplified maintenance lower long-term operational costs.





Technical Benefits





• Designed for 1/4-inch blind rivets in aluminum, steel, and stainless steel.

• Composite body reduces vibration transfer, enhancing precision and operator safety.

• Delivers consistent, riveting performance for both manual and semi-automated applications.

• Ideal for repetitive production line use where reliability and lightweight handling are critical.





Why Choose ZT1821VS





The ZT1821VS 1/4 inch Composite Air Hydraulic Riveter redefines performance and comfort in industrial riveting. Its advanced composite structure reduces tool weight without sacrificing power, while the variable speed control enhances precision across a wide range of materials and applications. Combining energy efficiency, strength, and ergonomic design, the ZT1821VS is the professional’s choice for high-volume production, automotive, and structural assembly operations. This model embodies ZIPPTOOL’s ongoing commitment to producing lightweight, powerful, and operator-friendly tools for the modern manufacturing world.





Features





• Built with patented “Module units assembled in composite clam shell housing” for the ease of tool service.
• Patented “Broken mandrel vacuum collection system” for the cleanliness and safety of the work area.
• Forged and heat-treated aluminum alloy made Hydraulic Section for the best rigidity.
• A stainless steel-made Air Cylinder for the best rigidity and durability of the tool.
• Easy-to-adjust head and nut designed for obtaining the most effective stroke.
• Ergonomic texture-coated composite housing for the operator’s comfort.
• Equipped with a safety valve to avoid damage due to overpressure.
• Swivel air inlet design for the maneuverability of work.
• The lightest model among compatible designs.





• Aluminum Alloy Forged Hydraulic Section
• Composite Clam Shell Housing
• Broken Mandrel Vacuum Collection System
• Air Actuating Module
• Air Hose
• Air Inlet Module
• Stainless Steel-made Air Cylinder
• Spare Nose Pieces Port





Specification:





• Traction Power: 4013(1800) Ibf(kgf)
• Stroke Length: 13/16(21) inch(mm)
• Net Weight: 5.1(2.3) lbs(kgs)
• Operating Air Pressure: 90(6.2) PSI(bar)
• Air inlet Size: 1/4 Inch-NPT/PT
• Min. Hose Size: 3/8(10) Inch(mm)
• Nosepieces Equipped: 3/16(4.8)1/4(6.4) Inch(mm)





DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of the model you select.

Model	Traction Power lbf(kgf)	Stroke Length inch(mm)	Net Weight lbs(kgs)	Operating Air Pressure psi(bar)	Air Inlet Size inch-NPT/PT	Min. Hose Size inch(mm)	Nosepieces Equipped inch(mm)
ZT0919VS	1980(900)	3/4(19)	3.3(1.5)	90(6.2)	1/4	3/8(10)	3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8)
ZT1821VS	4013(1800)	13/16(21)	5.1(2.3)	90(6.2)	1/4	3/8(10)	3/16(4.8)1/4(6.4)
