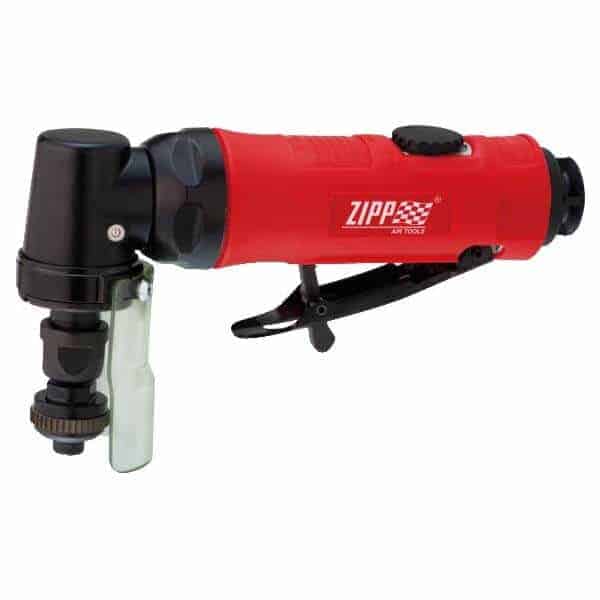

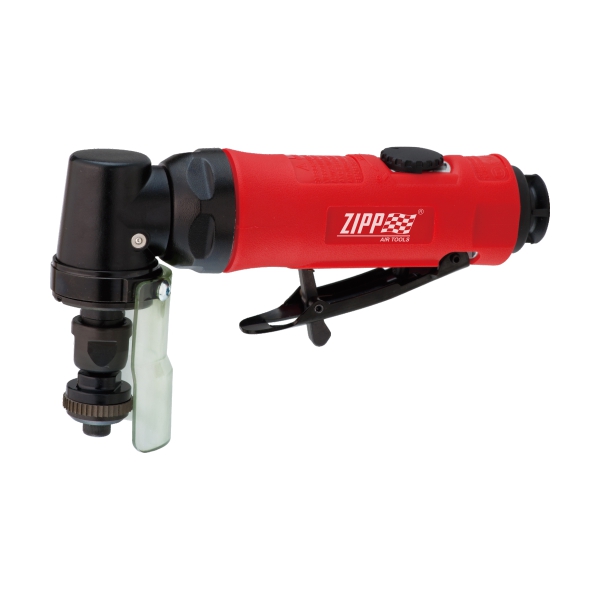

ZWR-3212 – Laser Welding Removal Tool





The ZWR-3212 Laser Welding Removal Tool is a specialized pneumatic surface finishing tool designed to remove and smooth laser weld seams efficiently. Engineered for precision, speed, and durability, this tool is ideal for post-laser welding applications where clean, even, and professional finishes are required.





Key Features





• Laser Weld Seam Removal – Specifically developed to handle tough laser welding seams and surface irregularities.

• High-Efficiency Pneumatic Motor – Delivers consistent power and long-lasting performance.

• Ergonomic & Balanced Design – Reduces operator fatigue while maintaining precise control.

• Durable Construction – Built for continuous heavy-duty industrial applications.

• Compact Head Design – Enables easy access to weld seams in confined or narrow workspaces.

• Optimized for Stainless Steel & Metal Surfaces – Ensures clean and smooth finishing after weld processing.





Advantages & Benefits





• Professional Weld Finishing – Achieves smooth, even surfaces after laser welding with minimal effort.

• Increased Productivity – Removes weld seams quickly, reducing post-weld processing time.

• Superior Control – The ergonomic design enhances operator handling and precision.

• Versatile Application – Effective across stainless steel, aluminum, and other industrial metals.

• Cost-Efficient – Enhances workflow by minimizing secondary finishing work.





Applications





• Laser Welding Seam Removal – Clean removal of excess weld material.

• Automotive & Transportation – Post-weld finishing for body panels, frames, and precision components.

• Metal Fabrication & Manufacturing – Industrial finishing on stainless steel, aluminum, and alloy structures.

• Aerospace & Marine – Precision weld removal in high-performance environments.

• General Industrial Use – Suitable for workshops, repair facilities, and production lines.





Why Choose the ZWR-3212?





The ZWR-3212 Laser Welding Removal Tool is a must-have for industries working with laser welding technology, ensuring weld seams are removed quickly, cleanly, and efficiently. With its high-performance pneumatic motor, ergonomic design, and robust construction, the ZWR-3212 guarantees professional results and increased productivity in any industrial finishing process.





Benefits





• Compact angle head housing design for quick and easy use.
• Ergonomic Grip
• 0.5hp Powerful & Durable
• Ideal tool & specifically designed to deal with the latest technique in vehicle assembly, laser welding





Features

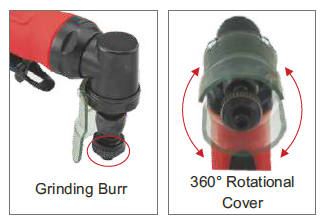

• High-speed cutting wheel made of a specially hardened metal. Depth of cut limitation-optional at either 0.8-1.0mm. The depth limiter ensures that the lower panel doesn’t get damaged.
• Protection guard (transparent acetate material ) is designed for safety protection.
• High-quality manufacturing and materials guarantee durability.
• High-quality alloy steel for internal gears with precision gear teeth design to prolong the gear life.

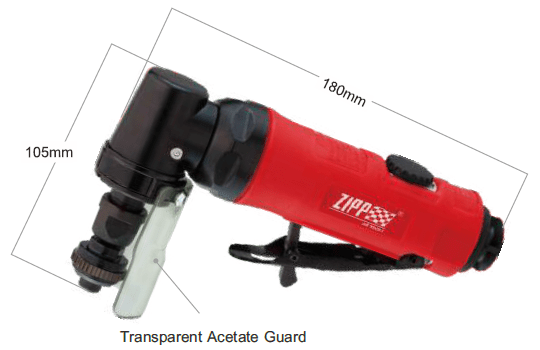

• Transparent Acetate Guard





ST210145 Cutting Wheel 25 x 4mm Diameter Solid Tungsten Carbide Cutting wheel with TiAIN coating. Superior for high-speed and dry cutting	ZST210144 (Shaft for 6mm collet) ZST210144.1 (Shaft for 1/4″ collet) Shaft for Cutting Depth 0.8mm for 25mm Cutting Wheel	ZST210144.2 (Shaft for 6mm collet) ZST210144.3 (Shaft for 1/4″ collet) Shaft for Cutting Depth 1.0mm for 25mm Cutting Wheel

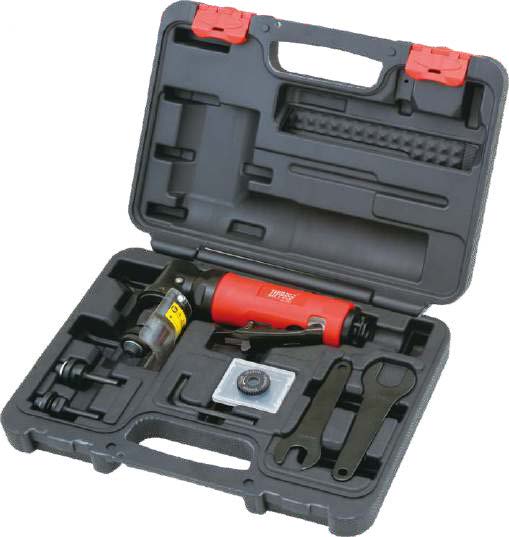

ZWR-3212K

Laser welding removal Tool Kit





Specifications





• 1 pc Laser welding removal Tool

• 2 pcs Spanners

• 1 pc Cutting Wheel

• 1 pc Hex

• 1 pc Depth 0.8mm Shaft

• 1 pc Depth 1.0mm Shaft

• 1 pc Blow Molded Case





Specification:





• Collet Size: 1/4(6) inch(mm)
• Net Weight: 1.5(0.7) lbs(kgs)
• Length: 7(180) in.(mm)
• Free Speed: 11000 rpm
• Air Inlet Size: 1/4 inch-NPT/PT
• Min. Hose Size: 3/8(10) inch(mm)
• Avg. Air Cons.: 3.5 cfm
