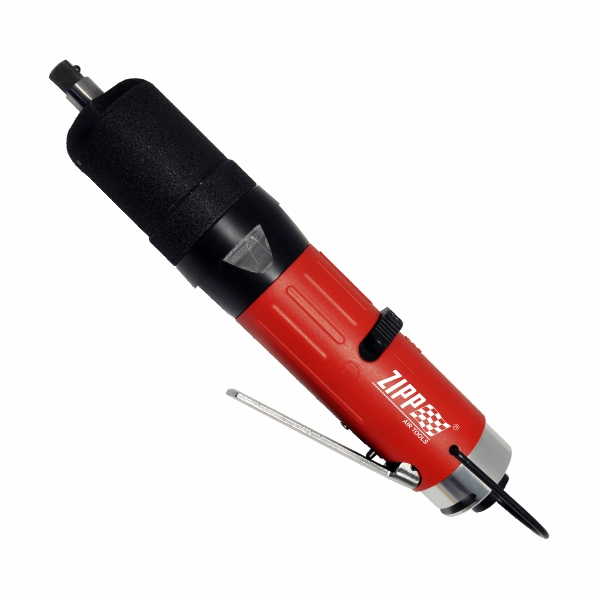

SN084 pulse Wrench – Inline Type, Non-Shut-Off Type
The SN084 Pulse Wrench — Inline Type, Non-Shut-Off Type is a powerful and efficient fastening tool designed for industrial applications requiring high-speed assembly with precise torque control. It features a non-shut-off mechanism, allowing operators to control fastening operations for optimal flexibility manually. The inline configuration ensures ergonomic handling and ease of use in demanding assembly environments, such as automotive, aerospace, and manufacturing sectors.
Key Features
- Non-Shut-Off Mechanism
- Manual control over fastening operations for flexibility across various applications.
- Suitable for applications where the operator’s discretion is preferred for stopping torque.
- Pulse Technology
- Reduces reaction forces, providing smoother and safer operation.
- Enhances joint integrity by avoiding over-torqueing and damage to components.
- Inline Configuration
- Straight design enables easy alignment during operation.
- Ideal for fasteners in confined or hard-to-reach spaces.
- Ergonomic Design
- Lightweight construction reduces operator fatigue.
- Low vibration and noise levels ensure user comfort over long work sessions.
- Durable Construction
- Made with high-quality materials to withstand harsh industrial use.
- Long-lasting performance with minimal maintenance requirements.
Applications
- Aerospace Industry
- Ensures precision fastening for delicate or critical components.
- Suitable for assembly lines requiring consistent performance and reliability.
- Automotive Manufacturing
- Ideal for fastening engine parts, chassis components, and assembly lines.
- Supports repetitive operations with consistent torque results.
- Industrial Equipment Assembly
- Provides flexibility for diverse fastening requirements.
- Handles varied bolt sizes and torque levels with ease.
- General Manufacturing
- Reliable for fastening tasks where operators prefer manual torque control.
Advantages
- Manual Control: Non-shut-off design allows the operator to fine-tune fastening as needed.
- Enhanced Flexibility: Accommodates a wide range of applications with manual operation.
- Reduced Reaction Force: The pulse mechanism minimizes strain on the user.
- Ergonomic Handling: Lightweight and inline design supports efficient and fatigue-free use.
- Cost-Effective Maintenance: Rugged design ensures durability, reducing downtime.
Why Choose the SN084 Pulse Wrench – Inline Type, Non-Shut-Off Type?
The SN084 Pulse Wrench is ideal for industries that value precision, speed, and flexibility in assembly operations. Its non-shut-off functionality makes it versatile for manual control applications, while its pulse technology ensures operator safety and joint quality. With robust construction and ergonomic design, the SN084 is a reliable and efficient choice for professionals handling diverse assembly requirements.
- X-shape sealing improves repeatability and durability.
- Twin-drive roller blades reduce noise and vibration and improve impulse efficiency.
- 1 Piece design front end plate and cylinder improves motor efficiency.
- Double chamber air motor
9 Vanes motor design for the most diminutive dimensions with the highest power and acceleration results in a short time to reach the set torque and highest. The required torque can be efficiently productive. - One-hand reverse operation for Right or left-handed operators.
- Low noise exhaust, 360º adjustable.
- Easy Torque Adjustment
The required torque can be easily adjusted by turning the adjust screw through the housing.
Specification:
- Hex Drive: 1/2″ SD
- Bolt Capacity: M10 ~ M12
- Measured on Hard Joint
Min. Oil Pressure / 0.4 MPa: 35 (25.8) Nm (Lb-ft)
Min. Oil Pressure / 0.5 MPa: 38 (28) Nm (Lb-ft)
Min. Oil Pressure / 0.6 MPa: 41 (30.2) Nm (Lb-ft)
Max. Oil Pressure / 0.4 MPa: 51 (37.6) Nm (Lb-ft)
Max. Oil Pressure / 0.5 MPa: 54 (39.8) Nm (Lb-ft)
Max. Oil Pressure / 0.6 MPa: 57 (42) Nm (Lb-ft)
- Free Speed: 6000 rpm
- Air Cons.: 0.45 m3/min
- Noise Level: 88 dB(A)
- Net Weight: 1.3 kg
- Air Inlet Size: NPT 1/4″
- Recommended Gauge Air Pressure: 60 ~ 90psi (4kg/cm² ~ 6kg/cm²) (0.4MPa ~ 0.6MPa)
- Air Hose Size: 10mm x 6.5mm (For 043 ~ 063 models), (For 073 ~ 084 models)
- The above data are all measured at 4kg/cm² ~ 6kg/cm² gauge air pressure
Model | Square Drive | Bolt Capacity mm | Measured on Hard Joint / Nm(Lb-ft) | Free Speed rpm | Air Cons. m³/min | Noise Level dB(A) | Net Weight kg | |||||
Min. Oil Pressure | Max. Oil Pressure | |||||||||||
0.4MPa | 0.5MPa | 0.6MPa | 0.4MPa | 0.5MPa | 0.6MPa | |||||||
SS043 | 3/8″SD | M4~M6 | 5(3.7) | 6(4.4) | 7(5.2) | 10(7.4) | 11(8.1) | 12(8.9) | 4500 | 0.4 | 80 | 0.87 |
SS053 | 3/8″SD | M6~M8 | 10(7.4) | 11(8.1) | 12(8.9) | 20(14.8) | 20(14.8) | 23(17) | 6000 | 0.4 | 85 | 0.85 |
SS063 | 3/8″SD | M6~M8 | 11(8.1) | 12(8.9) | 13(9.6) | 20(14.8) | 22(16.2) | 25(18.4) | 6000 | 0.4 | 85 | 0.88 |
SS073 | 3/8″SD | M8~M10 | 20(14.8) | 20(14.8) | 23(17) | 36(26.6) | 39(28.8) | 42(31) | 6000 | 0.45 | 88 | 1.29 |
SS084 | 1/2″SD | M10~M12 | 6000 | 0.45 | 88 | 1.3 | ||||||
SN043 | 3/8″SD | M6~M8 | 9(6.6) | 11(8.1) | 13(9.6) | 13(9.6) | 15(11.1) | 17(12.5) | 5600 | 0.4 | 80 | 0.87 |
SN053 | 3/8″SD | M6~M8 | 15(11.1) | 18(13.3) | 21(15.5) | 19(14) | 22(16.2) | 25(18.4) | 6000 | 0.4 | 85 | 0.85 |
SN063 | 3/8″SD | M8~M10 | 20(14.8) | 23(17) | 26(19.2) | 28(20.7) | 31(22.9) | 34(25.1) | 6000 | 0.4 | 85 | 0.88 |
SN073 | 3/8″SD | M8~M10 | 28(20.7) | 31(22.9) | 34(25.1) | 42(31) | 45(33.2) | 48(35.4) | 6000 | 0.45 | 88 | 1.29 |
SN084 | 1/2″SD | M10~M12 | 35(25.8) | 38(28) | 41(30.2) | 51(37.6) | 54(39.8) | 57(42) | 6000 | 0.45 | 88 | 1.3 |
