Z3500C – Pneudraulic C-Yoke Squeezer
The Z3500C Pneudraulic C-Yoke Squeezer is a heavy-duty riveting solution engineered for precision, consistency, and operator efficiency. Combining pneumatic power with hydraulic force multiplication, it delivers a high, repeatable squeezing force with minimal operator effort. Designed for aerospace, automotive, and industrial applications, this tool ensures accurate rivet installation while reducing fatigue and improving productivity.
Key Features
-
Pneudraulic Power System – Uses air pressure to generate a powerful hydraulic force for consistent riveting.
-
C-Yoke Design – Provides optimal accessibility for riveting in confined or hard-to-reach areas.
-
High Squeezing Force – Ensures strong, uniform rivet installation.
-
Durable Construction – Built with aerospace-grade materials for long service life.
-
Precision Control – Maintains repeatable pressure and consistent results across multiple cycles.
-
Ergonomic Operation – Lightweight and designed to minimize strain during extended use.
Advantages & Benefits
-
Consistent Rivet Quality – Eliminates variability compared to manual riveting methods.
-
Reduced Operator Fatigue – Pneumatic-hydraulic system delivers force with minimal physical effort.
-
Time-Saving Efficiency – Faster and more reliable riveting process increases throughput.
-
Versatile Application – Works with a wide range of rivet sizes and materials.
-
Safety & Reliability – Built to withstand demanding industrial environments with minimal maintenance.
Applications
-
Aerospace Assembly & Maintenance – Precision riveting in aircraft structures and components.
-
Automotive Manufacturing – Riveting in body frames, panels, and structural components.
-
Industrial Fabrication – Reliable fastening in sheet metal and structural assemblies.
-
Heavy Equipment Repair – Durable solution for maintenance and restoration tasks.
-
General Riveting Operations – Ideal for repetitive, high-strength riveting tasks.
Why Choose the Z3500C?
The Z3500C Pneudraulic C-Yoke Squeezer is the perfect solution for professionals in aerospace, automotive, and industrial sectors who require precision, repeatability, and durability in riveting operations. With its pneudraulic force system and ergonomic C-yoke design, it ensures high-quality rivet installation with maximum efficiency.
Features
- High-quality, industrial-grade compression rivet squeezers for installing solid rivets.
- Compact size and lighter in weight compared to current pneumatic squeezers on the market.
- CONSTANT FORCE over the entire stroke range.
- Built from high-quality aircraft-grade materials and features held to close tolerances, for years of dependable operation.
- The reduction in weight and constant force decreases operator fatigue and improves the quality of every riveting work.
Commercial users of these Squeezers
AIRBUS, ALCOA, BARNES AEROSPACE, BEECHCRAFT, BOEING AIRCRAFT, CANADA NATIONAL DEFENCE, DELTA AIRLINES, GE AIRCRAFT ENGINES, HONDA AIRCRAFT, KOREAN AEROSPACE, LODE KING INDUSTRIES, MUSCO SPORTS LIGHTING, NORTHROP GRUMMAN, ORENDA AEROSPACE, ROLLS ROYCE – UK, ROLLS ROYCE – US, SCHILLING ROBOTICS, SPIRIT AEROSYSTEMS, UTC AEROSPACE SYSTEMS, U.S. ARMY, U.S AIR FORCE, Evergreen Aviation Precision Corp. (EGAP)

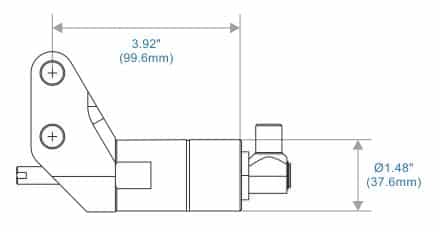

3.5K FORCE
Specification:
- Weight (no Yoke): 1.25(0.56) lb(Kg)
- Fluid Disp Required: 0.55(9) in³ (cc)
- Force At Normal Hyd Pressure: 3480(15.5) Lbf (KN)
- Hydraulic Pressure Normal: 3500(24.1) psi (MPa)
- Hydraulic Pressure MAX: 4500(31) psi (MPa)
- Rivet Set (compression Pin) Travel: 0.55(14) inch(mm)
ZPI-9009
Pneudraulic Intensifier
ZPI-11016
Pneudraulic Intensifier
F14G
Foot Pedal, Guarded
| HH18L | 6′(1.8m) Hydraulic Hose Set with coupler |
| HH24L | 8′(2.4m) Hydraulic Hose Set with coupler |
| HH30L | 10′(3m) Hydraulic Hose Set with coupler |
| H18L | 6′(1.8m) Hydraulic Hose Set |
| H24L | 8′(2.4m) Hydraulic Hose Set |
| H30L | 10′(3m) Hydraulic Hose Set |
* “C” yoke needs to be purchased separately
| Squeezer Model |
Rivet Capacity Diameter |
Fluid Disp Required in³ (cc) |
Force At Normal Hyd Pressure lbf(kN) |
Hydraulic Pressure | Rivet Set (compression Pin) Travel inch(mm) |
Weight (no Yoke) lbs(kgs) |
||
| Alum | Steel | Normal psi(MPa) |
MAX psi(MPa) |
|||||
| Z3000C | 1/8(3.2) | 3/32(2.4) | 0.39(6.4) | 2690(11.9) | 3500(24.1) | 4500(31) | 0.5(12.7) | 1.05(0.47) |
| Z3500C | 5/32(4) | 1/8(3.2) | 0.55(9) | 3480(15.5) | 3500(24.1) | 4500(31) | 0.55(14) | 1.25(0.56) |
| Z6000C | 3/16(4.8) | 5/32(4) | 0.97(15.9) | 6185(27.5) | 3500(24.1) | 4500(31) | 0.55(14) | 1.72(0.78) |
| Z9000C | 1/4(6.4) | 3/16(4.8) | 0.32(21.6) | 8420(37.4) | 3500(24.1) | 4500(31) | 0.55(14) | 2(0.91) |
| C-Yoke Squeezer System |
Contents included | |||||||
| Z3000CK-0 | Z3000C+ZPI-9009 3K SQUEEZER SYSTEM, W/O YOKE | |||||||
| Z3500CK-0 | Z3500C+ZPI-11016 3.5K SQUEEZER SYSTEM, W/O YOKE | |||||||
| Z6000CK-0 | Z6000C+ZPI-15047F 6K SQUEEZER SYSTEM, W/O YOKE | |||||||
| Z9000CK-0 | Z9000C+ZPI-15047F 9K SQUEEZER SYSTEM, W/O YOKE | |||||||
*All C-Squeezers accept industry standard CP-214 yokes. *All Squeezers accept rivet dies with 3/16″ (0.187″) shanks.

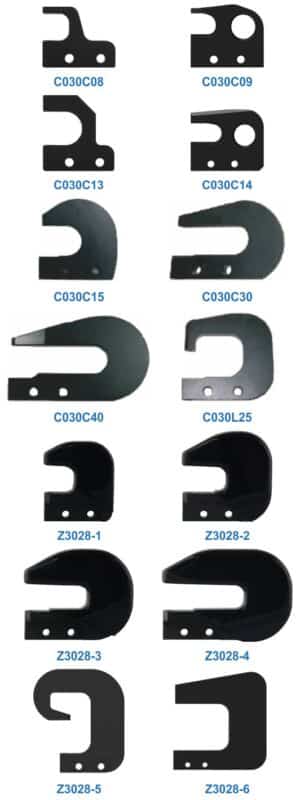

CP214 Compatible Yoke

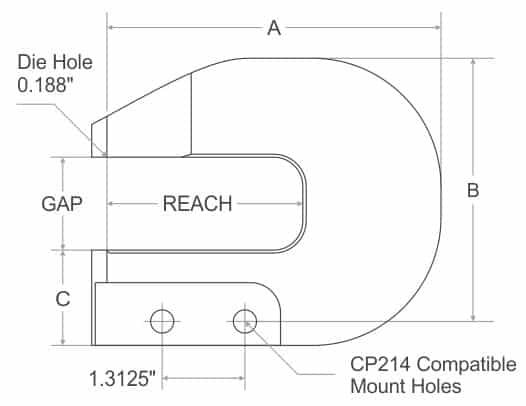

| Model | Reach | Gap | “A” | “B” | “C” | Thickness |
| C030C08 | 0.78″ | 1.1″ | 2.72″ | 2.16″ | 1.12″ | 0.57″ |
| C030C09 | 0.9″ | 1.02″ | 3.27″ | 2.69″ | 1.12″ | 0.75″ |
| C030C13 | 1.33″ | 1.41″ | 2.72″ | 2.87″ | 1.4″ | 0.57″ |
| C030C14 | 1.4″ | 1.02″ | 3.73″ | 3.02″ | 1.4″ | 0.75″ |
| C030C15 | 1.5″ | 1.25″ | 2.98″ | 3.39″ | 1.12″ | 0.57″ |
| C030C30 | 3″ | 1.25″ | 4.44″ | 3.29″ | 1.12″ | 0.57″ |
| C030C40 | 4″ | 1.25″ | 5.89″ | 3.76″ | 1.12″ | 1.83″ |
| C030L25 | 2.5″ | 1.25″ | 3.67″ | 3.98″ | 1.12″ | 0.57″ |
| Z3028-1 | 1.32″ | 1.5″ | 3.23″ | 3.72″ | 1.4″ | 1″ |
| Z3028-2 | 2.07″ | 1.5″ | 4.23″ | 4.22″ | 1.4″ | 1″ |
| Z3028-3 | 3.07″ | 1.5″ | 5.23″ | 4.22″ | 1.4″ | 1″ |
| Z3028-4 | 4.07″ | 1.5″ | 6.35″ | 4.22″ | 1.4″ | 1″ |
| Z3028-5 | 1.49″ | 1.92″ | 3.46″ | 5.68″ | 1.12″ | 1.18″ |
| Z3028-6 | 3.53″ | 3.93″ | 6.77″ | 7.09″ | 1.5″ | 1.38″ |
*Please confirm the length of the die holder when ordering.
