Z6000C – Pneudraulic C-Yoke Squeezer





The Z6000C Pneudraulic C-Yoke Squeezer is a precision pneumatic-hydraulic riveting tool designed to deliver robust and consistent compression for rivets, grommets, and fasteners. Its C-Yoke configuration provides excellent accessibility, making it ideal for aerospace, automotive, and industrial assembly applications where precision, repeatability, and operator comfort are essential.





Key Features





• C-Yoke Design – Offers easy access to tight and hard-to-reach areas.

• Pneudraulic Operation – Combines air and hydraulic power for consistent, high-force compression.

• Medium-Duty Compression – Suitable for rivets and fasteners requiring moderate force.

• Durable Construction – High-quality materials ensure long-lasting performance.

• Ergonomic Handle – Reduces operator fatigue during repetitive tasks.

• Precision Alignment – Guarantees accurate and uniform rivet installation.





Advantages & Benefits





• Reliable Force – Provides steady and repeatable compression for precision riveting.

• Enhanced Productivity – Efficient operation reduces cycle times and improves workflow.

• Operator Comfort – Ergonomic design minimizes strain during extended use.

• Durable & Robust – Built to withstand industrial environments and repeated use.

• Versatile Applications – Compatible with various rivet types and sizes.

• Cost-Effective Solution – Manual and pneumatic effort is minimized, reducing operator fatigue and energy consumption.





Applications





• Aerospace Assembly & Maintenance – Ideal for structural rivets and precise fastener installation.

• Automotive Industry – Suitable for body panels, chassis, and interior component riveting.

• Industrial Fabrication – Powers rivet installation in manufacturing and sheet metal operations.

• Shipbuilding & Rail Fabrication – Provides reliable compression in hard-to-access areas.

• Portable Field Operations – A compact and lightweight design allows for on-site use.





Why Choose the Z6000C?





The Z6000C Pneudraulic C-Yoke Squeezer delivers precision, power, and accessibility in a compact and ergonomic design. Its C-Yoke structure ensures operators can reach confined spaces while applying consistent, repeatable hydraulic force. Ideal for aerospace, automotive, and industrial applications, the Z6000C provides efficient, reliable, and accurate riveting, making it an essential tool for professionals seeking high performance with medium-duty applications.





Features





• High-quality, industrial-grade compression rivet squeezers for installing solid rivets.
• Compact size and lighter in weight compared to current pneumatic squeezers on the market.
• CONSTANT FORCE over the entire stroke range.
• Built from high-quality aircraft-grade materials and features held to close tolerances, for years of dependable operation.
• The reduction in weight and constant force decreases operator fatigue, improving the quality of every riveting work.





Commercial users of these Squeezers

AIRBUS, ALCOA, BARNES AEROSPACE, BEECHCRAFT, BOEING AIRCRAFT, CANADA NATIONAL DEFENCE, DELTA AIRLINES, GE AIRCRAFT ENGINES, HONDA AIRCRAFT, KOREAN AEROSPACE, LODE KING INDUSTRIES, MUSCO SPORTS LIGHTING, NORTHROP GRUMMAN, ORENDA AEROSPACE, ROLLS ROYCE – UK, ROLLS ROYCE – US, SCHILLING ROBOTICS, SPIRIT AEROSYSTEMS, UTC AEROSPACE SYSTEMS, U.S. ARMY, U.S AIR FORCE, Evergreen Aviation Precision Corp. (EGAP)

6K FORCE

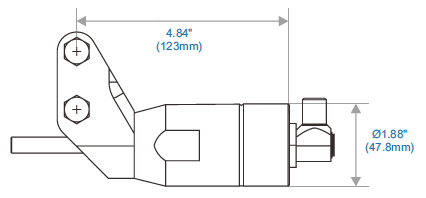

Specification:





• Weight (no Yoke): 1.72(0.78) lb(Kg)
• Fluid Disp Required: 0.97(15.9) in³ (cc)
• Force At Normal Hyd Pressure: 6185(27.5) Lbf (KN)
• Hydraulic Pressure Normal: 3500(24.1) psi (MPa)
• Hydraulic Pressure MAX: 4500(31) psi (MPa)
• Rivet Set (compression Pin) Travel: 0.55(14) inch(mm)





ZPI-15047F
Pneudraulic Intensifier





F14G
Foot Pedal, Guarded





HH18L	6′(1.8m) Hydraulic Hose Set with coupler
HH24L	8′(2.4m) Hydraulic Hose Set with coupler
HH30L	10′(3m) Hydraulic Hose Set with coupler
H18L	6′(1.8m) Hydraulic Hose Set
H24L	8′(2.4m) Hydraulic Hose Set
H30L	10′(3m) Hydraulic Hose Set





* “C” yoke needs to be purchased separately

Squeezer Model	Rivet Capacity Diameter		Fluid Disp Required in³ (cc)	Force At Normal Hyd Pressure lbf(kN)	Hydraulic Pressure		Rivet Set (compression Pin) Travel inch(mm)	Weight (no Yoke) lbs(kgs)
	Alum	Steel			Normal psi(MPa)	MAX psi(MPa)
Z3000C	1/8(3.2)	3/32(2.4)	0.39(6.4)	2690(11.9)	3500(24.1)	4500(31)	0.5(12.7)	1.05(0.47)
Z3500C	5/32(4)	1/8(3.2)	0.55(9)	3480(15.5)	3500(24.1)	4500(31)	0.55(14)	1.25(0.56)
Z6000C	3/16(4.8)	5/32(4)	0.97(15.9)	6185(27.5)	3500(24.1)	4500(31)	0.55(14)	1.72(0.78)
Z9000C	1/4(6.4)	3/16(4.8)	0.32(21.6)	8420(37.4)	3500(24.1)	4500(31)	0.55(14)	2(0.91)
C-Yoke Squeezer System		Contents included
Z3000CK-0		Z3000C+ZPI-9009 3K SQUEEZER SYSTEM, W/O YOKE
Z3500CK-0		Z3500C+ZPI-11016 3.5K SQUEEZER SYSTEM, W/O YOKE
Z6000CK-0		Z6000C+ZPI-15047F 6K SQUEEZER SYSTEM, W/O YOKE
Z9000CK-0		Z9000C+ZPI-15047F 9K SQUEEZER SYSTEM, W/O YOKE

*All C-Squeezers accept industry standard CP-214 yokes. *All Squeezers accept rivet dies with 3/16″ (0.187″) shanks.





CP214 Compatible Yoke









Model	Reach	Gap	“A”	“B”	“C”	Thickness
C030C08	0.78″	1.1″	2.72″	2.16″	1.12″	0.57″
C030C09	0.9″	1.02″	3.27″	2.69″	1.12″	0.75″
C030C13	1.33″	1.41″	2.72″	2.87″	1.4″	0.57″
C030C14	1.4″	1.02″	3.73″	3.02″	1.4″	0.75″
C030C15	1.5″	1.25″	2.98″	3.39″	1.12″	0.57″
C030C30	3″	1.25″	4.44″	3.29″	1.12″	0.57″
C030C40	4″	1.25″	5.89″	3.76″	1.12″	1.83″
C030L25	2.5″	1.25″	3.67″	3.98″	1.12″	0.57″
Z3028-1	1.32″	1.5″	3.23″	3.72″	1.4″	1″
Z3028-2	2.07″	1.5″	4.23″	4.22″	1.4″	1″
Z3028-3	3.07″	1.5″	5.23″	4.22″	1.4″	1″
Z3028-4	4.07″	1.5″	6.35″	4.22″	1.4″	1″
Z3028-5	1.49″	1.92″	3.46″	5.68″	1.12″	1.18″
Z3028-6	3.53″	3.93″	6.77″	7.09″	1.5″	1.38″

*Please confirm the length of the die holder when ordering.
