Z9000C Pneudraulic C-Yoke Squeezer

The Z9000C Pneudraulic C-Yoke Squeezer is a high-performance pneumatic-hydraulic riveting tool designed to deliver precise and powerful compression for rivets, grommets, and fasteners. Featuring a C-Yoke design, this squeezer provides maximum accessibility and control, making it ideal for aerospace, automotive, and industrial assembly where consistent and repeatable force is critical.

SKU: Z9000C Category: USA Made Pneudraulic C-Yoke / Alligator Squeezer Tags: C-Yoke Squeezer, Pneudraulic C -Yoke Squeezer

Description

Z9000C – Pneudraulic C-Yoke Squeezer

Key Features

C-Yoke Design – Allows excellent access in tight or awkward spaces.
Pneudraulic Operation – Combines air and hydraulic power for a strong and consistent squeezing force.
High Compression Capability – Ideal for medium to heavy-duty riveting applications.
Durable Construction – Built with high-strength materials for long-lasting reliability.
Ergonomic Handle – Minimizes operator fatigue during repetitive operations.
Precision Alignment – Ensures accurate and uniform rivet installation every time.

Advantages & Benefits

Powerful Hydraulic Force – Delivers stable and repeatable compression for precision riveting.
Enhanced Productivity – Faster cycle times improve overall efficiency.
Operator-Friendly – Ergonomic design reduces strain during prolonged use.
Durable & Reliable – Built for industrial environments and heavy-duty tasks.
Versatile Compatibility – Works with various rivet types and sizes.
Cost-Effective – Reduces manual effort and energy costs compared to traditional hydraulic tools.

Applications

Aerospace Manufacturing & Maintenance – Ideal for structural rivets and assembly tasks.
Automotive Assembly & Repair – Suitable for chassis, body panels, and interior rivets.
Industrial Fabrication – Powers rivet installation in metalworking and manufacturing.
Shipbuilding & Rail Construction – Provides reliable compression in tight or hard-to-reach areas.
Field Operations – Portable design allows use in on-site or remote environments.

Why Choose the Z9000C?

The Z9000C Pneudraulic C-Yoke Squeezer is engineered for precision, power, and accessibility. Its C-Yoke configuration allows operators to reach challenging locations while delivering consistent, repeatable hydraulic force. Perfect for aerospace, automotive, and industrial applications, the Z9000C ensures efficient, reliable, and accurate riveting, making it a must-have tool for professionals who demand high performance in demanding environments.

Features

High-quality, industrial-grade compression rivet squeezers for installing solid rivets.
Compact size and lighter in weight compared to current pneumatic squeezers on the market.
CONSTANT FORCE over the entire stroke range.
Built from high-quality aircraft-grade materials and features held to close tolerances, for years of dependable operation.
The reduction in weight and constant force decreases operator fatigue, improving the quality of every riveting work.

Commercial users of these Squeezers

AIRBUS, ALCOA, BARNES AEROSPACE, BEECHCRAFT, BOEING AIRCRAFT, CANADA NATIONAL DEFENCE, DELTA AIRLINES, GE AIRCRAFT ENGINES, HONDA AIRCRAFT, KOREAN AEROSPACE, LODE KING INDUSTRIES, MUSCO SPORTS LIGHTING, NORTHROP GRUMMAN, ORENDA AEROSPACE, ROLLS ROYCE – UK, ROLLS ROYCE – US, SCHILLING ROBOTICS, SPIRIT AEROSYSTEMS, UTC AEROSPACE SYSTEMS, U.S. ARMY, U.S AIR FORCE, Evergreen Aviation Precision Corp. (EGAP)

9K FORCE

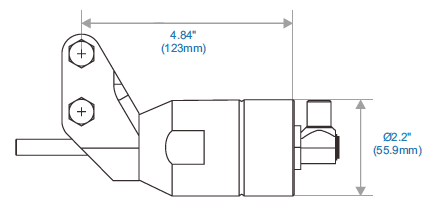

Specification:

Weight (no Yoke): 2(0.91) lb(Kg)
Fluid Disp Required: 0.32(21.6) in³ (cc)
Force At Normal Hyd Pressure: 8420(37.4) Lbf (KN)
Hydraulic Pressure Normal: 3500(24.1) psi (MPa)
Hydraulic Pressure MAX: 4500(31) psi (MPa)
Rivet Set (compression Pin) Travel: 0.55(14) inch(mm)

ZPI-15047F
Pneudraulic Intensifier

F14G
Foot Pedal, Guarded

HH18L	6′(1.8m) Hydraulic Hose Set with coupler
HH24L	8′(2.4m) Hydraulic Hose Set with coupler
HH30L	10′(3m) Hydraulic Hose Set with coupler
H18L	6′(1.8m) Hydraulic Hose Set
H24L	8′(2.4m) Hydraulic Hose Set
H30L	10′(3m) Hydraulic Hose Set

* “C” yoke needs to be purchased separately

Squeezer Model	Rivet Capacity Diameter		Fluid Disp Required in³ (cc)	Force At Normal Hyd Pressure lbf(kN)	Hydraulic Pressure		Rivet Set (compression Pin) Travel inch(mm)	Weight (no Yoke) lbs(kgs)
Squeezer Model	Alum	Steel	Fluid Disp Required in³ (cc)	Force At Normal Hyd Pressure lbf(kN)	Normal psi(MPa)	MAX psi(MPa)	Rivet Set (compression Pin) Travel inch(mm)	Weight (no Yoke) lbs(kgs)
Z3000C	1/8(3.2)	3/32(2.4)	0.39(6.4)	2690(11.9)	3500(24.1)	4500(31)	0.5(12.7)	1.05(0.47)
Z3500C	5/32(4)	1/8(3.2)	0.55(9)	3480(15.5)	3500(24.1)	4500(31)	0.55(14)	1.25(0.56)
Z6000C	3/16(4.8)	5/32(4)	0.97(15.9)	6185(27.5)	3500(24.1)	4500(31)	0.55(14)	1.72(0.78)
Z9000C	1/4(6.4)	3/16(4.8)	0.32(21.6)	8420(37.4)	3500(24.1)	4500(31)	0.55(14)	2(0.91)
C-Yoke Squeezer System		Contents included
Z3000CK-0		Z3000C+ZPI-9009 3K SQUEEZER SYSTEM, W/O YOKE
Z3500CK-0		Z3500C+ZPI-11016 3.5K SQUEEZER SYSTEM, W/O YOKE
Z6000CK-0		Z6000C+ZPI-15047F 6K SQUEEZER SYSTEM, W/O YOKE
Z9000CK-0		Z9000C+ZPI-15047F 9K SQUEEZER SYSTEM, W/O YOKE

*All C-Squeezers accept industry standard CP-214 yokes. *All Squeezers accept rivet dies with 3/16″ (0.187″) shanks.

CP214 Compatible Yoke

Model	Reach	Gap	“A”	“B”	“C”	Thickness
C030C08	0.78″	1.1″	2.72″	2.16″	1.12″	0.57″
C030C09	0.9″	1.02″	3.27″	2.69″	1.12″	0.75″
C030C13	1.33″	1.41″	2.72″	2.87″	1.4″	0.57″
C030C14	1.4″	1.02″	3.73″	3.02″	1.4″	0.75″
C030C15	1.5″	1.25″	2.98″	3.39″	1.12″	0.57″
C030C30	3″	1.25″	4.44″	3.29″	1.12″	0.57″
C030C40	4″	1.25″	5.89″	3.76″	1.12″	1.83″
C030L25	2.5″	1.25″	3.67″	3.98″	1.12″	0.57″
Z3028-1	1.32″	1.5″	3.23″	3.72″	1.4″	1″
Z3028-2	2.07″	1.5″	4.23″	4.22″	1.4″	1″
Z3028-3	3.07″	1.5″	5.23″	4.22″	1.4″	1″
Z3028-4	4.07″	1.5″	6.35″	4.22″	1.4″	1″
Z3028-5	1.49″	1.92″	3.46″	5.68″	1.12″	1.18″
Z3028-6	3.53″	3.93″	6.77″	7.09″	1.5″	1.38″
