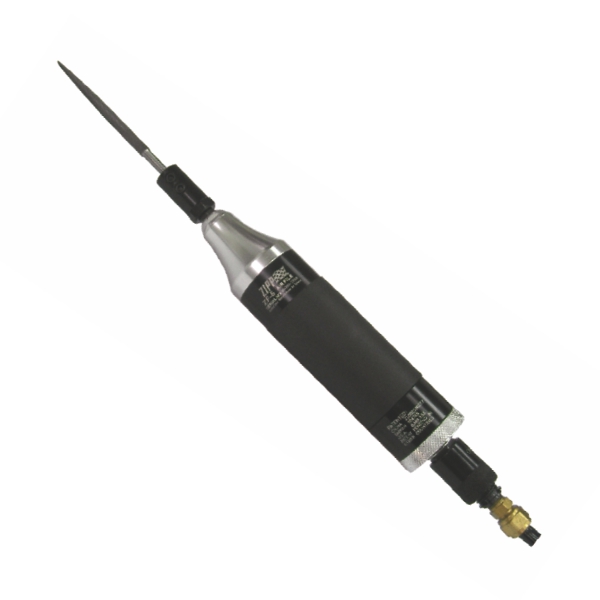

ZF-5 Low Vibration Air File – Precision and Comfort for Professional Applications
The ZF-5 Low Vibration Air File is a high-performance tool for precision filing, deburring, and finishing tasks. It features advanced low-vibration technology and ensures superior control, safety, and operator comfort, making it an indispensable asset for industrial, automotive, and maintenance professionals.
Key Features:
- Compact and Lightweight
- Optimized for maneuverability in tight spaces and intricate work.
- Lightweight design reduces operator fatigue during extended use.
- Low Vibration Operation
- Integrated technology minimizes hand-arm vibration, enhancing comfort.
- Reduces the risk of operator fatigue and long-term strain injuries.
- Ergonomic Design
- Easy-to-grip handle for superior control and accuracy.
- Provides a stable grip for precision filing tasks.
- Durable Construction
- Built from high-quality materials for prolonged service life.
- Stands up to demanding industrial and workshop environments.
- Versatile Application
- Suitable for a wide range of materials, including metals, plastics, and wood.
Specifications:
- Stroke Length: Designed for efficient and accurate filing.
- Vibration Level: Engineered for low vibration to ensure operator safety and precision.
- Weight: Lightweight for effortless handling.
- Applications: Compatible with various materials and filing tasks.
Applications:
- Metalworking
- Perfect for edge finishing, deburring, and intricate filing.
- Automotive Industry
- It is ideal for bodywork detailing, panel shaping, and surface preparation.
- Woodworking
- Effective for shaping, smoothing, and fine detailing on wood surfaces.
- Plastic Finishing
- Precision filing for plastic components and moldings.
- Maintenance and Repair
- Excellent for light-duty repair and maintenance tasks.
Why Choose the ZF-5 Low Vibration Air File?
The ZF-5 combines efficiency, durability, and operator comfort into one compact tool. Its low-vibration technology and ergonomic design ensure smooth and precise performance, while its versatility makes it suitable for various applications.
Elevate your craftsmanship and productivity with the ZF-5 Low Vibration Air File — a must-have for professionals seeking quality and reliability in precision tools.
Features
- High frequency with 1mm, 5mm & 10mm strokes for various surface finishing works such as precise and delicate die & mold surface lapping, finishing in confined areas, and general filing works.
- Designed with the following patents to ensure extremely low vibration and operator’s comfort.
。Portable Pneumatic Tool assembled with module units.
。Suspension Vibration-Reducing means for portable pneumatic tools. - Throttle-type flexible hose equipped for the best maneuverability of the tool.
- Adjustable side exhaust directs air away from operators.
- Rubber sleeve designed for operator’s comfort.
- Operating Module
- Rubber Sleeve
- Suspension Damping Spring
- Directional Air Exhaust
- Rotary Switch
- Air Inlet Module
All rotary-type Switches can be converted to safety lever-type Switches upon request.
Features
- It is ideal for precise and delicate filing castings, lapping die, and mold surfaces.
- High frequency with 0.5~1mm stroke for ZF-1, ZF-1T, ZF-1M, ZF-1MT
- High frequency with 3~5mm stroke for ZF-5, ZF-5T, ZF-5, ZF-5T
- High frequency with 7~10mm stroke for ZF-10, ZF-10T, ZF-10M, ZF-10MT
Specification:
- Blows Per Minute: 11000 bpm
- Stroke Length: 3~5 mm
- Avg. Air Cons.: 2.82(80) cfm(l/min)
- Net Weight: 1.54(0.7) lbs(kgs)
- Air Inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Vibration: 3.6 m/s2
- Sound Pressure: 83 dB(A)
Regular File For ZF-5, ZF-5T, ZF-5, ZF-5T, ZF-10, ZF-10T, ZF-10M, ZF-10MT Type Air File, 5mm Shank Diameter
325901
Rectangular File
325902
Round File
325903
Half Round File
325904
Triangular File
Hard Sponge Sandpaper block
- SB120-5 #120 100mm x 70mm x 25mm
- SB180-5 #180 100mm x 70mm x 25mm
- SB220-5 #220 100mm x 70mm x 25mm
- SB280-5 #280 100mm x 70mm x 25mm
COMPARISON CHARTS WITH COMPETITIVE DESIGNS ARE AVAILABLE UPON REQUEST.
| Model | Blows Per Minute bpm | Stroke Length mm | Avg. Air Cons. cfm(l/min) | Net Weight lbs(kgs) | Air Inlet Size inch-NPT/PT | Minch Hose Size inch(mm) | Vibration m/s² | Sound Pressure dB(A) |
| ZF-1 | 21000 | 0.5~1 | 4(120) | 1.26(0.57) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-1T | 21000 | 0.5~1 | 4(120) | 1.26(0.57) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-5 | 11000 | 3~5 | 2.82(80) | 1.54(0.7) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-5T | 11000 | 3~5 | 2.82(80) | 1.54(0.7) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-10 | 9000 | 7~10 | 3.89(110) | 1.65(0.75) | 1/4 | 3/8(10) | 4.6 | 71 |
| ZF-10T | 9000 | 7~10 | 3.89(110) | 1.65(0.75) | 1/4 | 3/8(10) | 4.6 | 71 |
| ZF-1M | 21000 | 0.5~1 | 4(120) | 0.73(0.33) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-1MT | 21000 | 0.5~1 | 4(120) | 0.73(0.33) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-5M | 11000 | 3~5 | 2.82(80) | 0.73(0.33) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-5T | 11000 | 3~5 | 2.82(80) | 0.73(0.33) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-10M | 9000 | 7~10 | 3.89(110) | 0.73(0.33) | 1/4 | 3/8(10) | 4.6 | 71 |
| ZF-10MT | 9000 | 7~10 | 3.89(110) | 0.73(0.33) | 1/4 | 3/8(10) | 4.6 | 71 |
*Operating Air Pressure: 90psi/6.2bar
