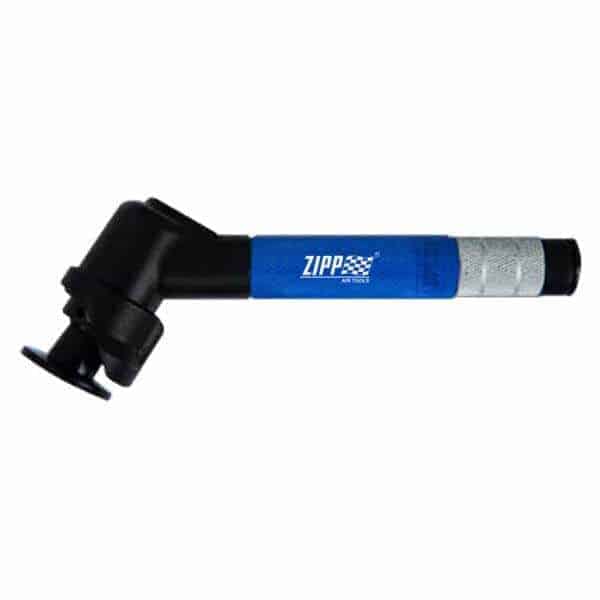

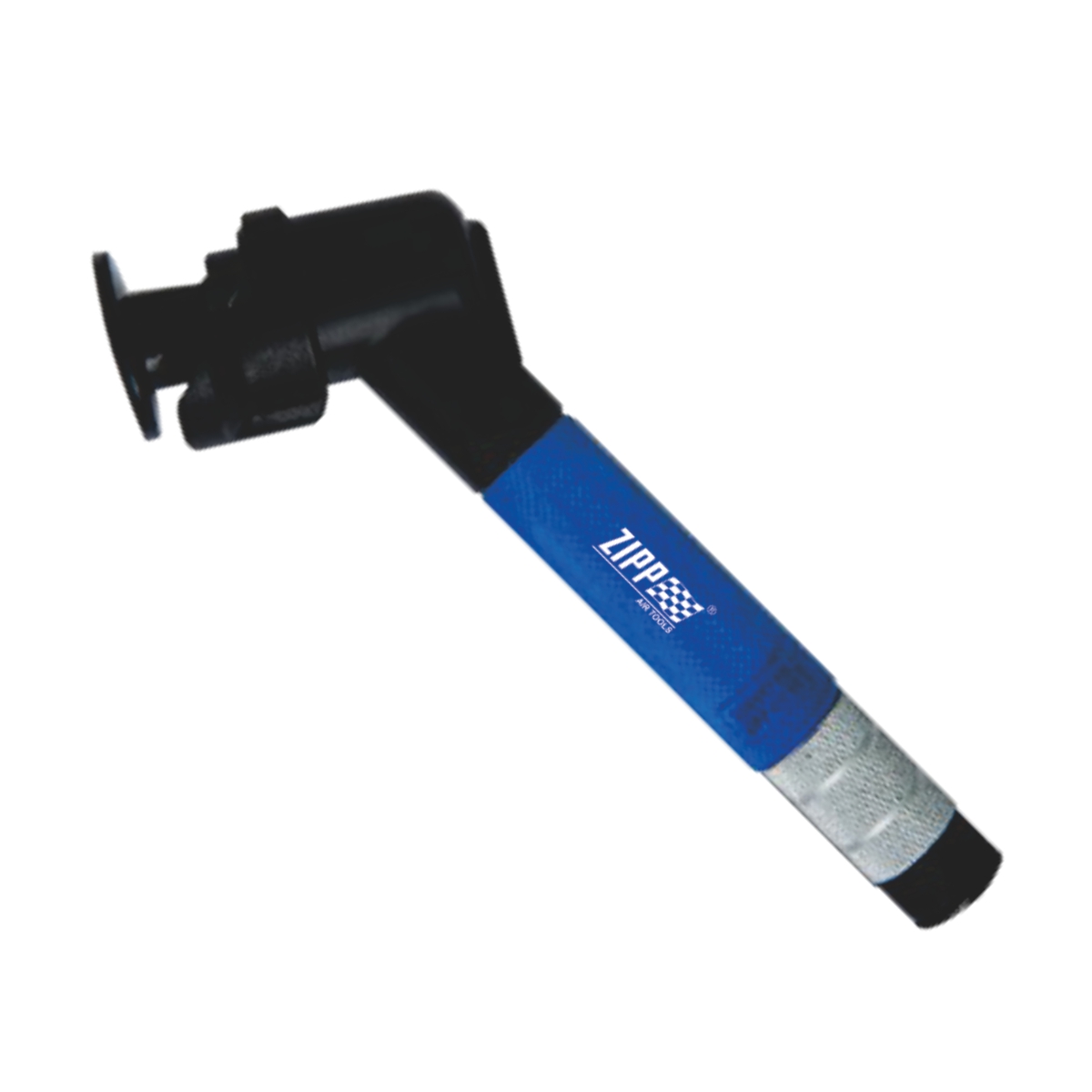

ZPD323 – 120° Air Micro Grinder
The ZPD323 is a precision-engineered air micro grinder with a 120° angled head, designed for accessing tight and hard-to-reach areas. It delivers controlled high-speed grinding performance in a compact, lightweight package—ideal for delicate materials or confined spaces.
Specifications
| Feature | Details |
|---|---|
| Collet Size | 3 mm |
| Free Speed | 22,000 RPM |
| Air Inlet Size | ¼″ NPT/PT |
| Operating Air Pressure | 6 kg/cm² (≈ 85 psi) |
| Air Consumption | 240 L/min (≈ 8.5 CFM) |
| Net Weight | 0.355 kg (~0.78 lbs) |
| Tool Length | 140 mm |
| Hose Length | 1,500 mm |
| Exhaust System | Rear-mounted |
Advantages & Benefits
-
Excellent Access: The 120° angled head provides superior reach into deep, narrow, or awkward spaces that straight or right-angle micro grinders cannot access.
-
Compact & Lightweight: At just 0.355 kg and with a slim profile, it offers exceptional maneuverability and reduced operator fatigue.
-
High-Speed Precision: Operates at 22,000 RPM for fine material removal, contouring, and finishing with control.
-
Rear Exhaust Design: Diverts airflow away from the operator’s hand for cleaner work and improved comfort.
Applications
-
Aerospace & Mold Work: Perfect for fine detailing in recessed or internal areas.
-
Automotive Repair: Ideal for working in engine bays or tight body panel spaces.
-
General Fabrication: Excellent for fine adjustments, deburring, or finishing within compact assemblies.
Why Choose the ZPD323?
If you need precision grinding combined with excellent access, the ZPD323 120° Air Micro Grinder delivers unmatched performance. Its angled design, high speed, and lightweight feel make it especially suited for professional tasks that require control in tight spaces.
Specification:
- Collet Size: 3mm
- Free Speed: 22000 rpm
- Air Inlet Size: 1/4 inch-NPT/PT
- Air Pressure: 6 kg(cm²)
- Air Cons.: 240 L/min
- Net Weight: 0.355 kg
- Tool Length: 140 mm
- Hose Length: 1500 mm
- Exhaust System: Rear
| Model | Free Speed rpm |
Collet Size inch(mm) |
Air Inlet Size inch-NPT/PT |
Air Pressure kg(cm²) |
Air Cons. l/min |
Net Weight kg |
Tool Dimension mm |
Tool Length mm |
Hose Length mm |
Exhaust System |
| ZPD327 | 30000 | 1/4(6) | 1/4 | 6 | 300 | 0.3 | 26.5 | 150 | 1500 | Rear |
| ZPD212 | 60000 | 1/8(3) | 1/4 | 6 | 180 | 0.24 | 17 | 140 | 1500 | Rear |

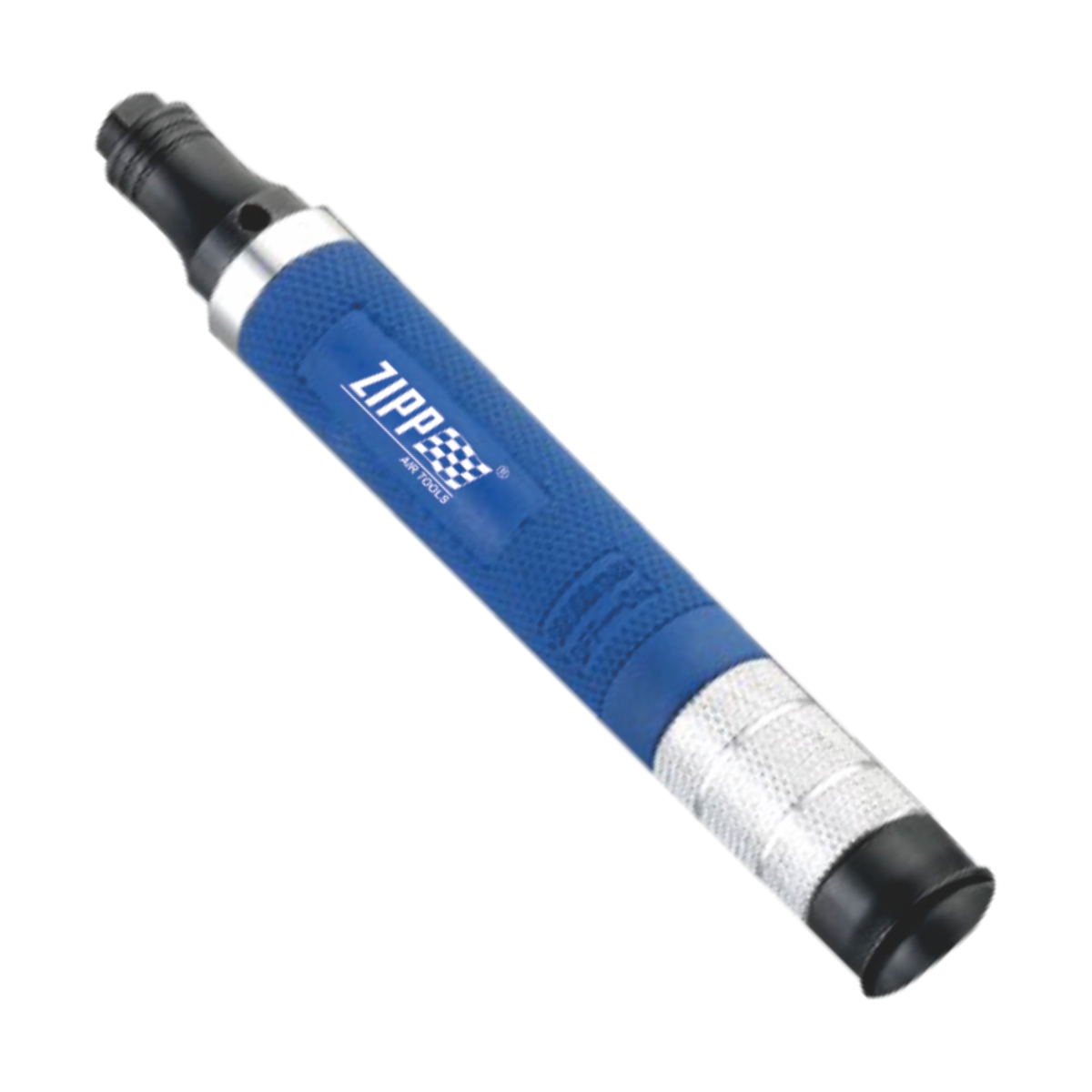

| ZPD312 | 60000 | 3mm | 1/4 | 6 | 180 | 0.24 | 18 | 125 | 1500 | Rear |
| ZPD412 | 70000 | 1/8(3) | 1/4 | 6 | 180 | 0.13 | 17 | 140 | 1500 | Rear |

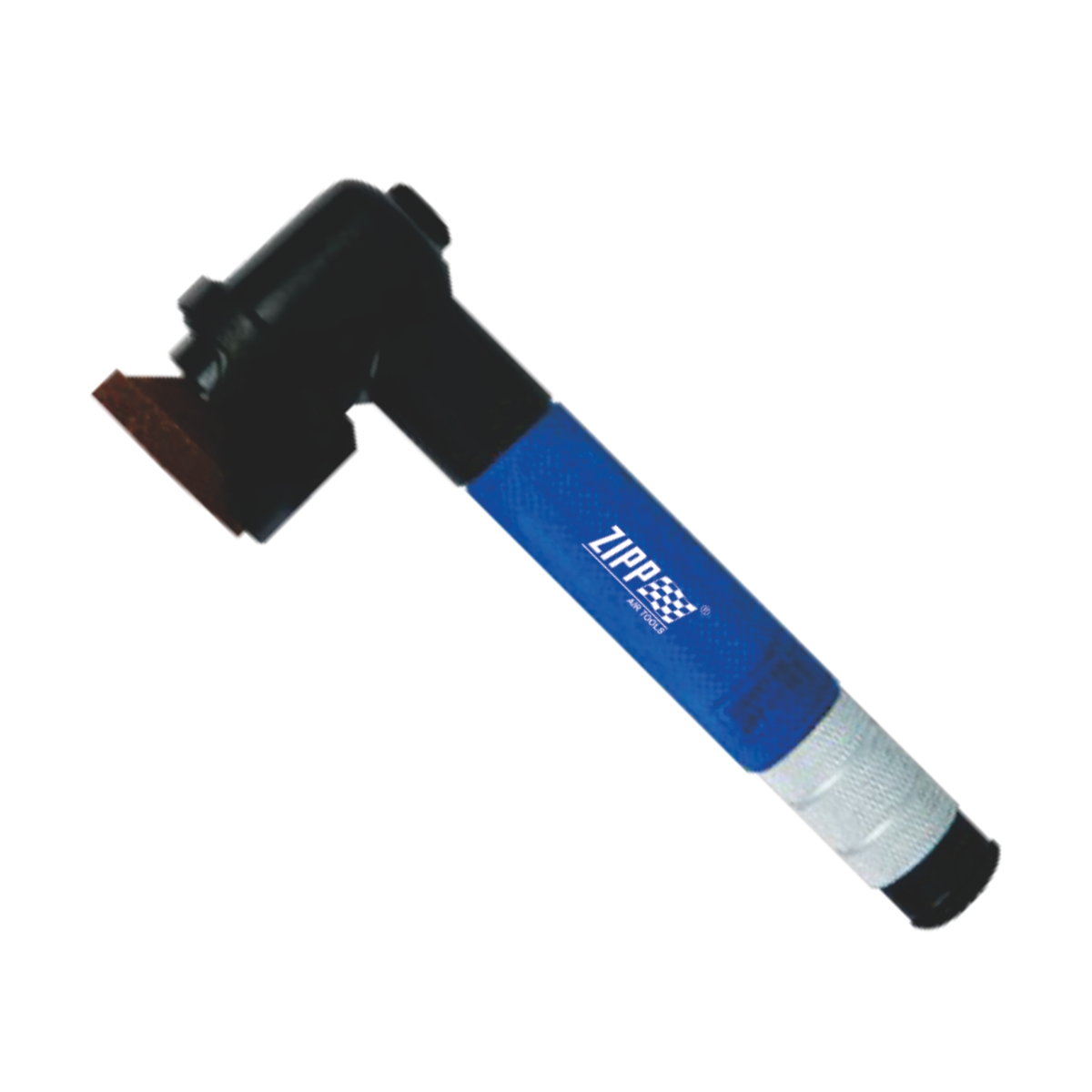

| ZPD322 | 22000 | 3mm | 1/4 | 6 | 240 | 0.345 | – | 140 | 1500 | Rear |
| ZPD323 | 22000 | 3mm | 1/4 | 6 | 240 | 0.355 | – | 140 | 1500 | Rear |
