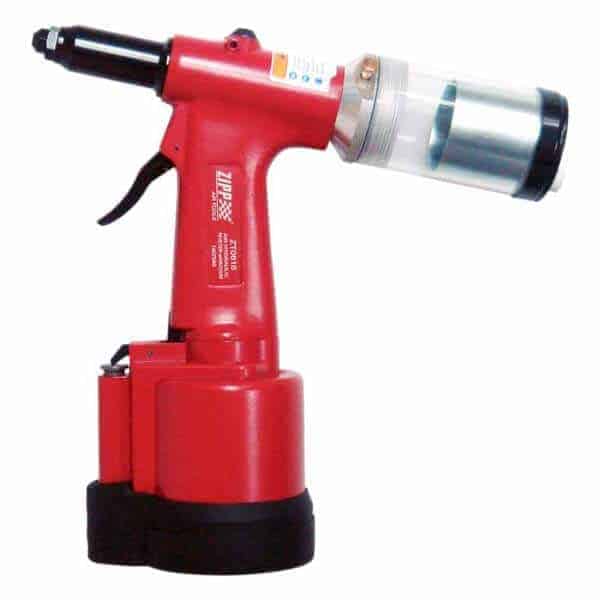

ZT0616 – 5/32 Inch Air Hydraulic Riveter
Compact & Reliable Riveting for Light-Duty Applications
The ZT0616 5/32 inch Air Hydraulic Riveter is a professional-grade pneumatic tool designed for light-duty riveting tasks where precision, consistency, and comfort are essential. Featuring an air-hydraulic mechanism, it ensures a stable pulling force and quick riveting cycles, making it a dependable tool for assembly lines, repair shops, and maintenance operations.
Key Features
-
5/32 Inch Rivet Capacity – Ideal for small blind rivets commonly used in electronics, automotive, HVAC, and light metal fabrication.
-
Air-Hydraulic System – Provides smooth and efficient riveting performance.
-
Lightweight & Ergonomic – The compact size reduces fatigue, making it perfect for extended use.
-
Durable Alloy Housing – Built for long service life and heavy-duty workshop environments.
-
Fast & Efficient Operation – Increases productivity with quick cycle times.
-
Low Vibration Design – Enhances comfort and control during riveting.
Technical Specifications
-
Model: ZT0616
-
Rivet Capacity: Up to 5/32 inch (4.0 mm) blind rivets
-
Tool Type: Air Hydraulic Riveter
-
Pulling Force: Optimized for light-duty fastening
-
Air Pressure Requirement: Standard workshop air supply
-
Body Material: Heavy-duty alloy construction with ergonomic grip
-
Weight: Lightweight for improved handling
Benefits
Consistent Performance – Every rivet is securely fastened.
Operator Comfort – Compact, lightweight, and easy to maneuver.
Long-Lasting Durability – Built with high-strength materials.
Productivity Boost – Fast operation saves time in assembly and repair work.
Adaptability – Suited for a variety of industries and applications.
Applications
-
Electronics & Appliance Manufacturing – Small panel fastening.
-
Automotive Repairs & Maintenance – Ideal for trim and light panel riveting.
-
HVAC Assembly – Ducting and ventilation work.
-
Light Metal Fabrication – Perfect for thin sheet metal assemblies.
-
General Industrial Use – Suitable for repair shops and service stations.
ZT0616 vs. ZT0616V
The ZT0616 is the standard model, delivering dependable riveting performance, while the ZT0616V offers enhanced ergonomic design and operator comfort for extended usage. Both provide the same riveting capacity but cater to different operator needs.
Max. 4.0mm standard & structural blind rivet in all materials
Features
- Stronger Traction Power.
- Good Balance To Minimum Operator Fatigue.
- Trigger Is Comfortably Operated in Any Direction.
- Screw plug is easy to refill with oil.
- Forged Aluminum Alloy For Strong Hydraulic Section.
Specification:
- Traction Power: 1500(700) lbf(kgf)
- Stroke Length: 5/8(16) inch(mm)
- Net Weight: 3(1.4) Ibs(kgs)
- Operating Air Pressure: 90(6.2) PSI(bar)
- Min. Hose Size: 3/8(10) inch(mm)
- Sound Pressure: 79 dBA
- Vibration: <2.5 m/s2
- Nosepieces Equipped: 3/32(2.4)1/8(3.2) 5/32(4.0) all material inch(mm)
| Model | Traction Power lbf(kgf) |
Stroke Length inch(mm) |
Net Weight lbs(kgs) |
Operating Air Pressure psi(bar) |
Min. Hose Size inch(mm) |
Sound Pressure dB(A) |
Vibration m/s² |
Nosepieces Equipped inch(mm) |
| ZT0616 | 1300(600) | 5/8(16) | 3(1.4) | 90(6.2) | 3/8(10) | 79 | <2.5 | 3/32(2.4)1/8(3.2) 5/32(4.0) all material |
| ZT0616V | 1500(700) | 5/8(16) | 3(1.4) | 90(6.2) | 3/8(10) | 79 | <2.5 | 3/32(2.4)1/8(3.2) 5/32(4.0) all material |
